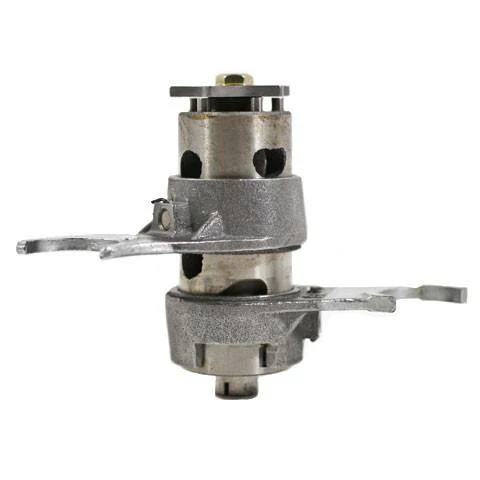

Gear Shifting Fork and Drum Assembly for Kazuma Falcon and Baby Falcon 100cc and 110cc.

Type A

• Overall Length: 95.66mm (3.76 in) includes bolt head
• Diameter of drum: 34mm (1.34 in)

• This shift fork is for 3 speed semi auto with reverse transmissions
• 3 down - 1 up
• The prongs under star are 4.8mm tall
• Star width: 36.85mm
• Hole that goes thru drum has circle on both sides.
• Width of fork closest to star end: 21.5mm
• Width of fork farthest from star end: 21.5mm
• Fork farthest from star end has notch. Width of fork at notch: 13.5mm
• Length of notch: 19mm
• Thread end ID: 5.4mm
• Threaded end shaft OD: 12.8mm
