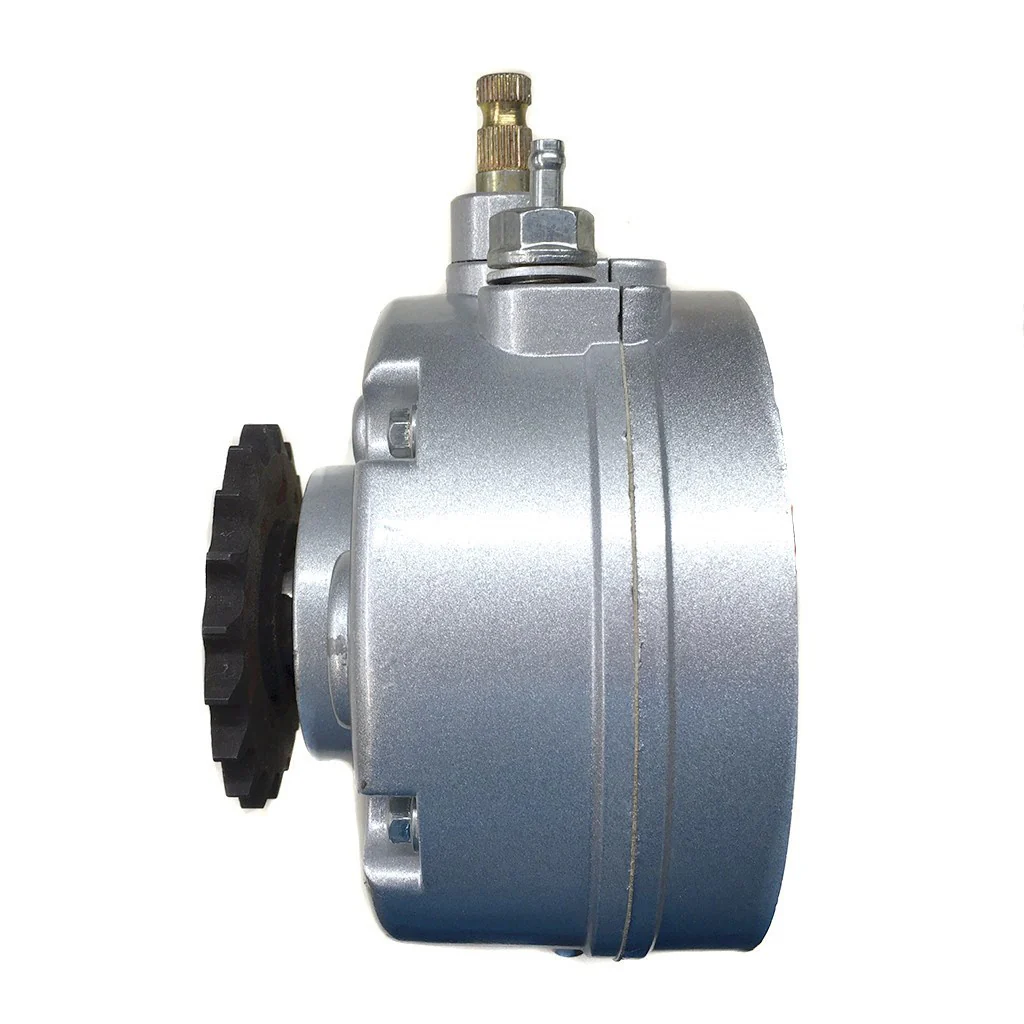

Reverse Gear Box for Hensim 150cc ATV Go-Kart
Reverse Gear box Hensim GY6 150cc ATV, Go-Kart Quad engine.
Gearbox details:
- 19 tooth large gear.
- 19 splines on shaft opening.
- OD of gearbox: 134mm (5.2725 in)
- Mounting distance: 85mm center to center
- Center hole on back side opposite sprocket - ID: 20.6mm (0.812 in)
- Shifter rod OD: 10.85mm
- Shifter rod: 29 spline
- Shifter rod length: 23.65mm
- Hose nipple OD: 6.65mm
- Sprocket OD: 81.5mm
- Needle bearing ID: 17.5mm
Reverse Gear box Hensim GY6 150cc ATV, Go-Kart Quad engine.
Gearbox details:
- 19 tooth large gear.
- 19 splines on shaft opening.
- OD of gearbox: 134mm (5.2725 in)
- Mounting distance: 85mm center to center
- Center hole on back side opposite sprocket - ID: 20.6mm (0.812 in)
- Shifter rod OD: 10.85mm
- Shifter rod: 29 spline
- Shifter rod length: 23.65mm
- Hose nipple OD: 6.65mm
- Sprocket OD: 81.5mm
- Needle bearing ID: 17.5mm
$295.90
Reverse Gear Box for Hensim 150cc ATV Go-Kart—
$295.90
Description
Reverse Gear box Hensim GY6 150cc ATV, Go-Kart Quad engine.
Gearbox details:
- 19 tooth large gear.
- 19 splines on shaft opening.
- OD of gearbox: 134mm (5.2725 in)
- Mounting distance: 85mm center to center
- Center hole on back side opposite sprocket - ID: 20.6mm (0.812 in)
- Shifter rod OD: 10.85mm
- Shifter rod: 29 spline
- Shifter rod length: 23.65mm
- Hose nipple OD: 6.65mm
- Sprocket OD: 81.5mm
- Needle bearing ID: 17.5mm
