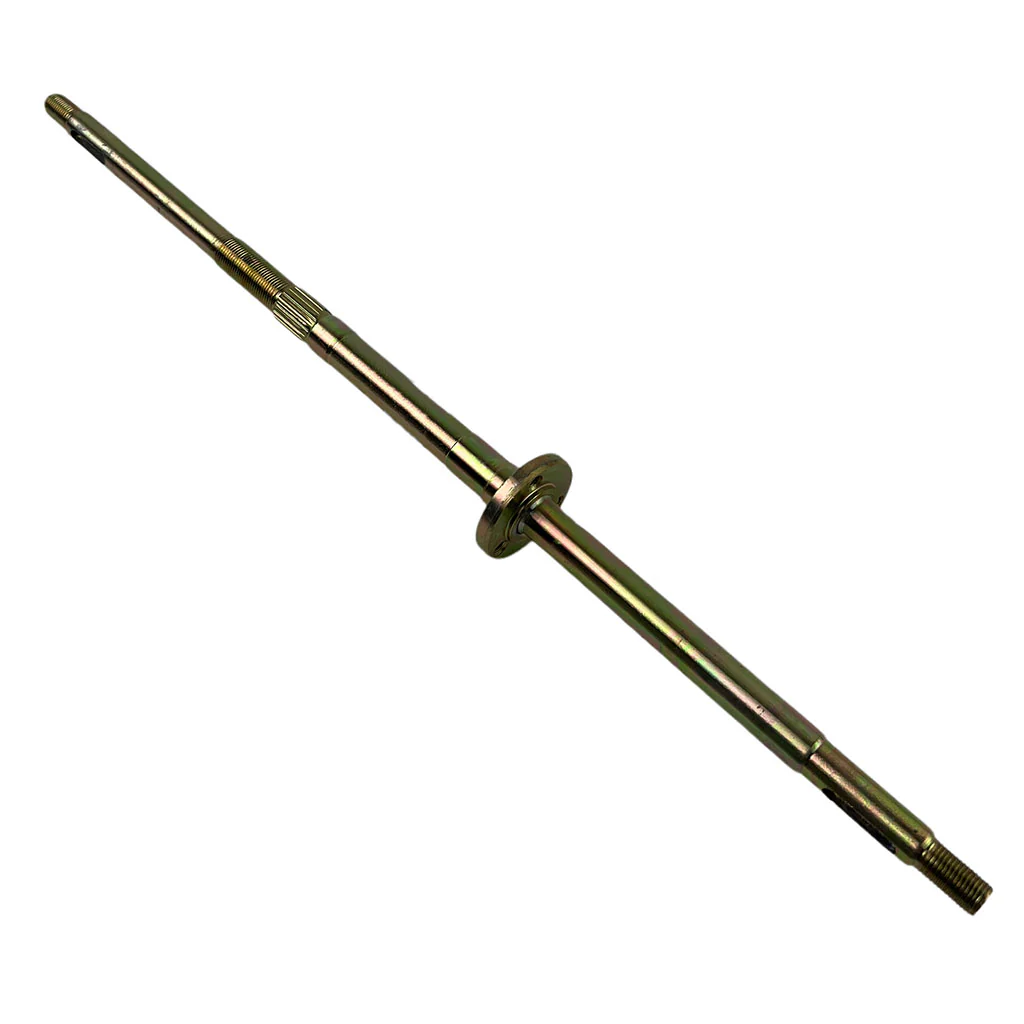

Rear Axle for Tao Tao Electric ATVs

This axle fits the E1/E2/E3 - 350/500 series of small kid's electric atvs.  The original axles we initially received did not have a flange in the middle.  All the ones we have received since, do.  I would imagine that the flanged axles and the non-flanged axles are not interchangeable, but I'm not sure. It does not fit the ROVER 500.

Axle information:

• Length: 56.9cm (22.40 in)

• 14mm x 1.50 threaded ends
• 3-bolt flange threaded 6mm*1.00
• Single 19 spline section on long side of axle (from flange)

• 19mm diameter in middle of axle
• 16mm diameter at ends
• Key slots at both ends

Shipping details:

Do you need your axle fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.   Buy now!
