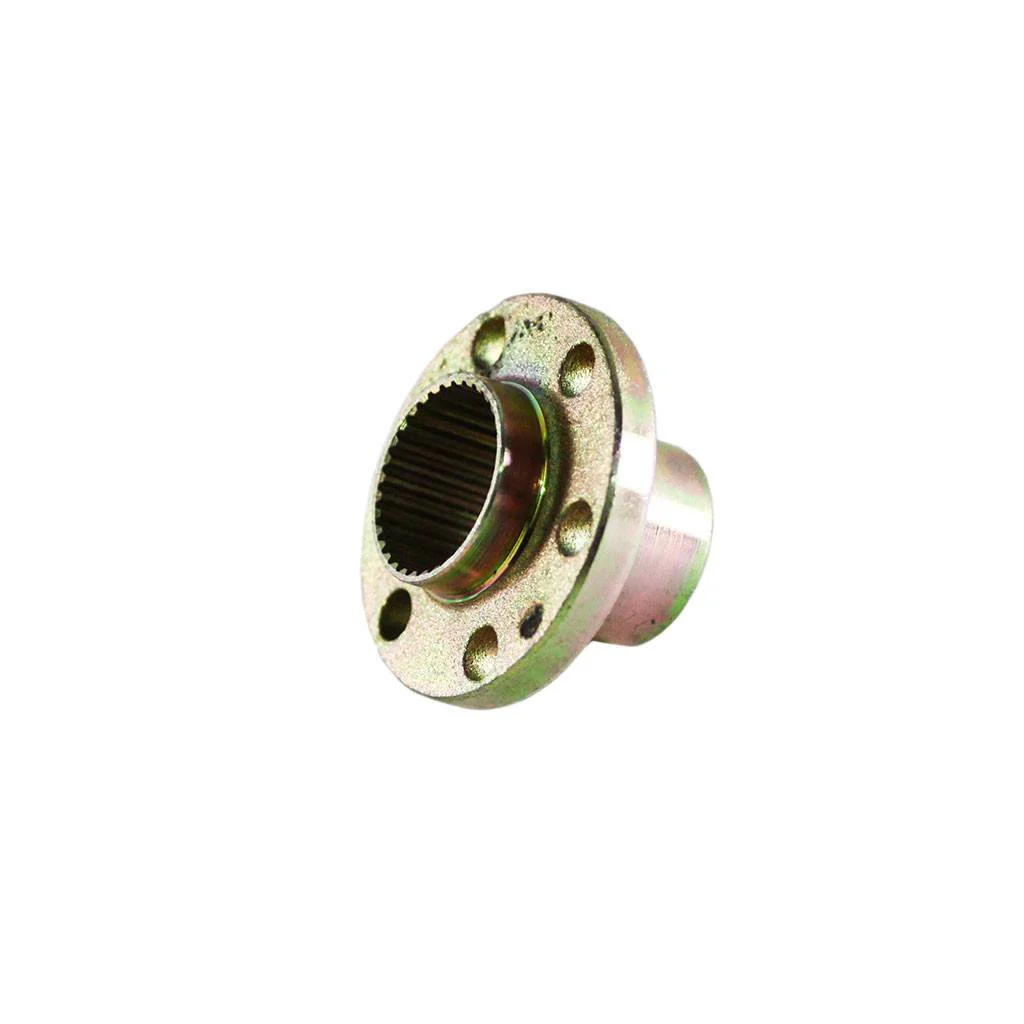

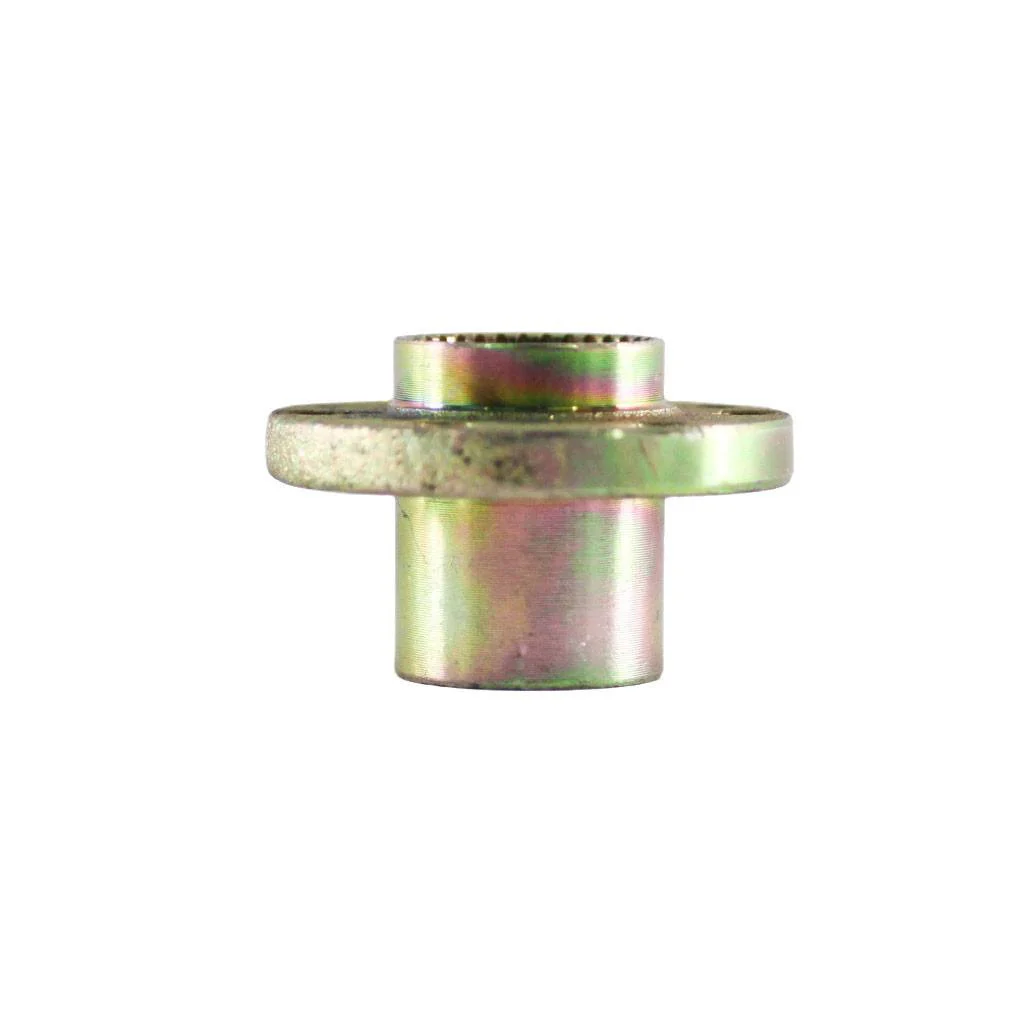

Rear Axle Sprocket or Brake Disc Rotor Hub - 6-Hole - 32 Spline

This rear sprocket hub is used on several makes and models of Chinese atvs. The best way to insure you are ordering the correct part is to use our detail pictures and measurements.  Please be sure to check both before ordering.

Hub details:

• 6 mounting holes
• Distance between holes: 28mm (1.1 in) center-to-center
• 32 splines
• Center hole diameter: 32.2mm (1.27 in)

• Bolt hole diameter: 9mm (0.34 in)

• Outside diameter of ring with bolt holes: 70mm (2.76 in)

• Length: 45mm (1.78 in)

• Used to secure disc to axle.
• 12994A1676


Know to fit Tao Tao ATA125F1, ATA150B, ATA150D, ATA150G, Bull 150, ATA250D and the Rhino 250.  Fits all Tao Tao 150cc and 250cc ATVs.

Fits the ATK125A, Jeep Auto and Triton 125 go-karts.
