Chinese 18 Coil Stator Magneto for 300cc Engines.

Version 28

This Chinese stator magneto is the replacement part for many 4-stroke Chinese  ATVs, Go Karts and Scooters.  The stator recharges the battery while the machine is in use, like an alternator in a car.  This stator fits 250c, 260cc and 300cc models.

Stator description:

• 18 coil

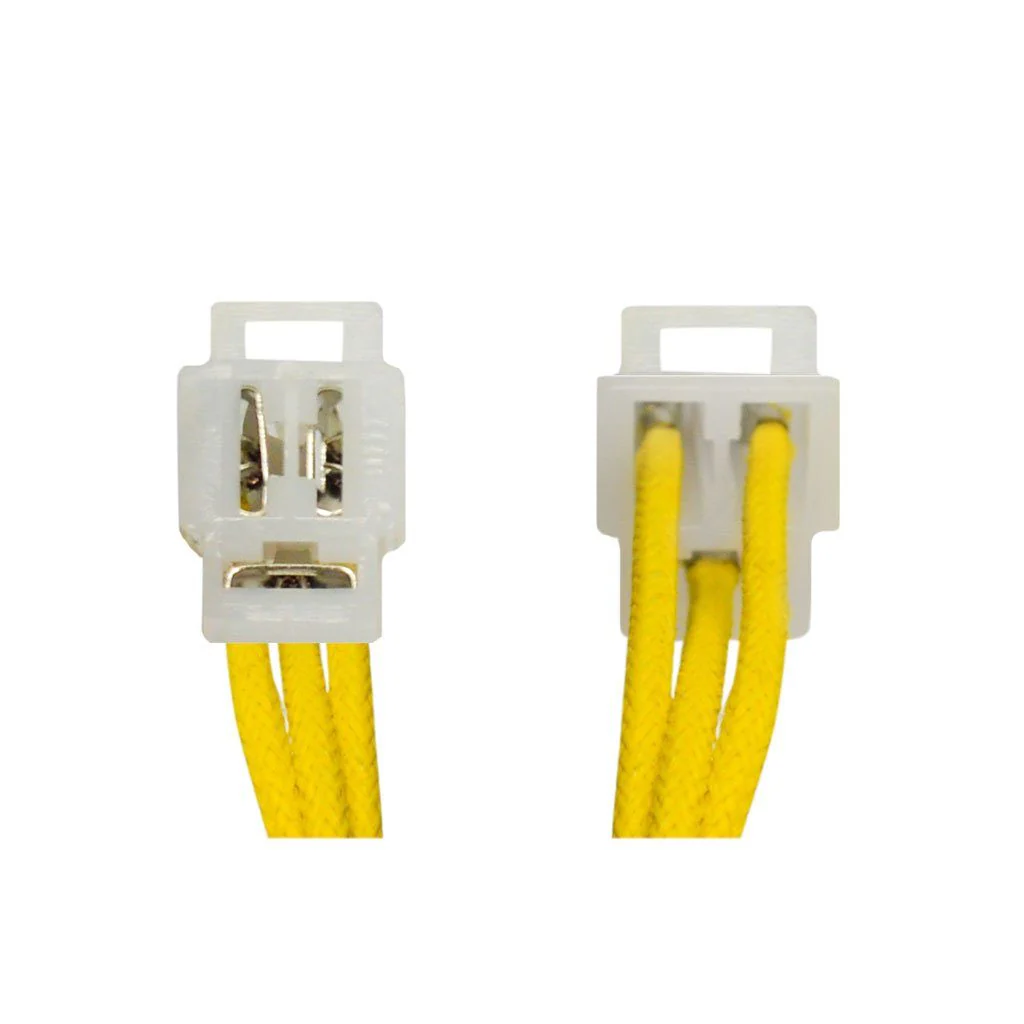

• 3 wires from stator to one plug: 55cm (21.65 in) overall length

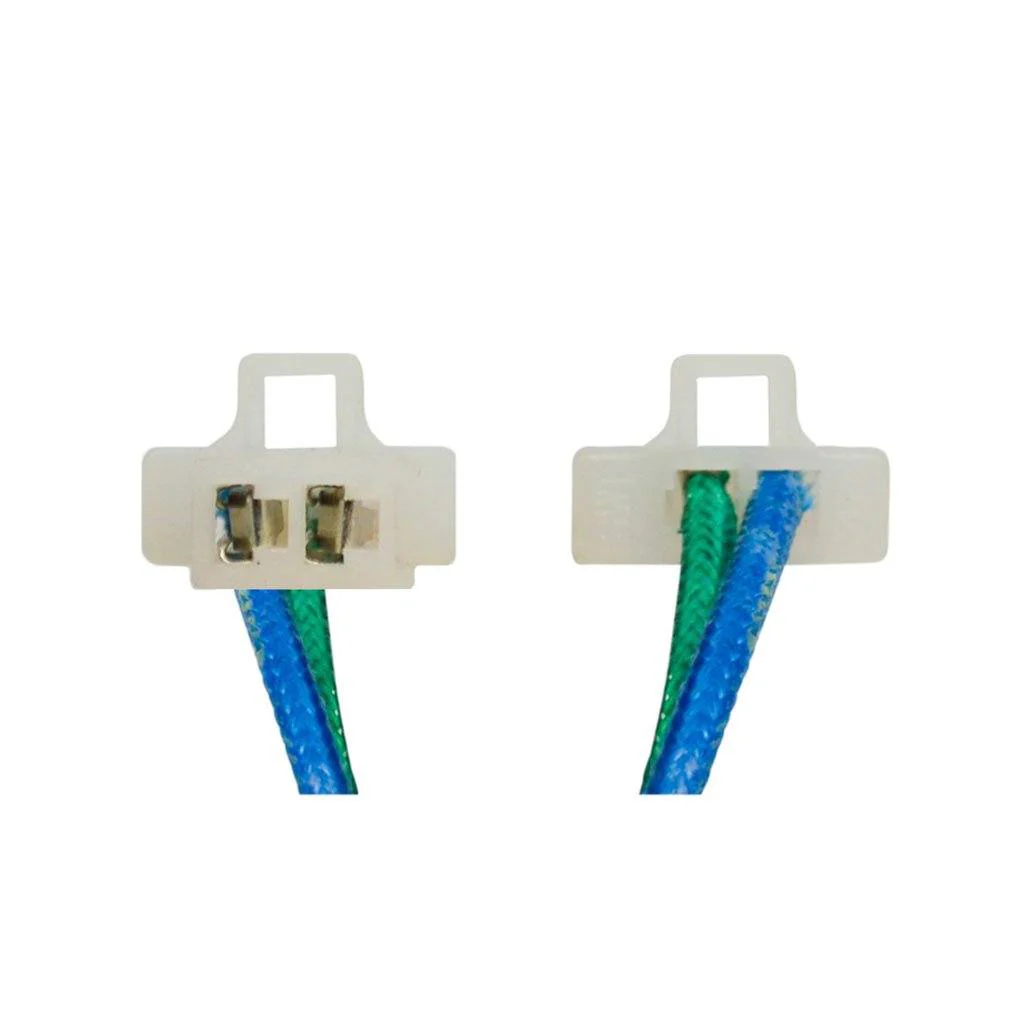

• 2 wires from pick up trigger to another plug: 50cm (19.7 in) overall length
• 3 bolt mounting

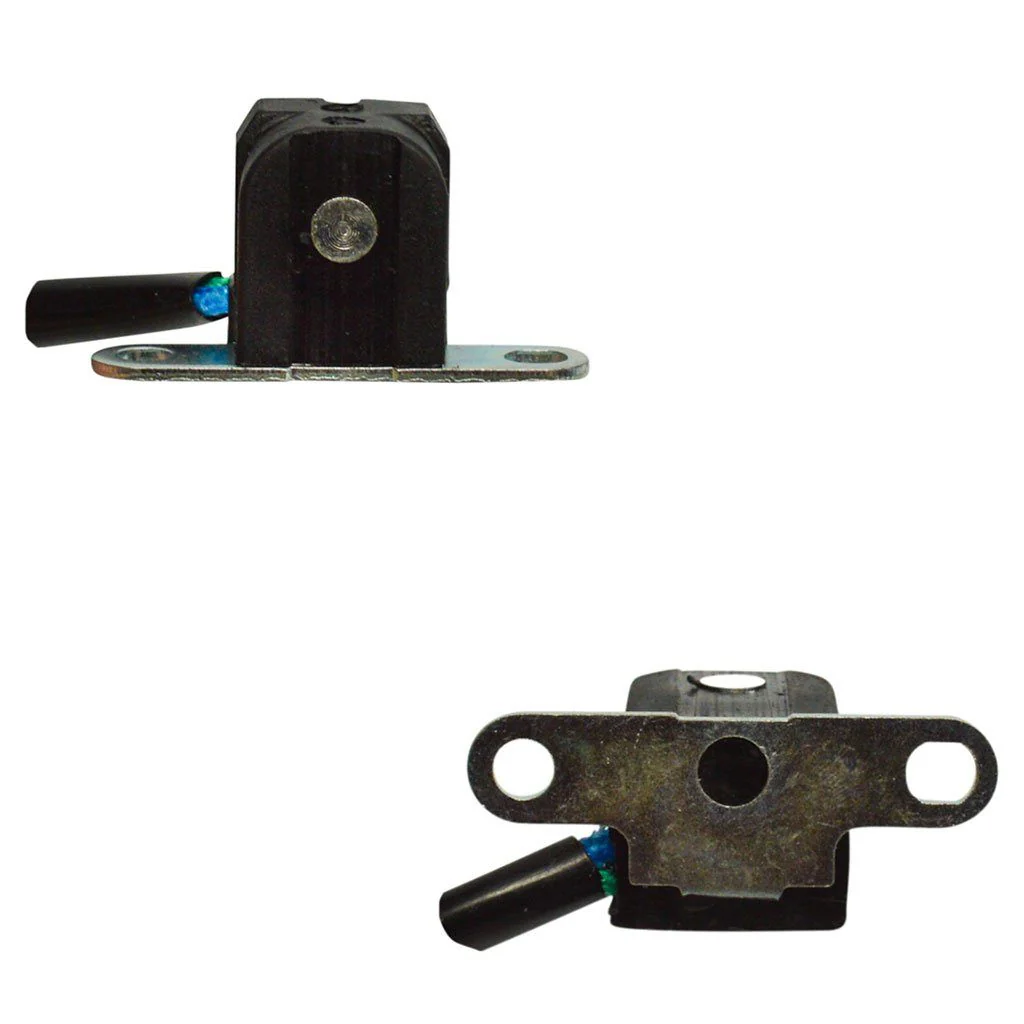

• Pick up trigger
• Center hole measurement: 42mm (1.65 in)

• Overall measurement:  103mm [4.05 in)

• Single coil height: 26mm (1.02 in)

• Mounting measurement: center-to-center 47mm (1.85 in) and 43mm (1.69 in)

• Compatible with 300cc 4 stroke

Baja 260cc 300cc, BMS 260cc 300cc, Linhai 250cc 257cc 260cc 300cc, Manco Talon 260cc 300cc and more.

Shipping details:

Do you need your stator magneto fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.   Buy now!

Electrical parts are not returnable.  Please double check before ordering.
