Chinese 18 Coil Stator Magneto for Linhai 250cc, 260cc, 300cc engines.

Version 26

This Chinese stator magneto is the replacement part for many 4-stroke Chinese atvs, go-karts and scooters.  The stator recharges the battery while the machine is in use, like an alternator in a car.  This stator fits 250cc, 260cc and 300cc models.  Known to fit Linhai 300cc, Ice Bear 300 and more.

Stator description:

• 18 coil (NONE wrapped)
• 3 wires - coming from coils

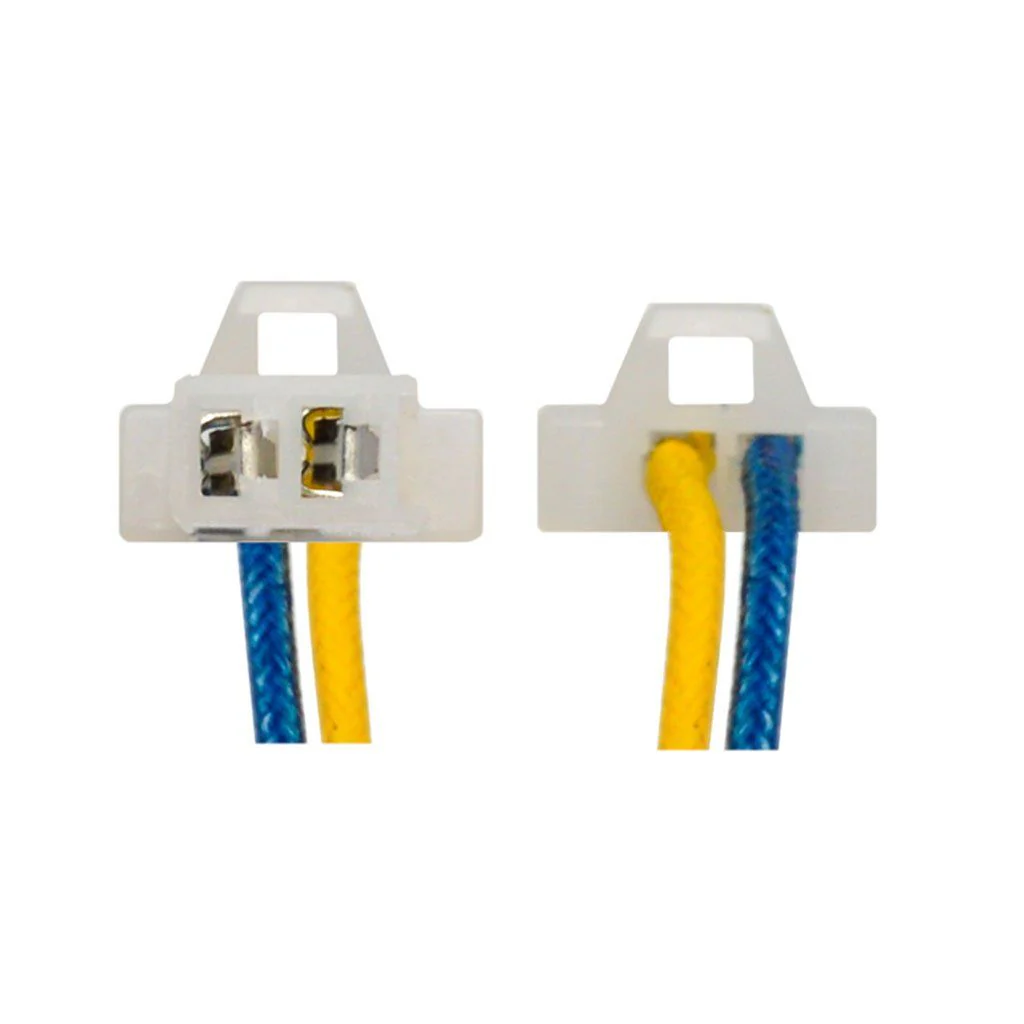

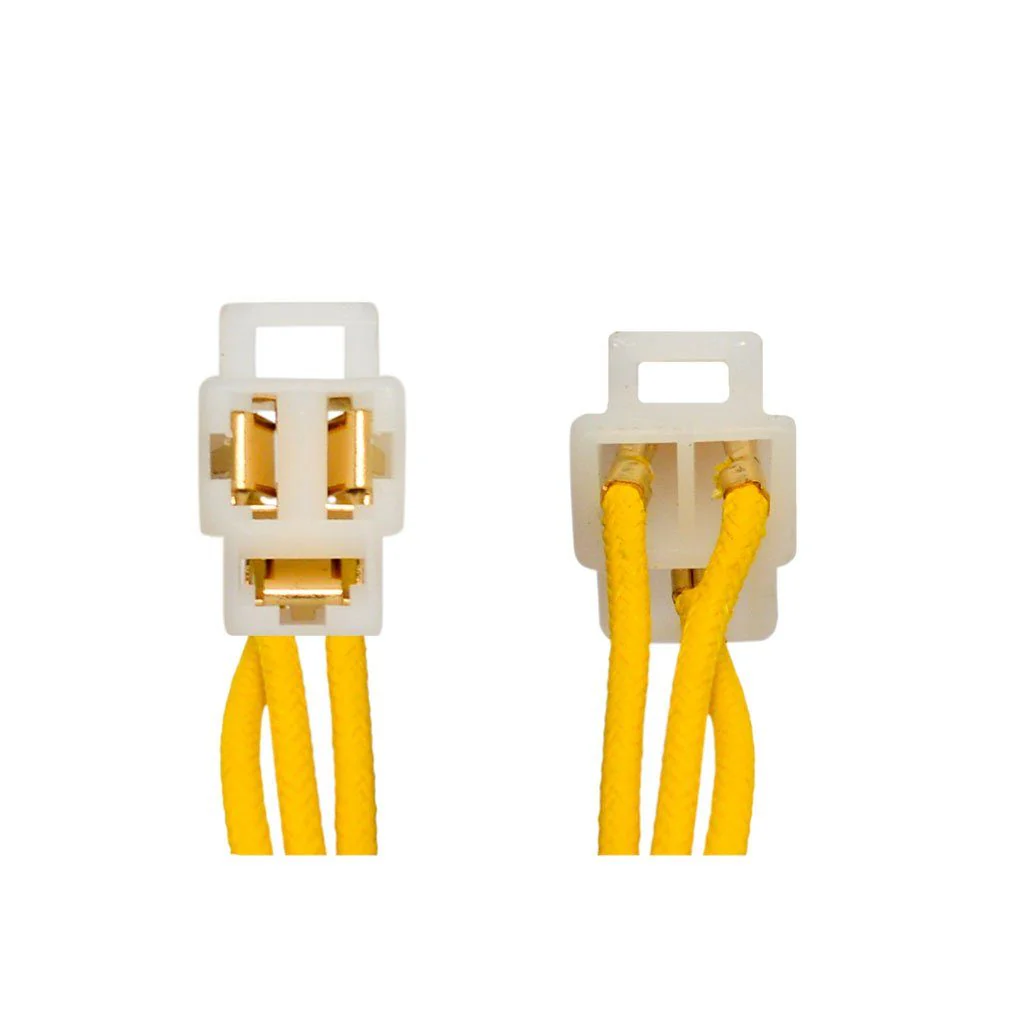

• 3 wire plug with 3 wires
• 3 bolt mounting

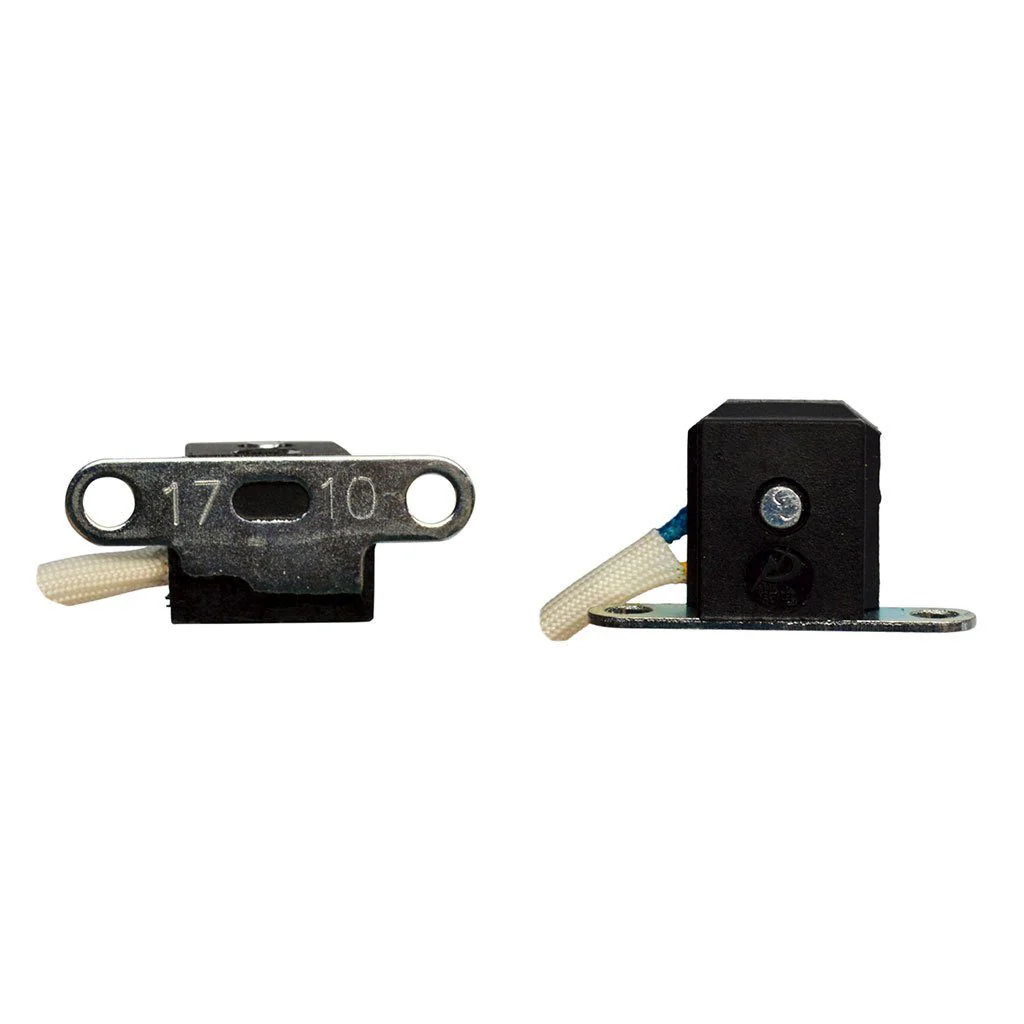

• Pick up trigger with wires leading to a 2-wire plug
• Center hole measurement: 34.8mm (1.37 in)

• Overall measurement:  93mm (3.67 in)

• Single coil height: 25.2mm (0.99 in)

• Mounting measurement: center-to-center diagonally 38.2mm (1.5 in)

• Compatible with 260cc and 300cc 4-stroke

Shipping details:

Do you need your stator magneto fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.  Buy now!

Electrical parts are not returnable.  Please double check before ordering.
