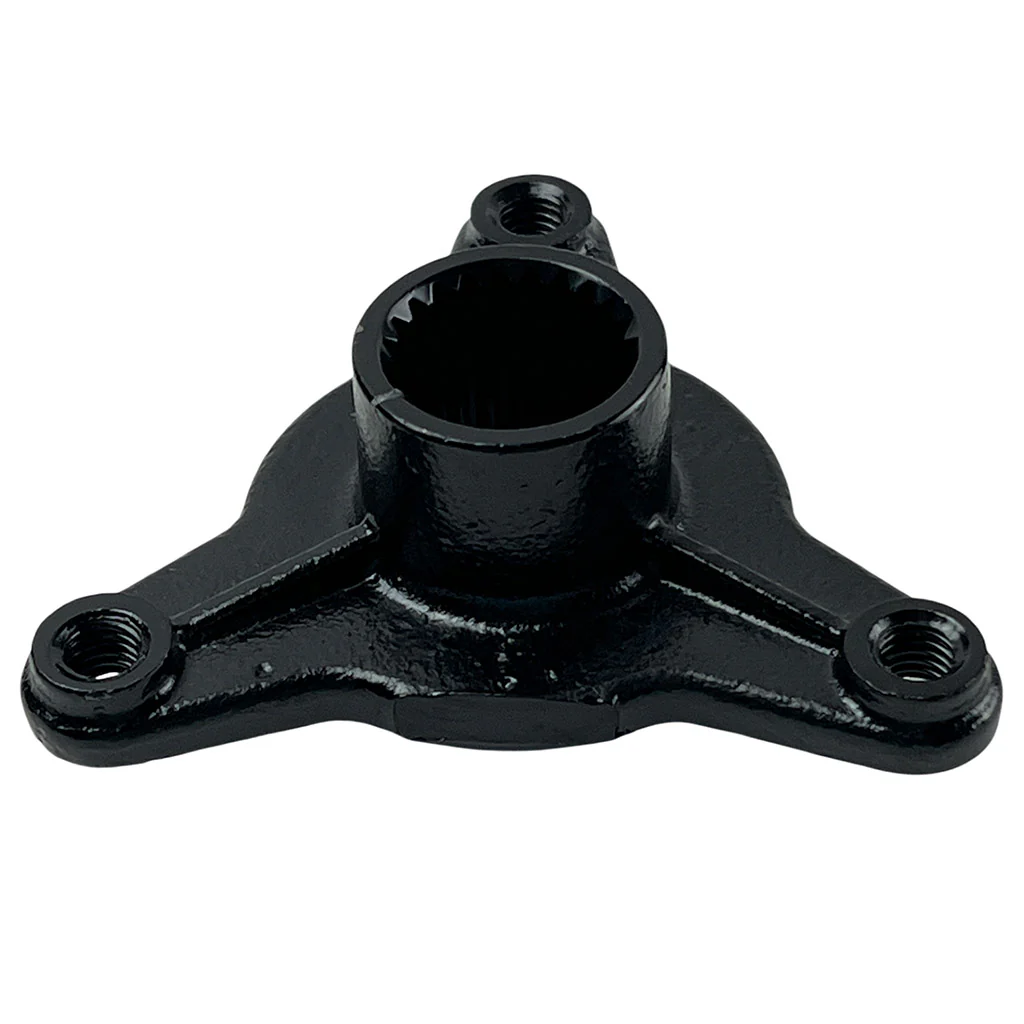

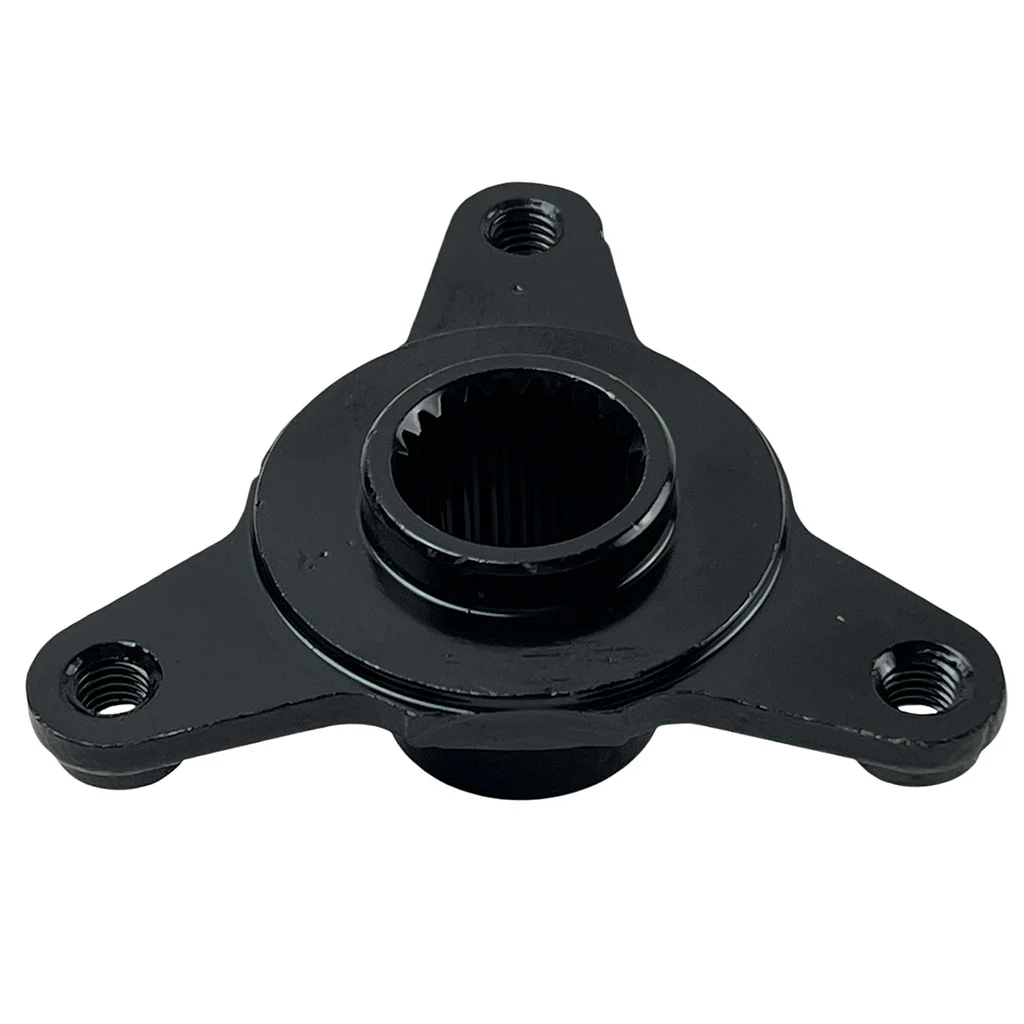

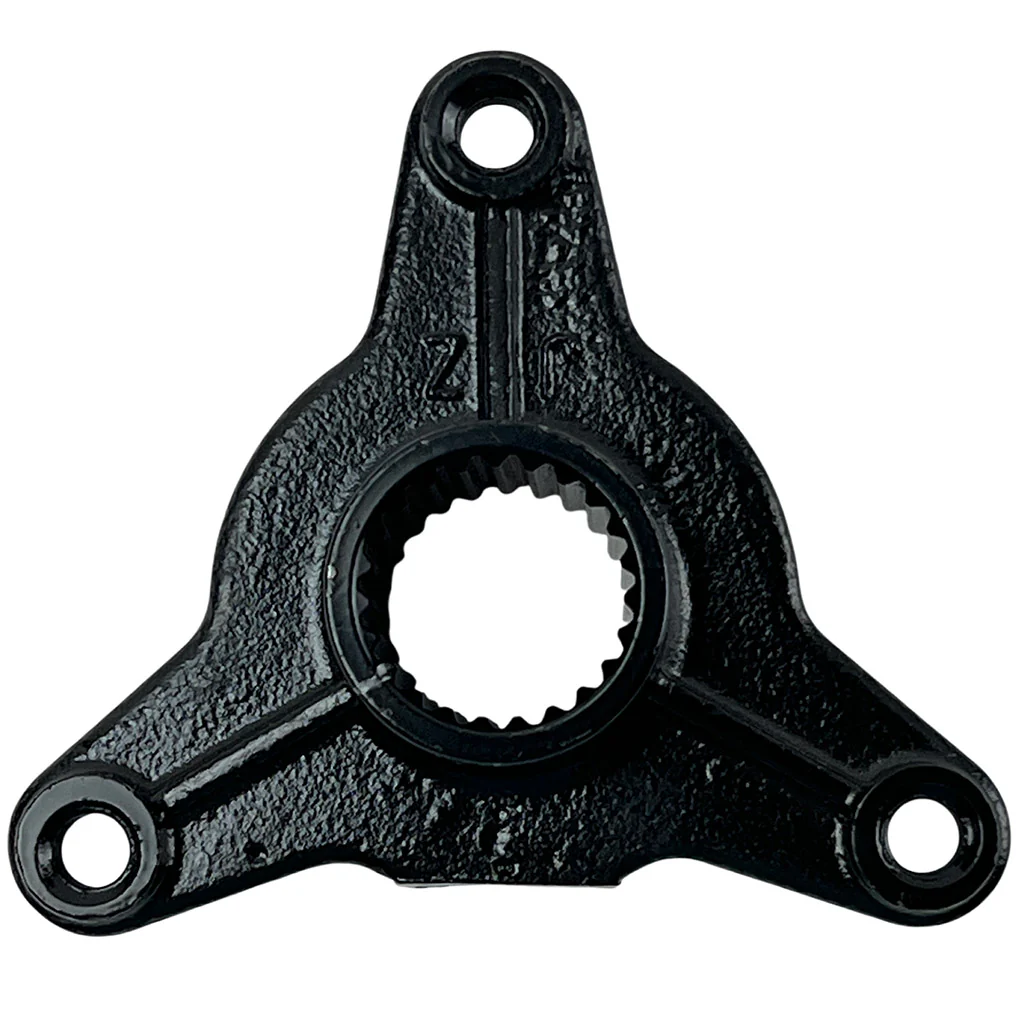

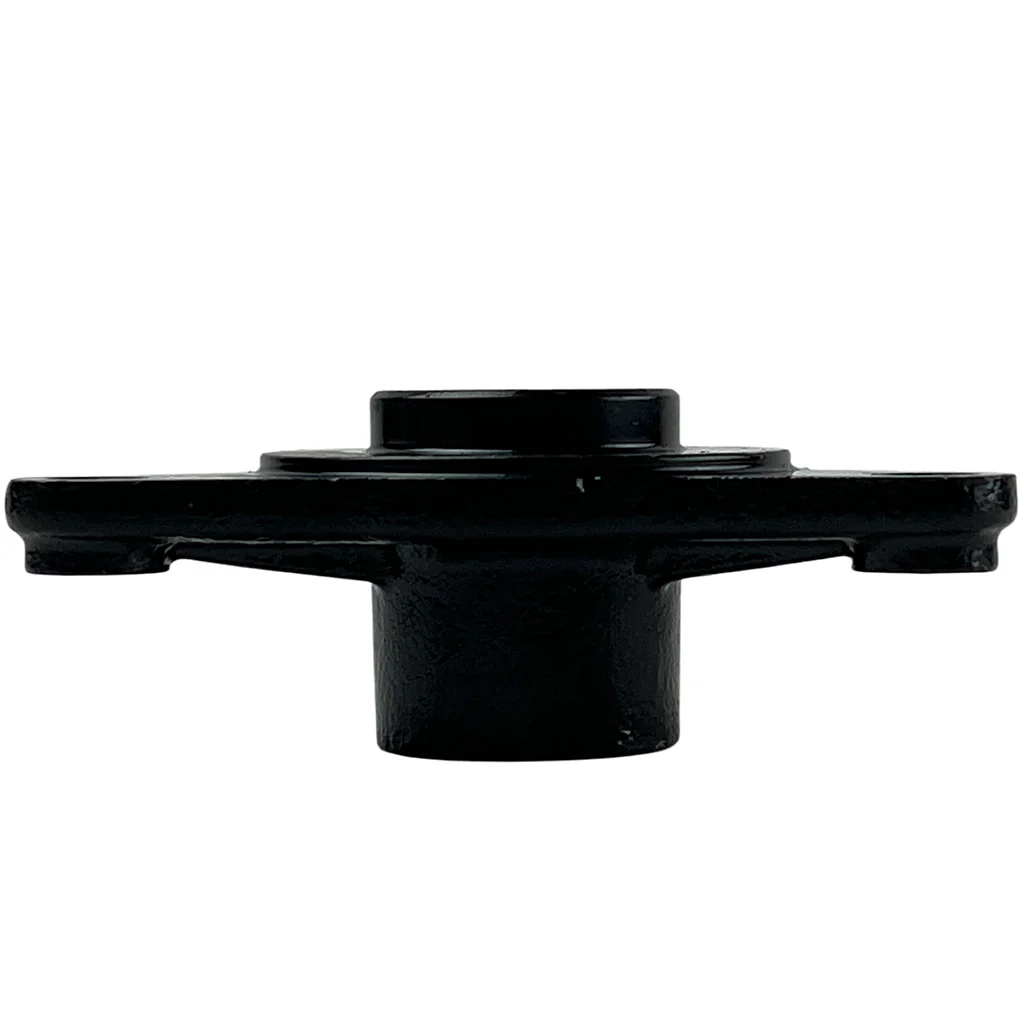

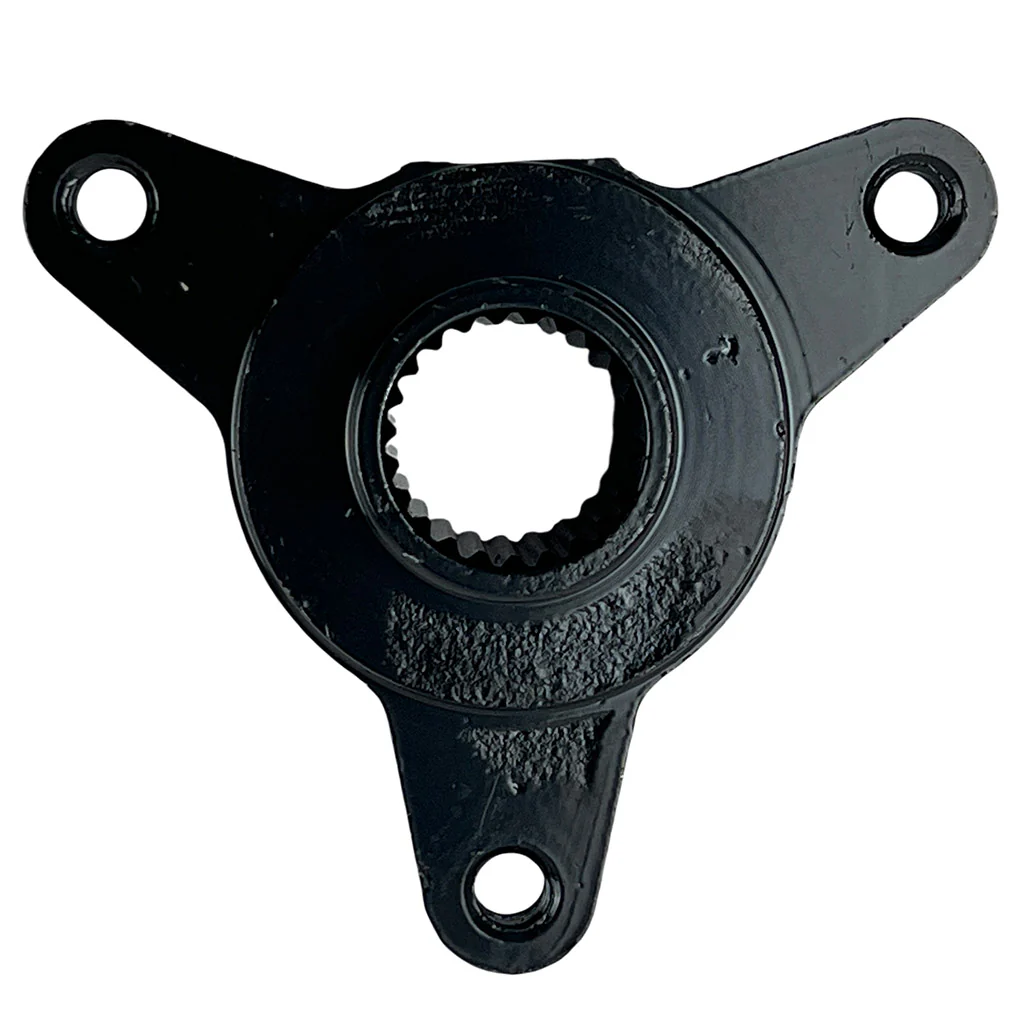

Wheel Hub - Rear - ATV - Apollo Mini Commander 110

This rear wheel hub is used on several makes and models of Chinese atvs, including the Apollo Mini Commander 110.  The best way to insure you are ordering the correct part is to use our detail pictures and measurements.  Please be sure to check both before ordering.

Hub details:

• (3) 8mm*1.25 mounting holes
• Distance between holes:  approximately 77mm (3.0 in) center to center
• Total length of shaft: 36mm (1.42 in) From one side to the other
• The shaft barely protrudes from one side and sticks out about an inch on the other side
• 23 splines
• Center hole diameter: 24.4mm (0.96 in)

• 306014002003

Shipping details:

Do you need your hub fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.   Buy now!
