Stator Magneto Flywheel - Jianshe JS400 400cc ATV

Product image 1
1 / 5

Stator Magneto Flywheel - Jianshe JS400 400cc ATV

Stator Magneto Flywheel - Jianshe JS400 400cc ATV

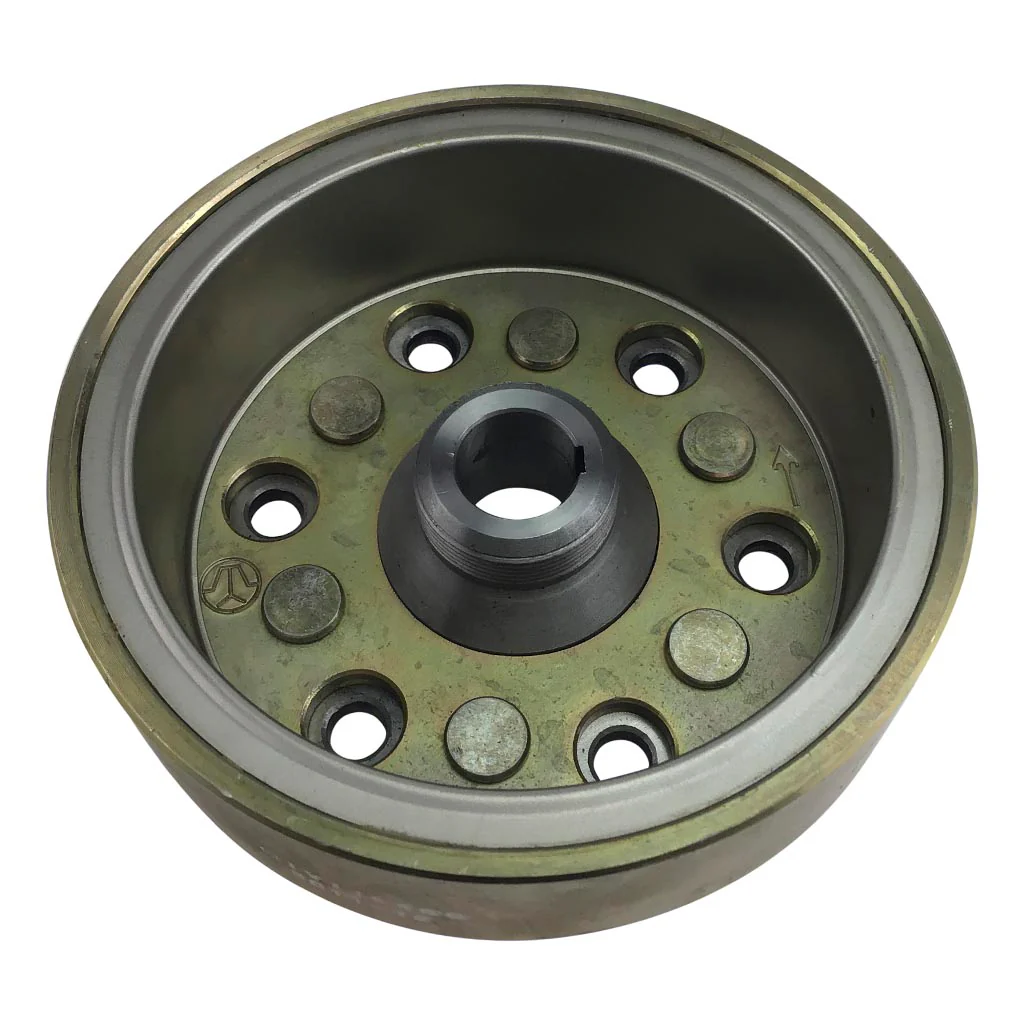

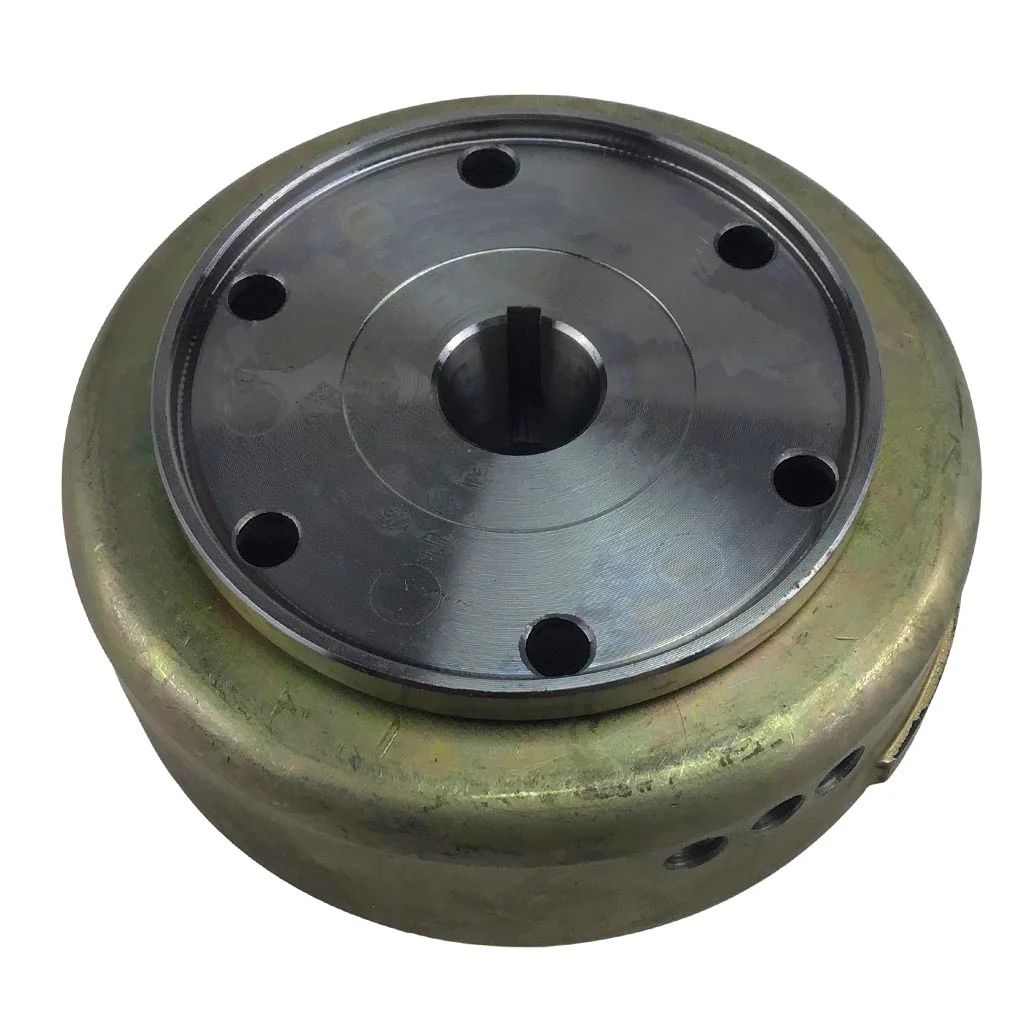

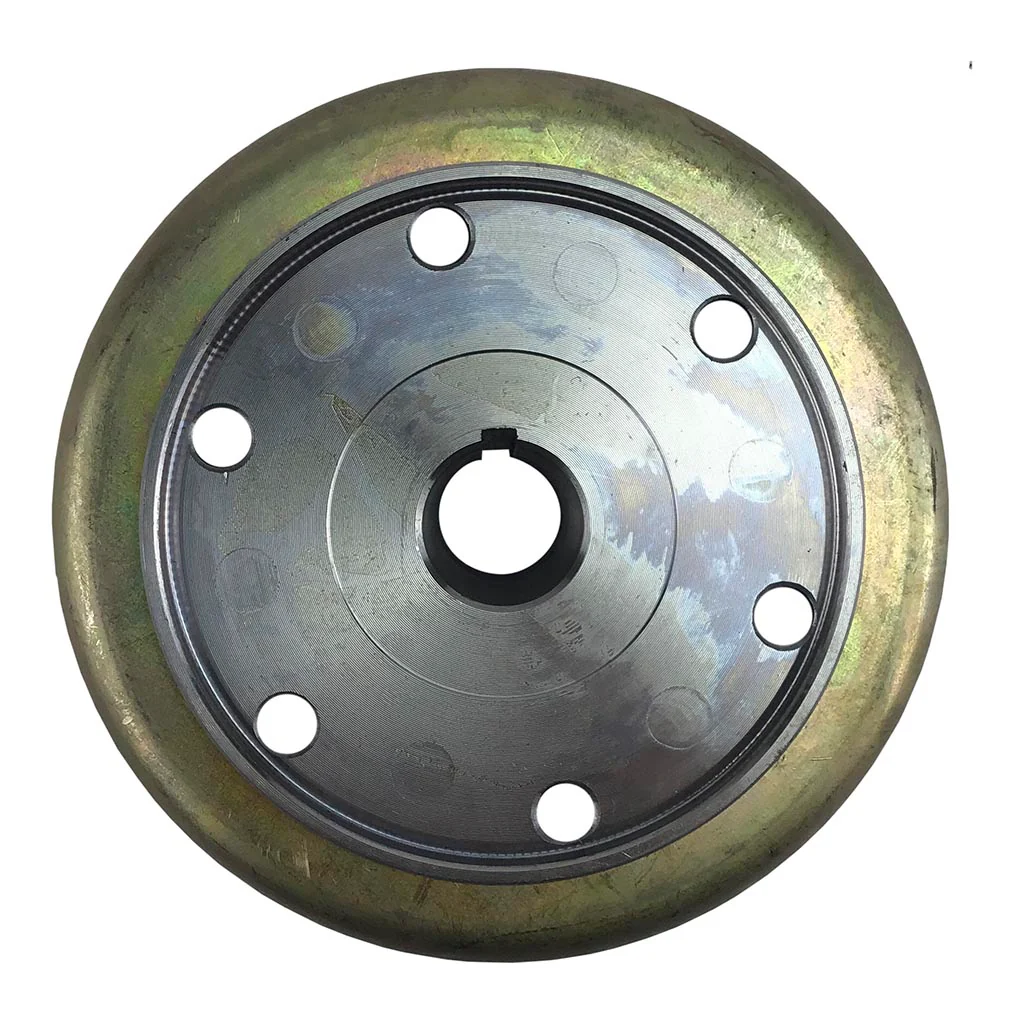

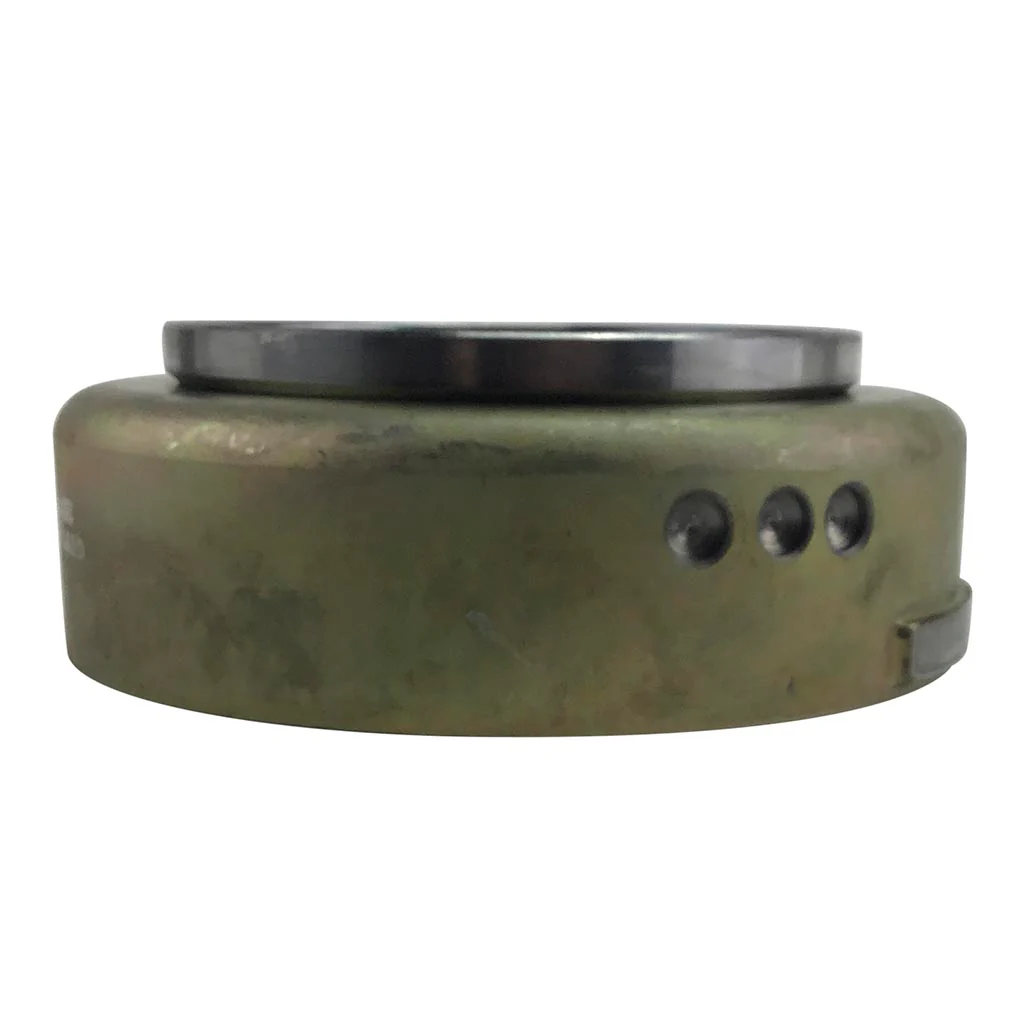

Chinese stator magneto flywheel is for a Jianshe 400cc engines.  The Chinese sometimes refer to these as magnetic motor rotors.   I don't know what makes or models this particular flywheel is used on, so please use the measurements and pictures to match your part.

Flywheel description:

  • Overall height: 52mm (2.05 in)
  • Outside diameter: 143mm (5.62 in) does not include tab
  • Inside diameter of magnetic brass part: 116.6mm (4.59 in)
  • ID of mounting hole: 23.3mm (0.91 in)
  • 6 holes
  • Cutout flywheel key notch.
  • F3-D51000-0

Known to fit 400cc engines.

Stator Magneto Flywheel - Jianshe JS400 400cc ATV

Chinese stator magneto flywheel is for a Jianshe 400cc engines.  The Chinese sometimes refer to these as magnetic motor rotors.   I don't know what makes or models this particular flywheel is used on, so please use the measurements and pictures to match your part.

Flywheel description:

  • Overall height: 52mm (2.05 in)
  • Outside diameter: 143mm (5.62 in) does not include tab
  • Inside diameter of magnetic brass part: 116.6mm (4.59 in)
  • ID of mounting hole: 23.3mm (0.91 in)
  • 6 holes
  • Cutout flywheel key notch.
  • F3-D51000-0

Known to fit 400cc engines.

$59.95
Stator Magneto Flywheel - Jianshe JS400 400cc ATV
$59.95

Description

Stator Magneto Flywheel - Jianshe JS400 400cc ATV

Chinese stator magneto flywheel is for a Jianshe 400cc engines.  The Chinese sometimes refer to these as magnetic motor rotors.   I don't know what makes or models this particular flywheel is used on, so please use the measurements and pictures to match your part.

Flywheel description:

  • Overall height: 52mm (2.05 in)
  • Outside diameter: 143mm (5.62 in) does not include tab
  • Inside diameter of magnetic brass part: 116.6mm (4.59 in)
  • ID of mounting hole: 23.3mm (0.91 in)
  • 6 holes
  • Cutout flywheel key notch.
  • F3-D51000-0

Known to fit 400cc engines.
