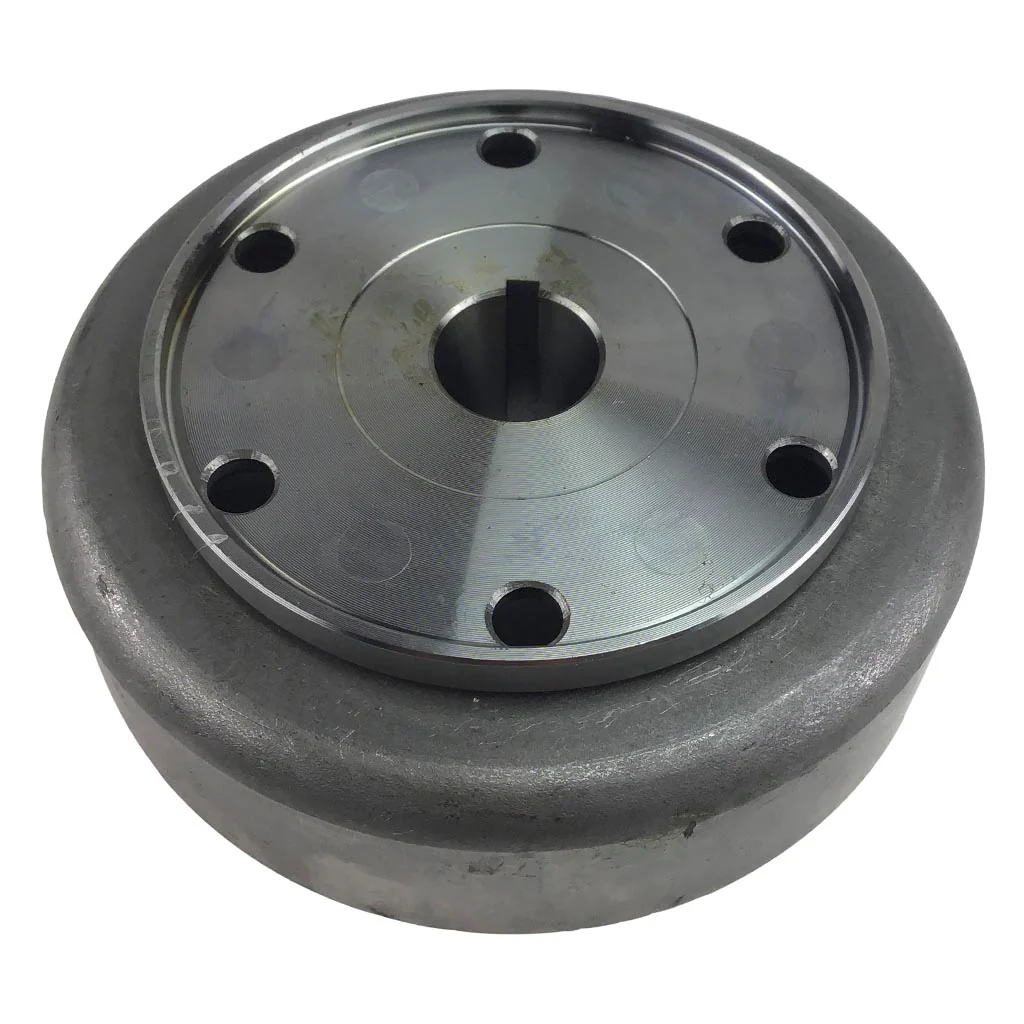

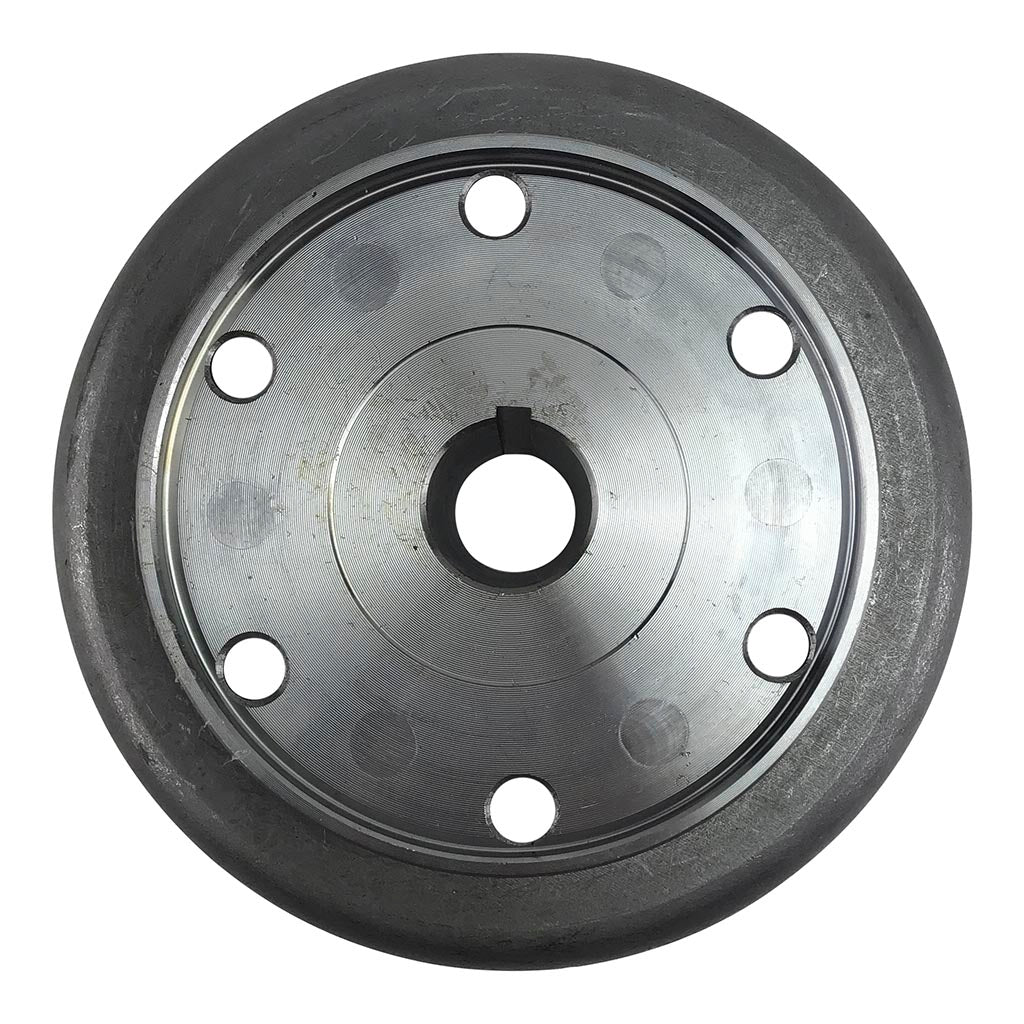

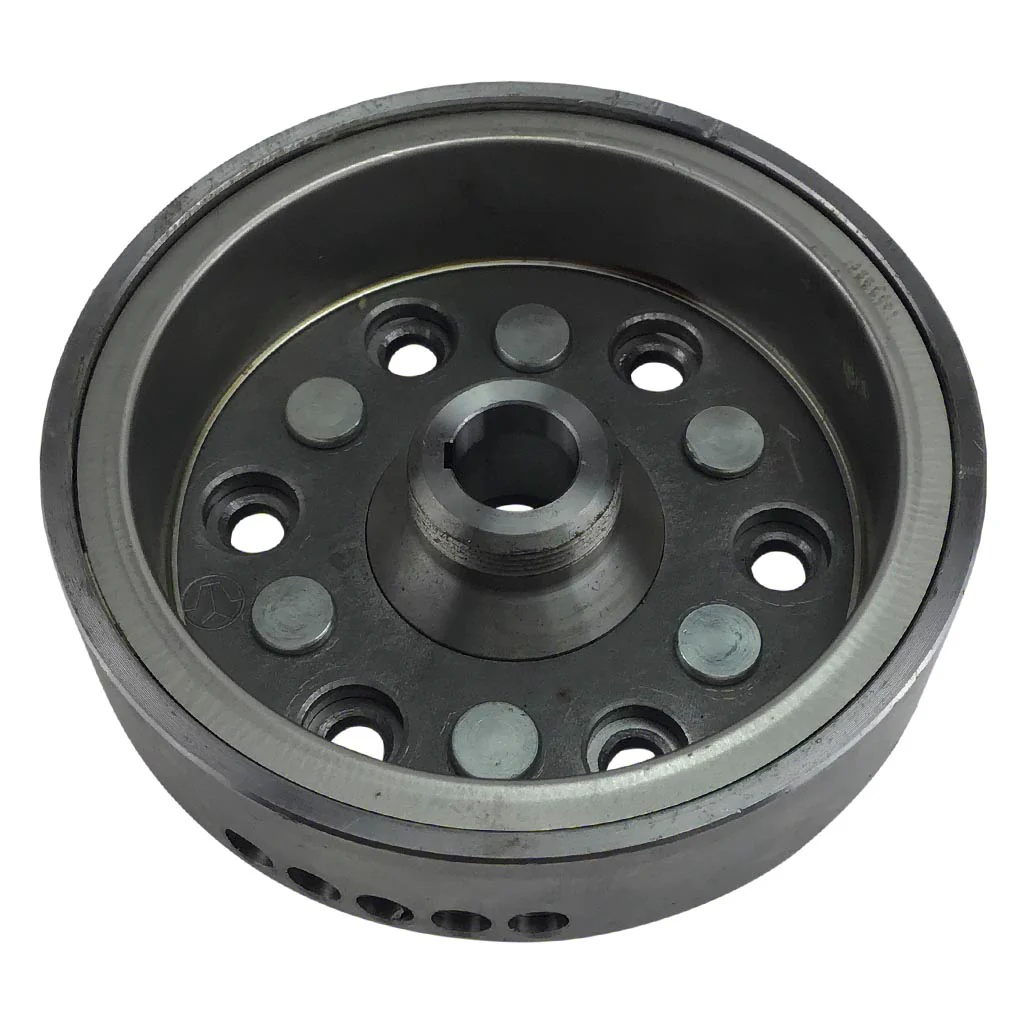

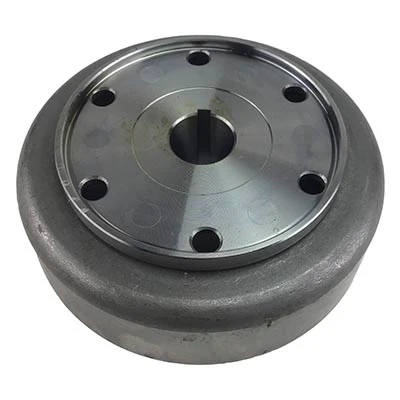

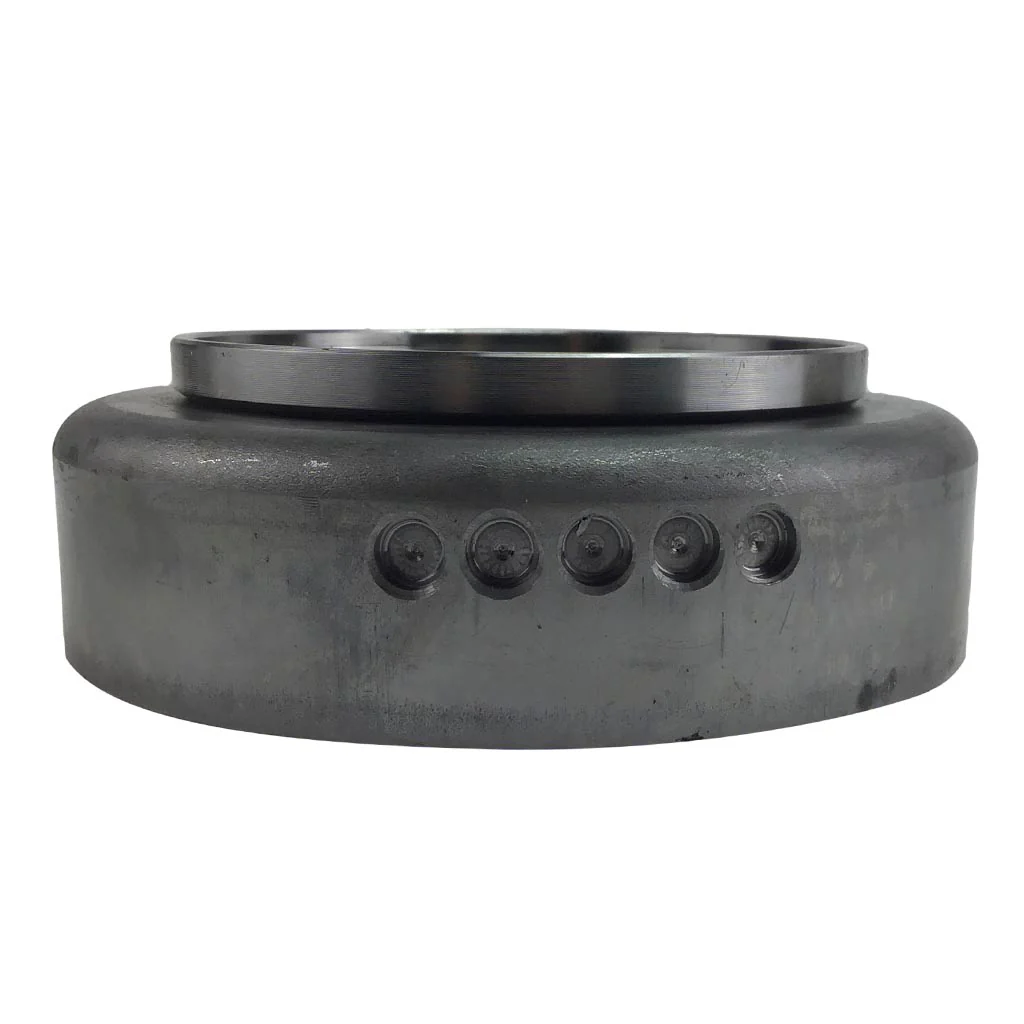

Stator Magneto Flywheel - Hisun 500cc 700cc ATV UTV

Chinese stator magneto flywheel is for carbureted 500cc and 700cc engines made by Hisun.  The Chinese sometimes refer to these as magnetic motor rotors.   Please use the measurements and pictures to match your part.

Flywheel description:

• Overall height: 47mm (1.84 in)

• Outside diameter: 143mm (5.64 in) does not include tab

• Inside diameter of magnetic brass part: 116.6mm (4.59 in)

• ID of mounting hole: 23.3mm (0.91 in)

• 6 holes

• Cutout flywheel key notch.
• 31110-004-0000
• P004000311100100

Known to fit 500cc and 700cc carbureted engines.

Fits the Hisun family of UTVs including Bennche, Big Muddy, Coleman, Massimo, Yardsport and more!
