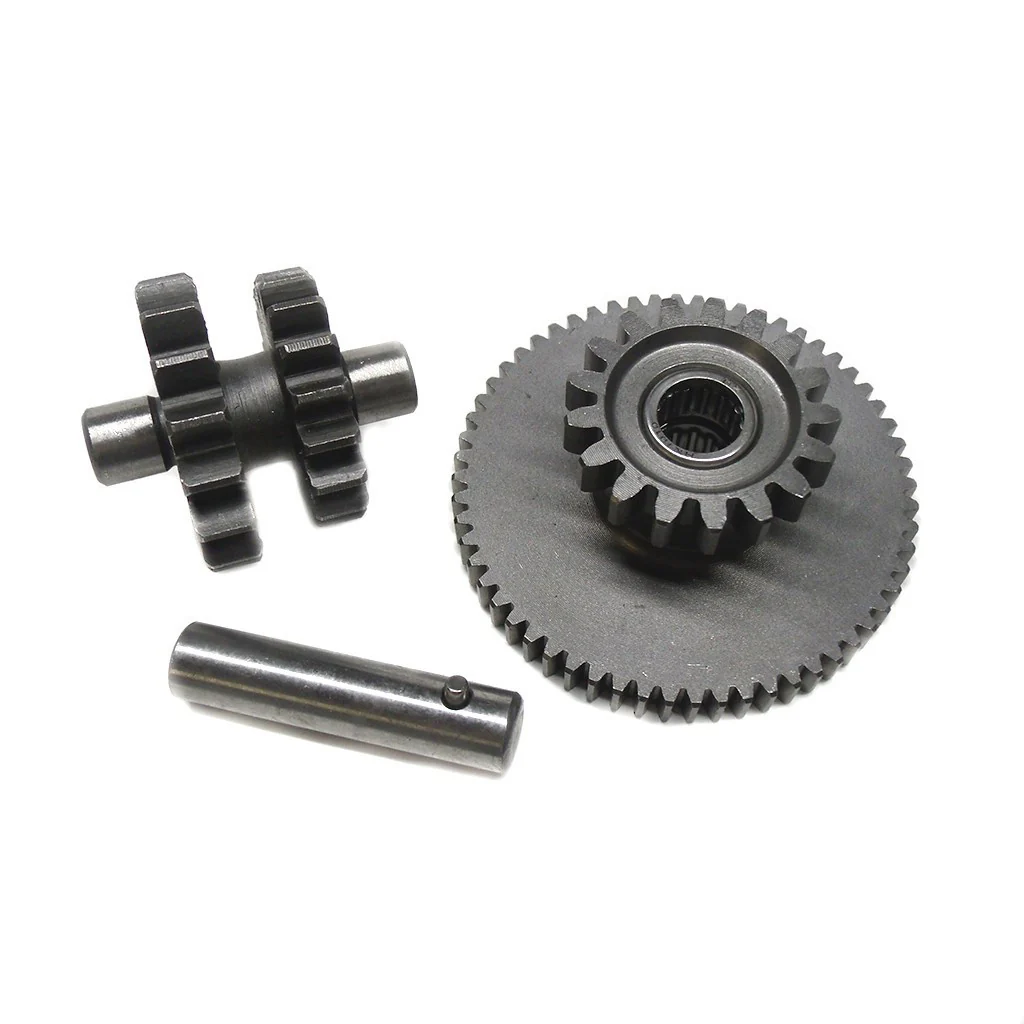

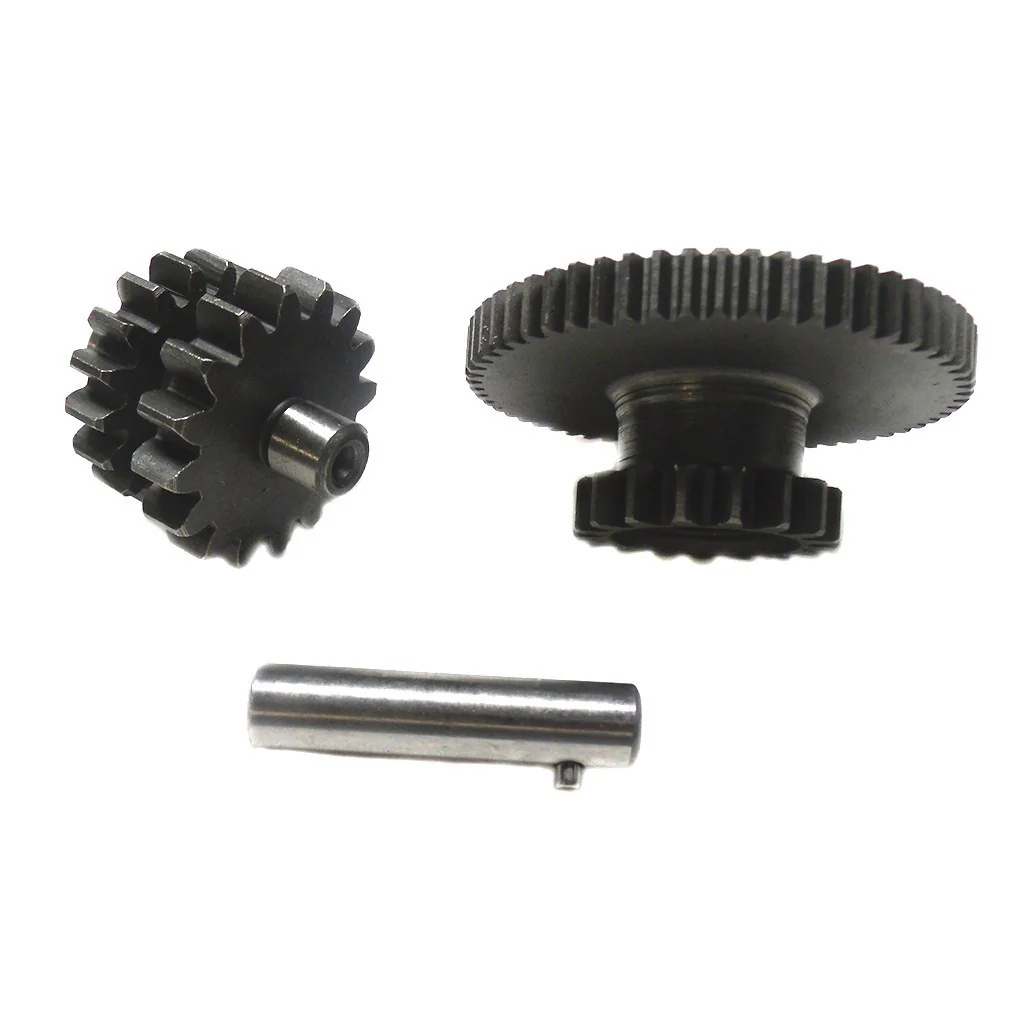

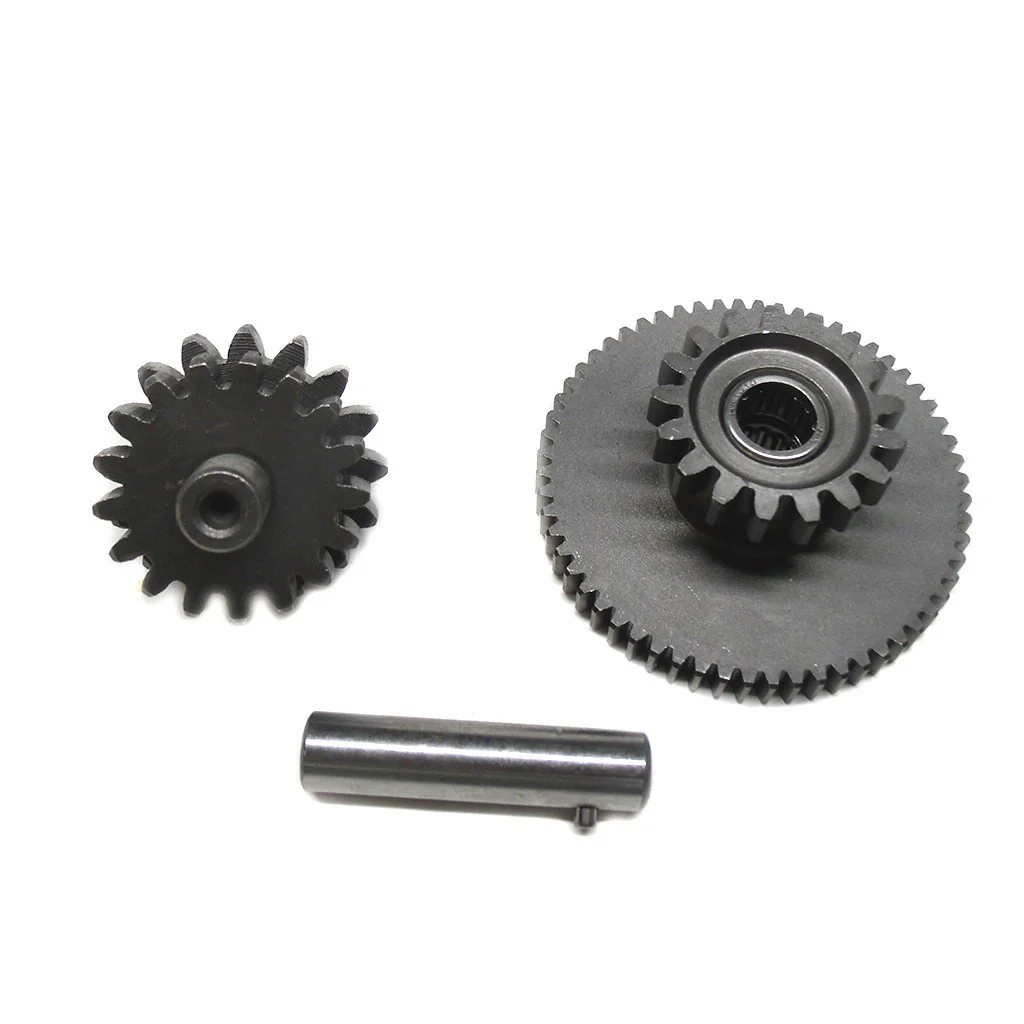

200cc CG Engine Start Idle Gear Assembly

Gear Description:

• 3 piece assembly
• Known to fit 200cc CG Engine
• CHECK TOOTH COUNT BELOW

Small double gear details:

• Small gear - 17 tooth
• Larger gear - 16 tooth
• Overall length - 41.2mm (1.625 in)


Large double gear details:

• Small gear - 17 tooth
• Larger gear - 60 tooth
• Overall length - 25.45mm (1.0 in)


Rod details:

• Overall length - 43.4mm (1.7 in)

• Diameter - 10mm (0.39 in)


Please use the tooth count to verify this part.  Known to fit CG200cc engine and more.

Shipping details:

Do you need your idler fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.  Buy now!
