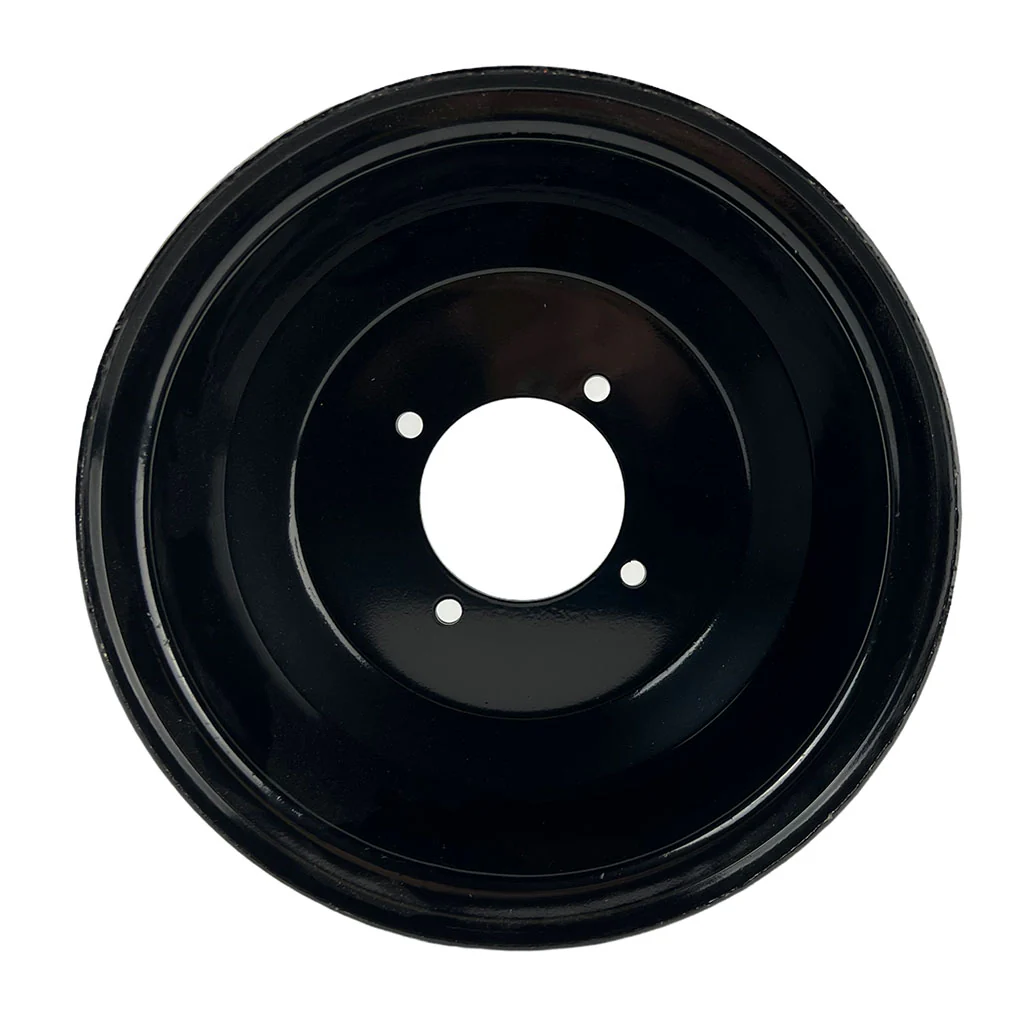

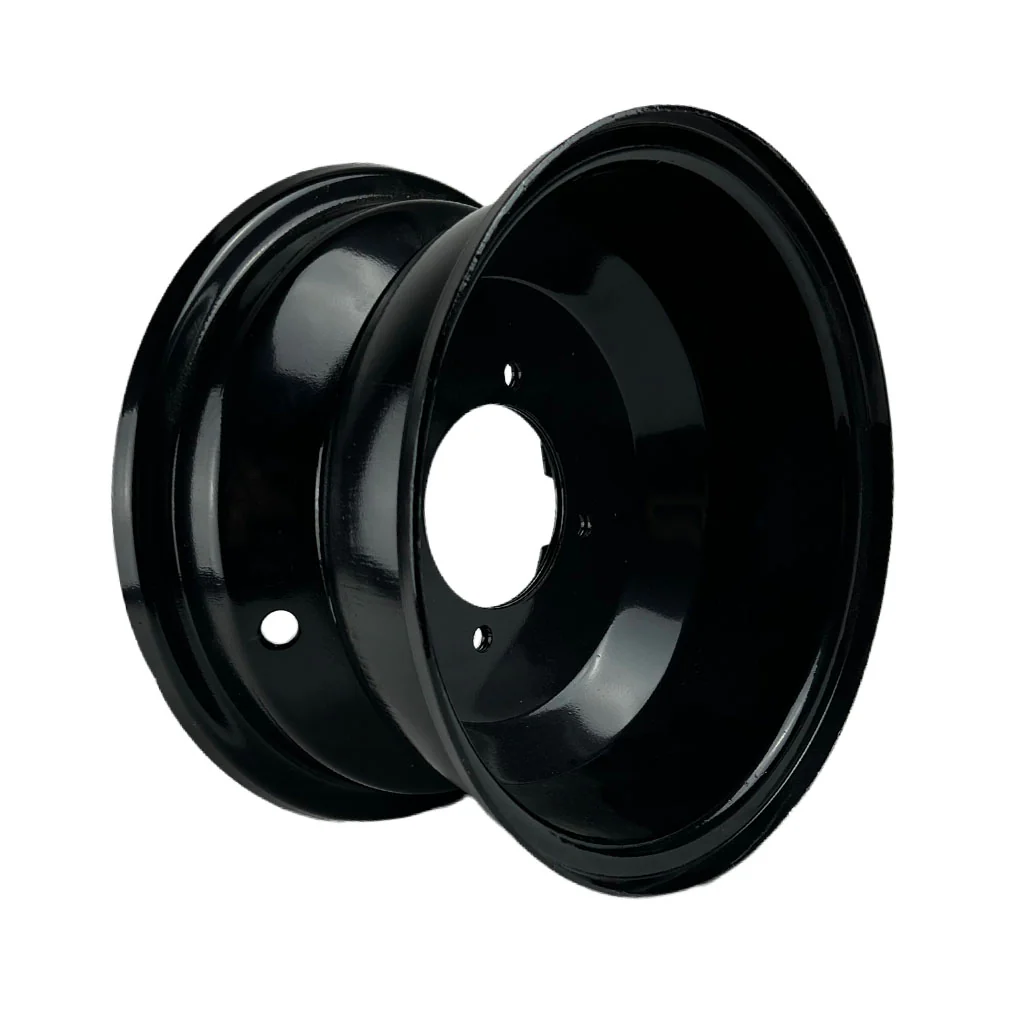

ATV Front Rim - Black

8.0 X 4.5 Inch - 4 bolt

This rim fits the Tao Tao REX.  This rim is the same as the OEM rim, but without the cog looking attachment points for the yellow cover.  Please use detailed measurements and pictures to help you get the correct rim for your machine.

If you're having trouble figuring out the size of your rim, CLICK HERE!

Rim details:

• Black
• Steel
• NO DECORATIVE COVER ATTACHMENT POINTS
• Bead diameter: 8.0 inches

• Bead width: 4.5 inches

• 8mm bolt holes
• Bolt circle: 4 x 88 (4 bolt holes in an 88mm circle)
• Offset: 3.00+1.5
• Center hole diameter: 67mm (2.64 in)

• Bolt hole spacing: approx. 62mm (2.4 in) side-to-side center to center
• Bolt hole spacing: 88mm (3.46 in) center-to-center diagonally
• Actual diameter: 226mm  (8.9 in)

• Actual width: 141mm  (5.5 in)

• Tao Tao uses a 19X7-8 tire on this rim

Fits the Coleman AT125-EX, AT125-UT and AT125Y atv.

Fits Denago Trailhawk 10 FI atv.

Fits Tao Tao REX, Shark 125 and Rival Mudhawk 10 atvs.
