Rear Brake Assembly for Tao Tao NEW CHEETAH, NEW TFORCE ATVs

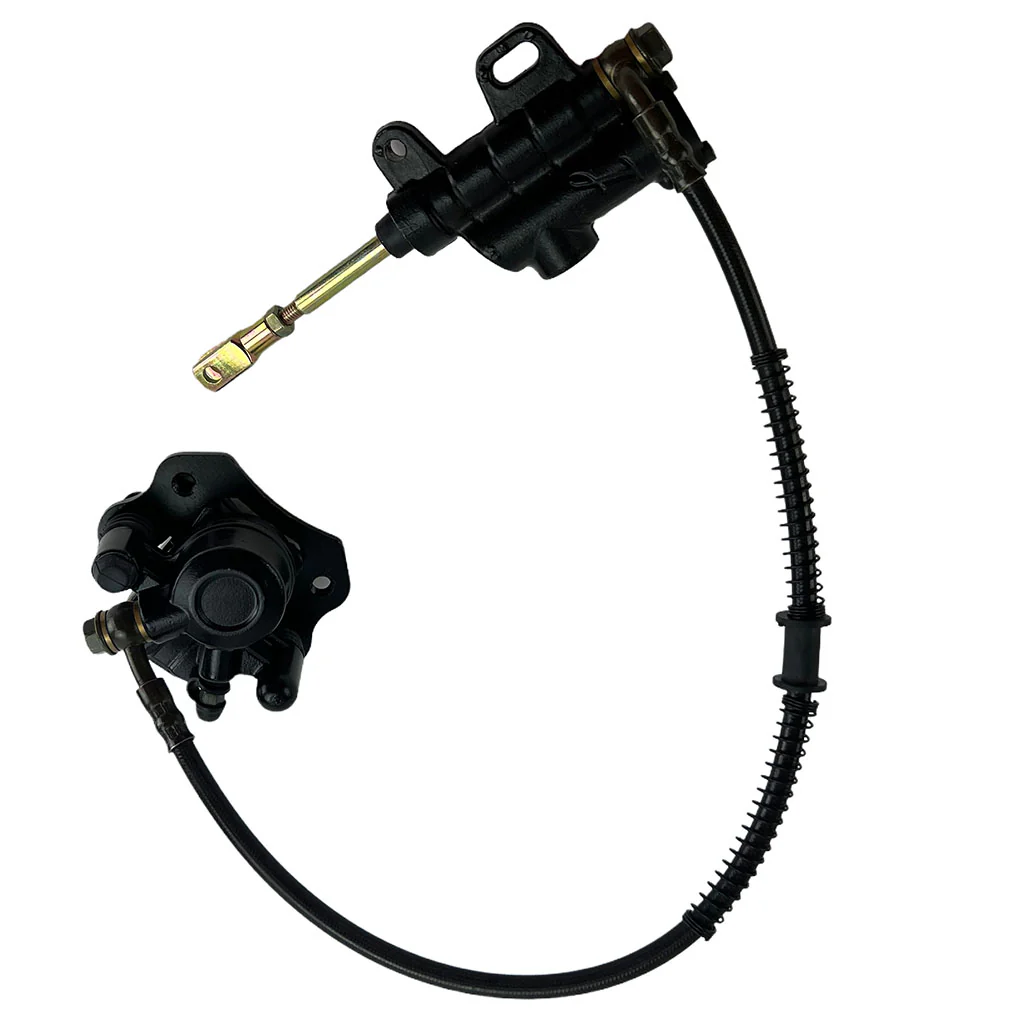

This rear brake assembly is the replacement part for the TaoTao NEW CHEETAH and NEW TFORCE atvs.  The assembly has the brake master cylinder, rear caliper, and brake line hose.  It is shipped full of fluid and ready to install.  No brake bleeding necessary.

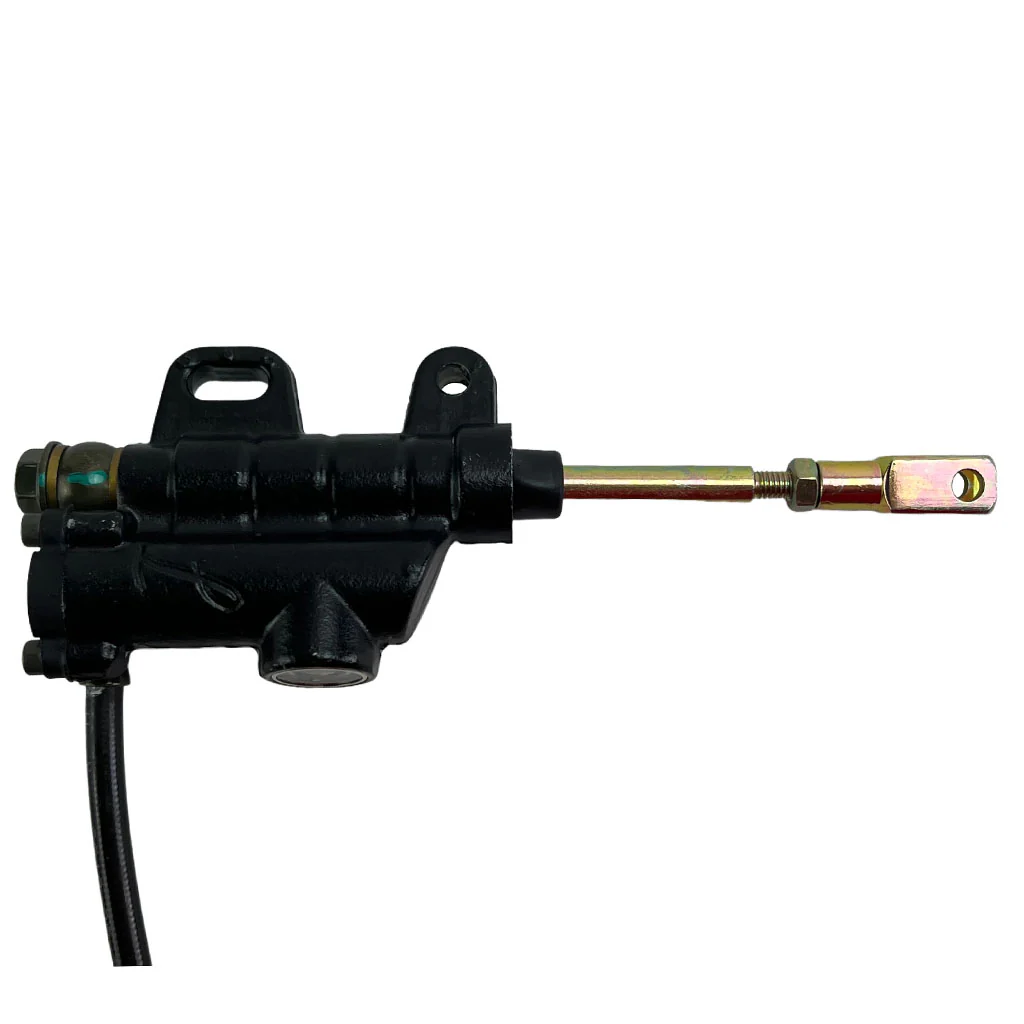

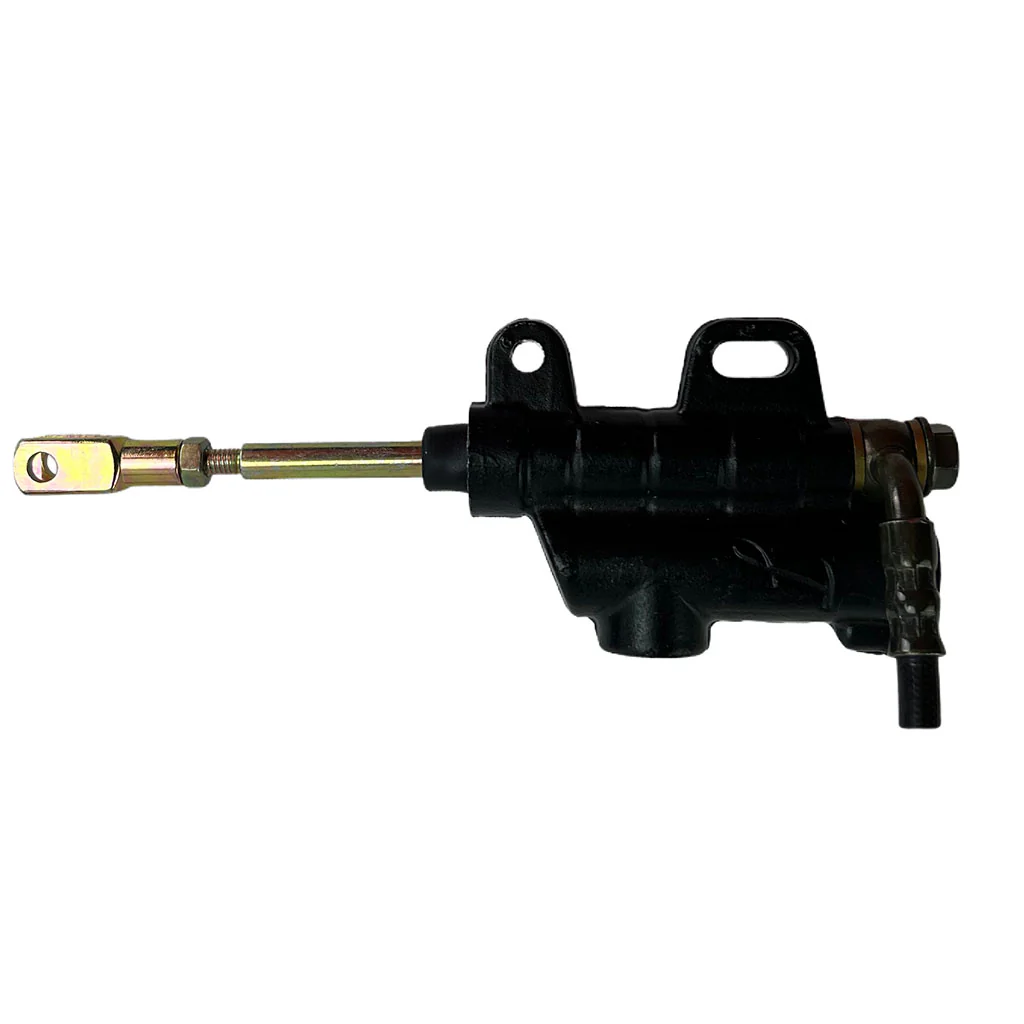

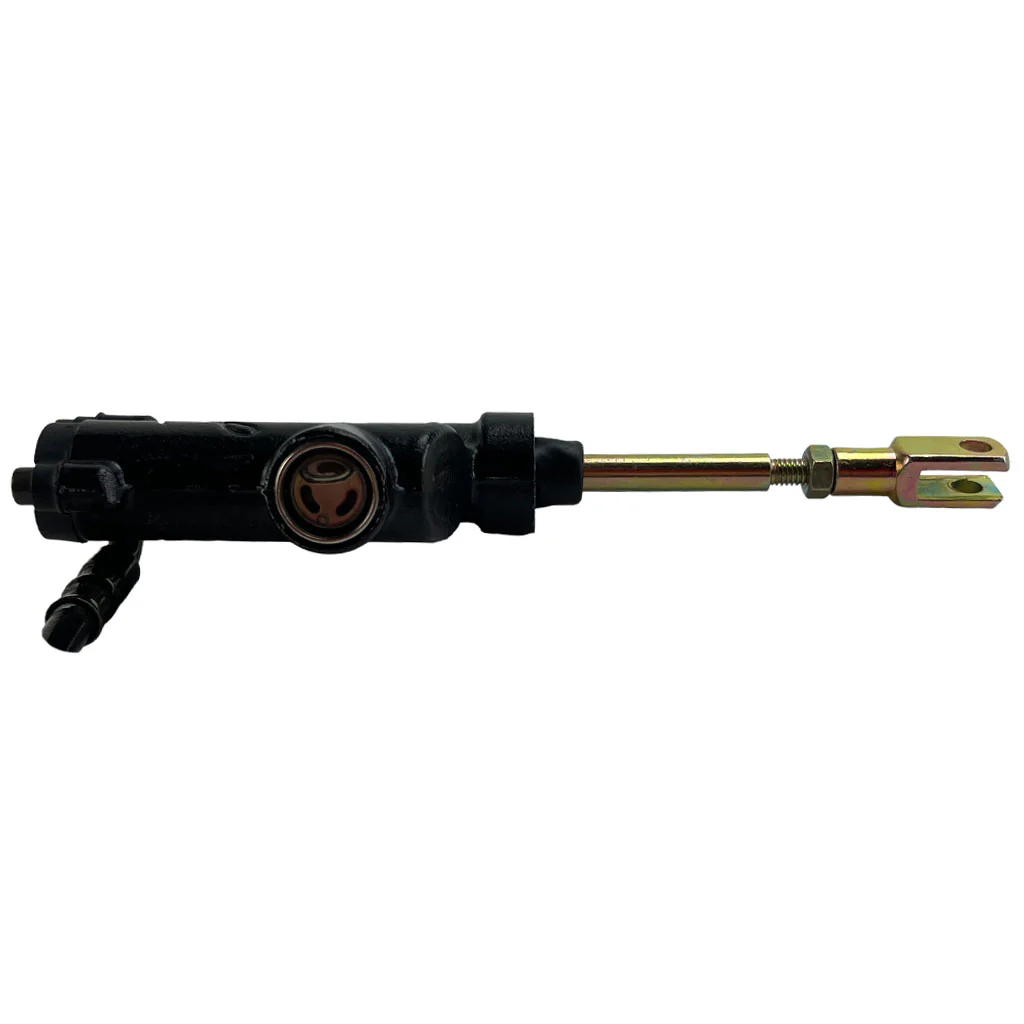

Master Cylinder description:

• Foot operated

• Adjustable clevis

• Site glass on top

• Hose attached at the rear
• Uses DOT3 or DOT 4 brake fluid
• Clevis pin and cotter pin are NOT included

Caliper details:

• Mounting Holes: 2.48 inches center to center (62.5mm)
• Overall width: 92mm (3.62 in)

• Overall height: 77mm (3.04 in)

• Uses brake pad 41
• Includes brake bleeder screw with cap
• Includes banjo bolt

Hose is approximately 21 inches Long.

 SHOP NOTE: After changing the assembly, be sure to see if you need to bleed any air from the brake system to insure the caliper is working effectively.
