Gas / Fuel Tank - Metal - Coleman 98cc 154F CC100X Mini Bike

Version 919

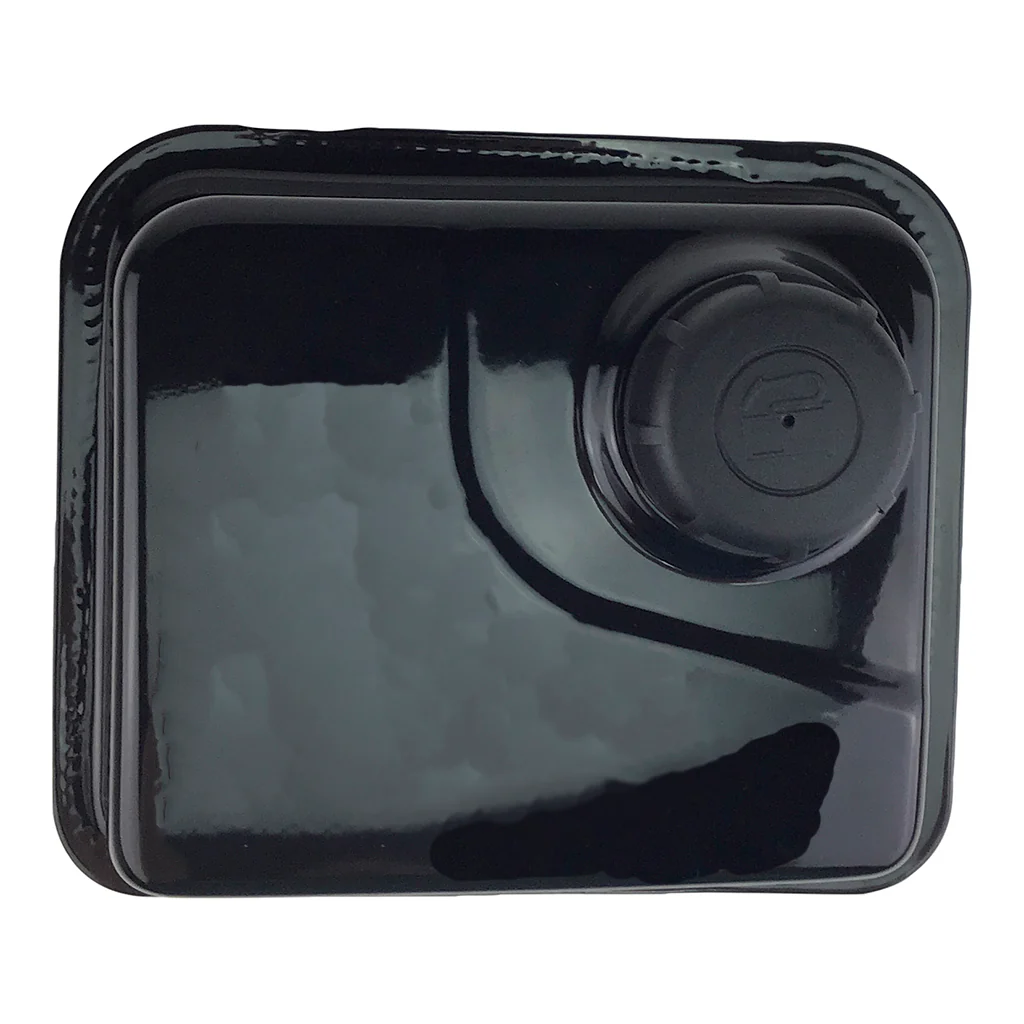

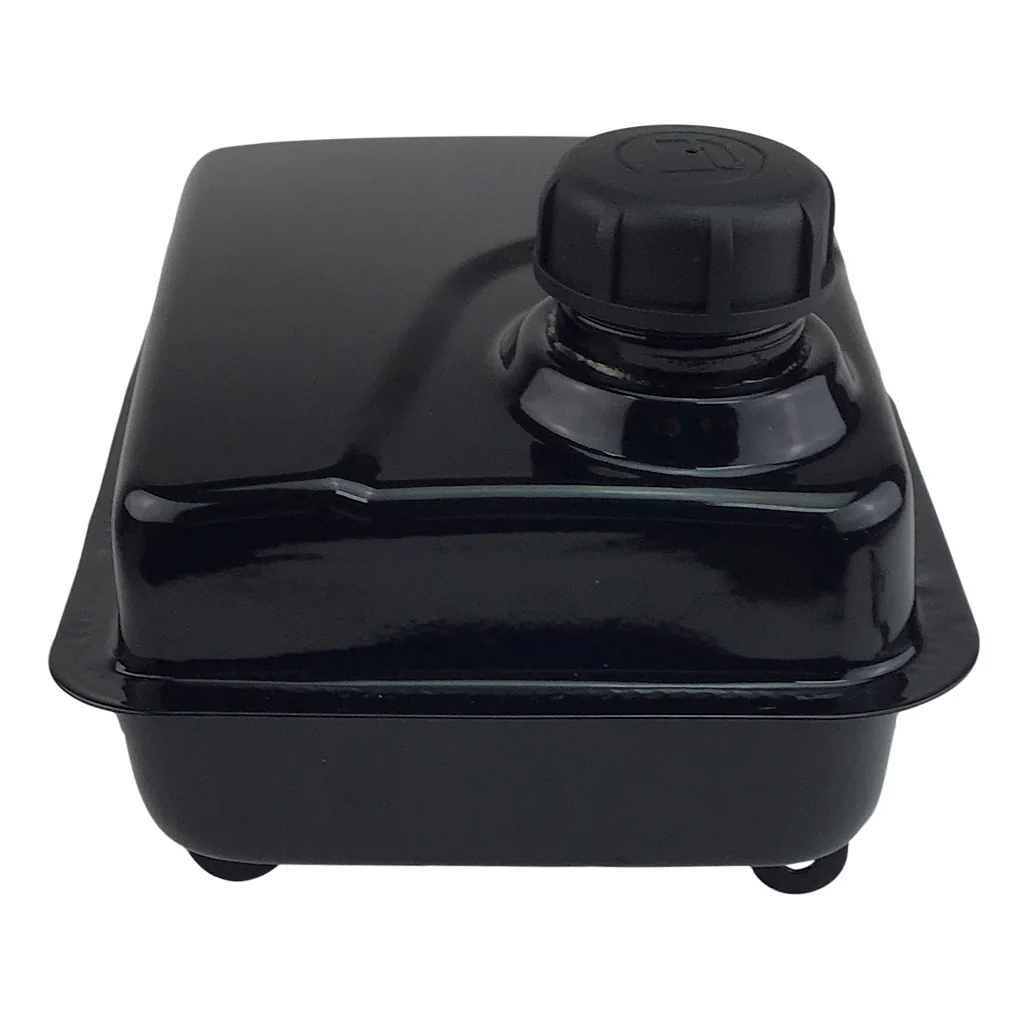

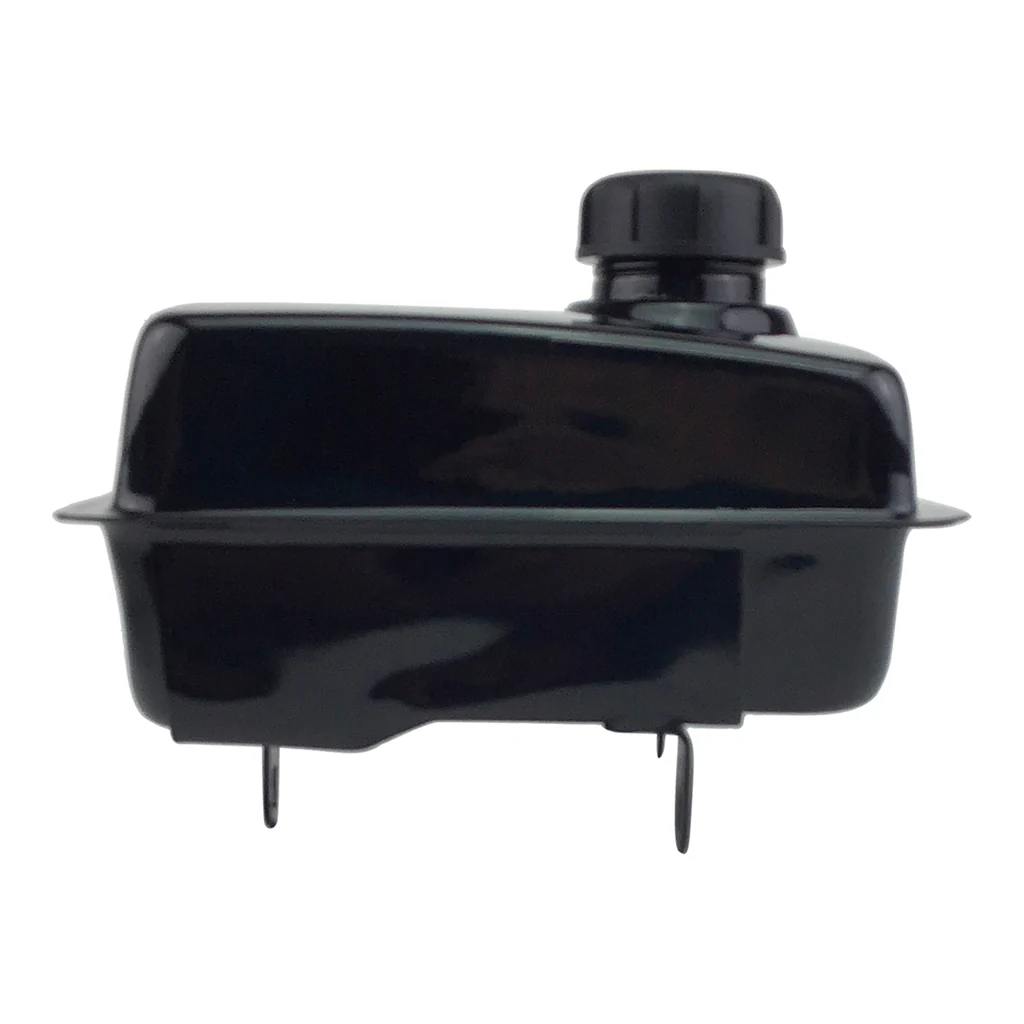

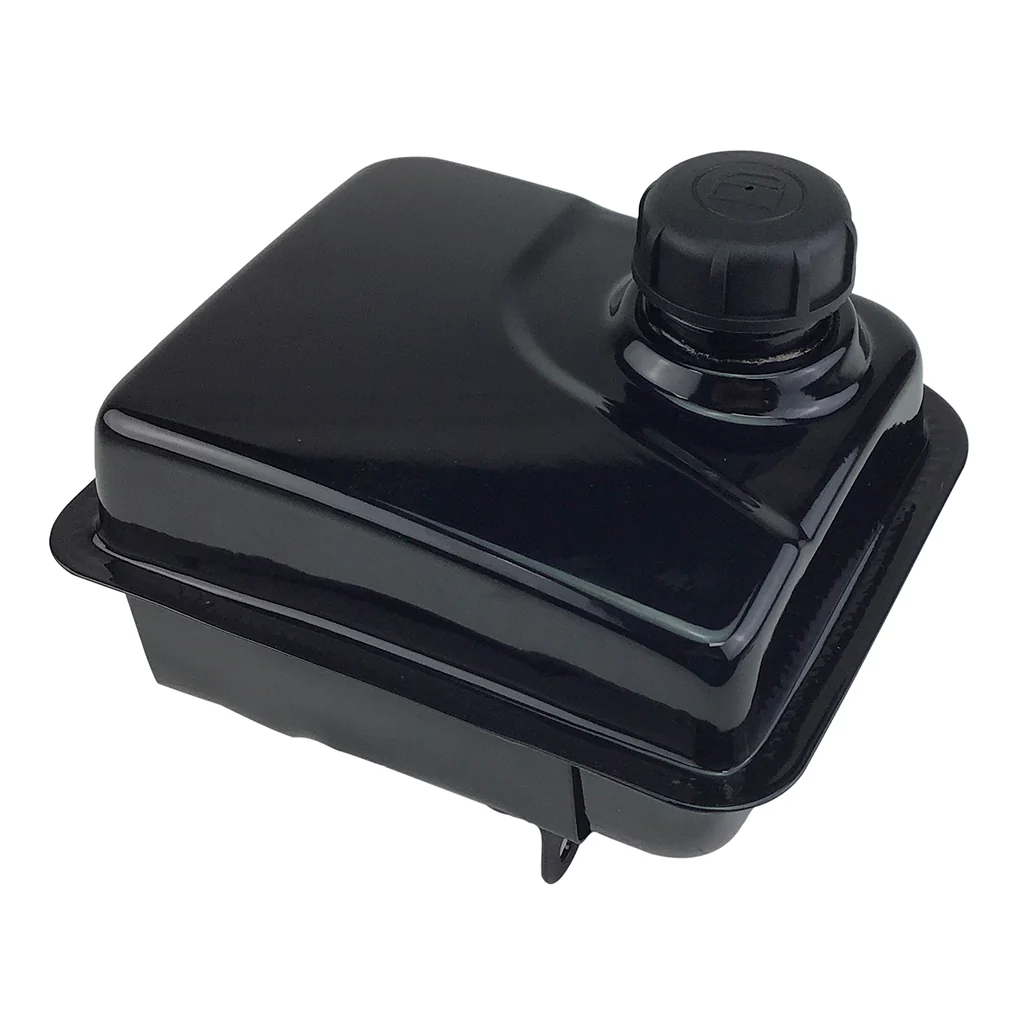

This replacement bike gas tank is for the Coleman CC100X mini bike.  Should fit anything with the 154F engine on it, but please check pictures and description before ordering.

Tank description:

• Metal
• Includes plastic fuel cap
• Screw on fuel cap is slightly off center
• Fuel cap threads are approximately 43mm
• Fuel tank has three tabs with 8mm oblong holes on bottom for mounting
• Threaded 14mm male fitting on bottom of tank
• Overall dimensions:  7.6 in. x 6.5 in. x 3.8 in. not including tabs and fuel inlet
• 16610/154F  16500/154F
• PDLZ060166100002
• https://www.vmcchineseparts.com/products/chinese-fuel-petcock-gas-shut-off-valve-version-9

All measurements are approximate due to the difficulty in measuring the tank. May fit other 154F engines.  Please use the pictures and measurements to match your tank.

Shipping details:

Do you need your gas tank fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.   Buy now!
