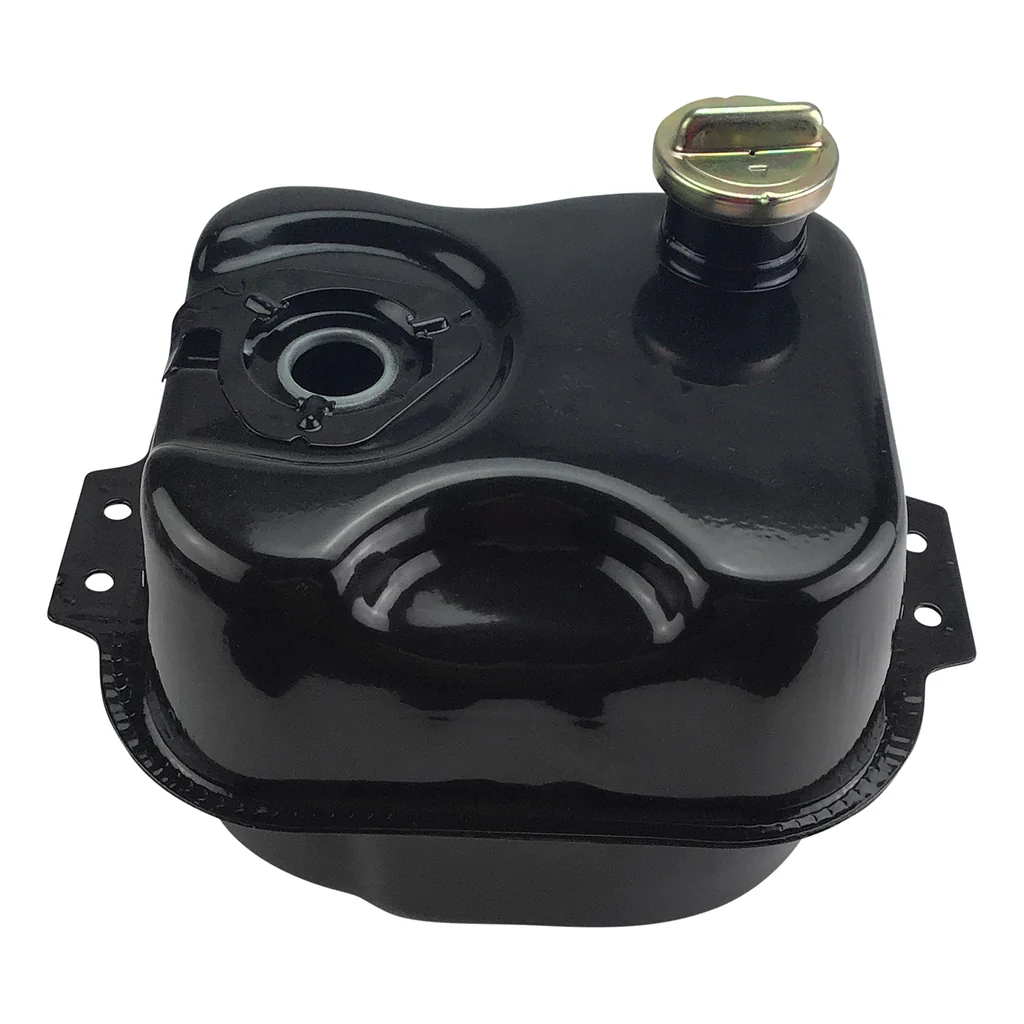

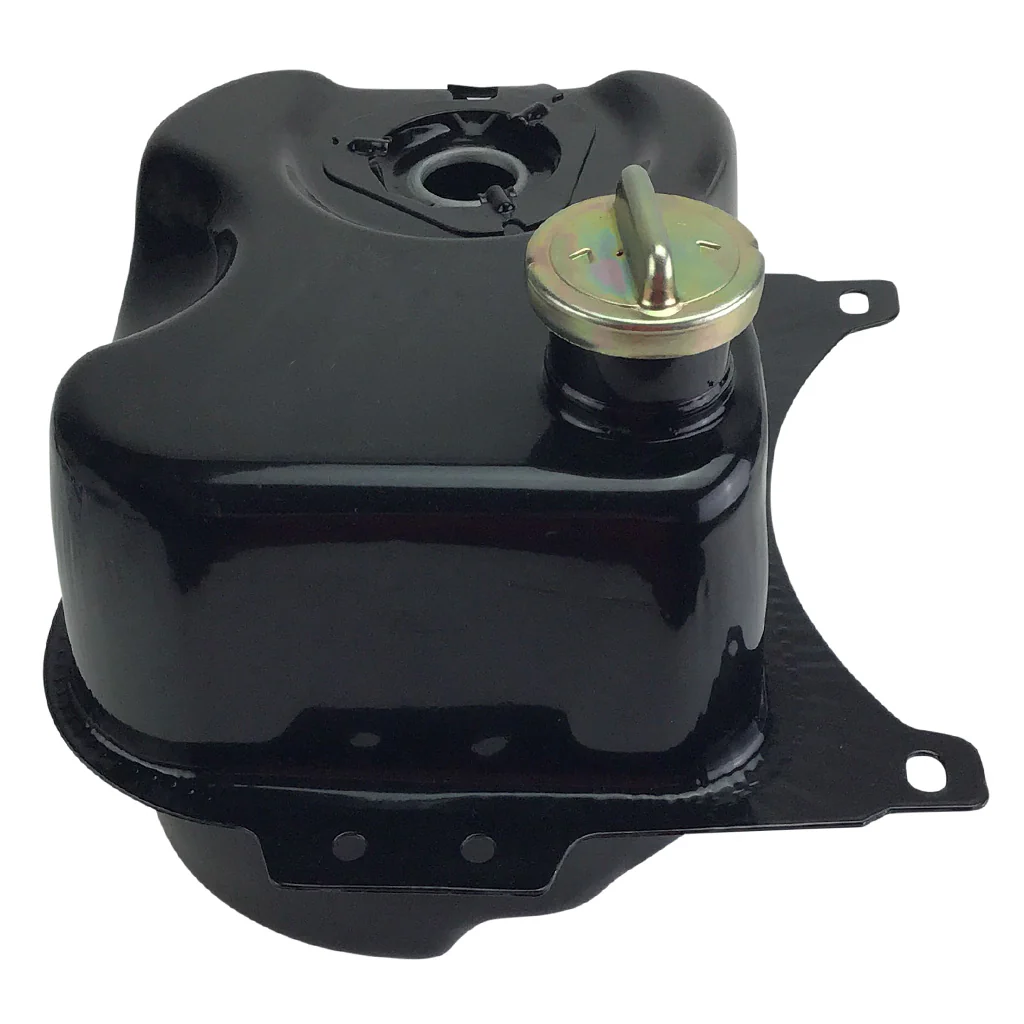

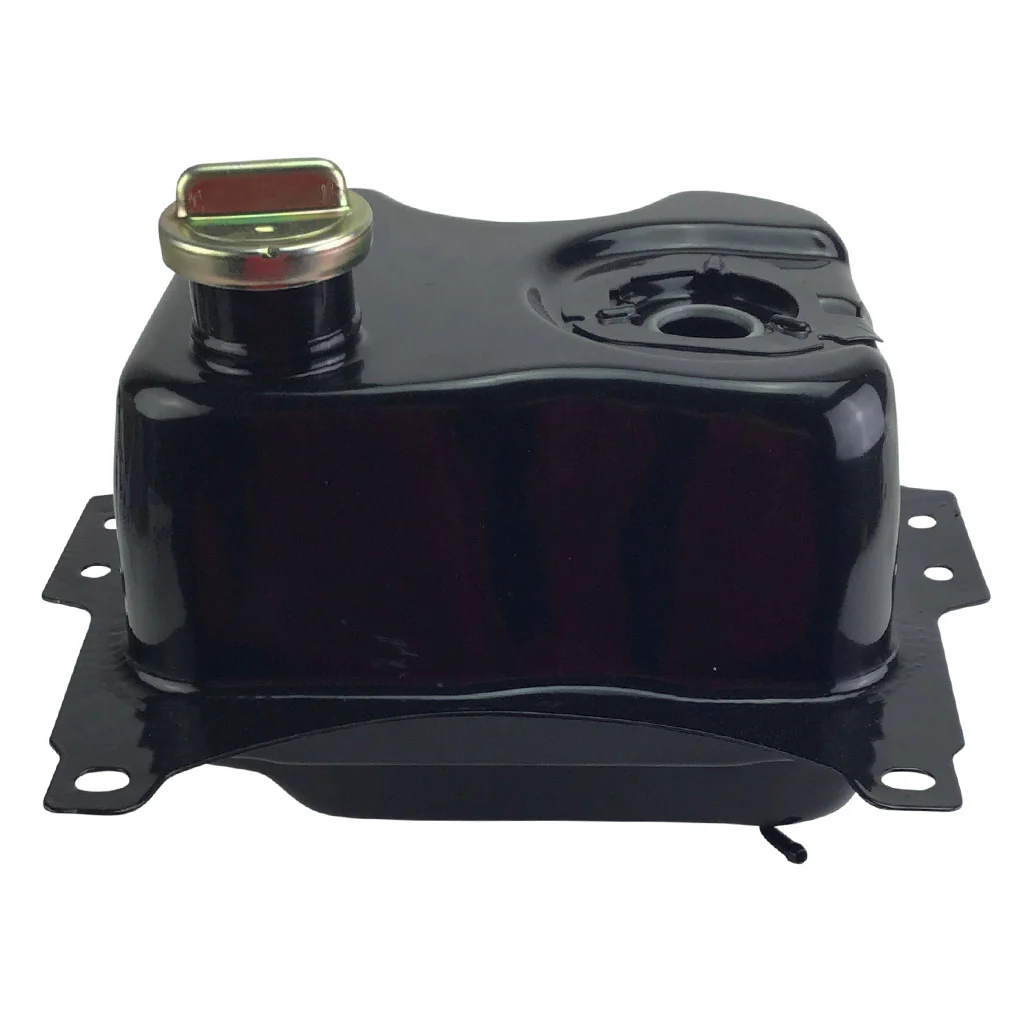

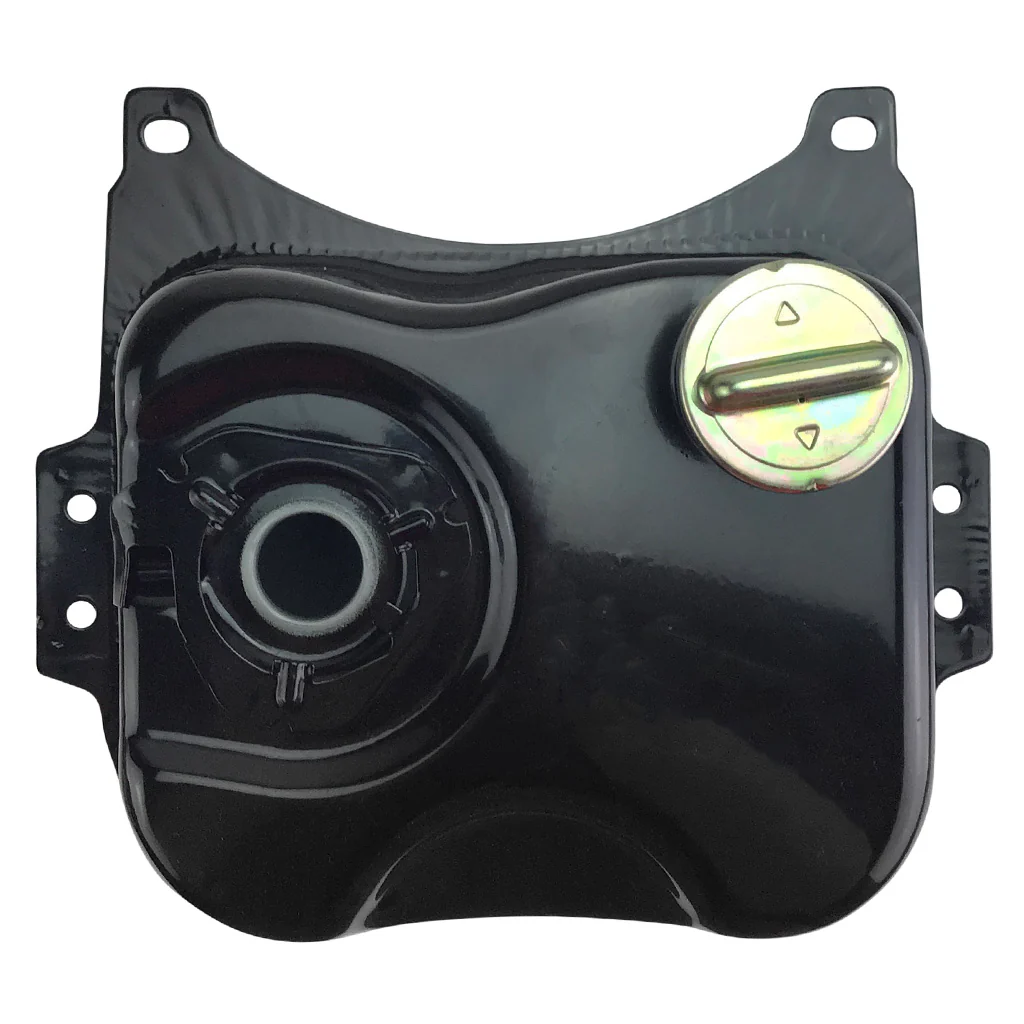

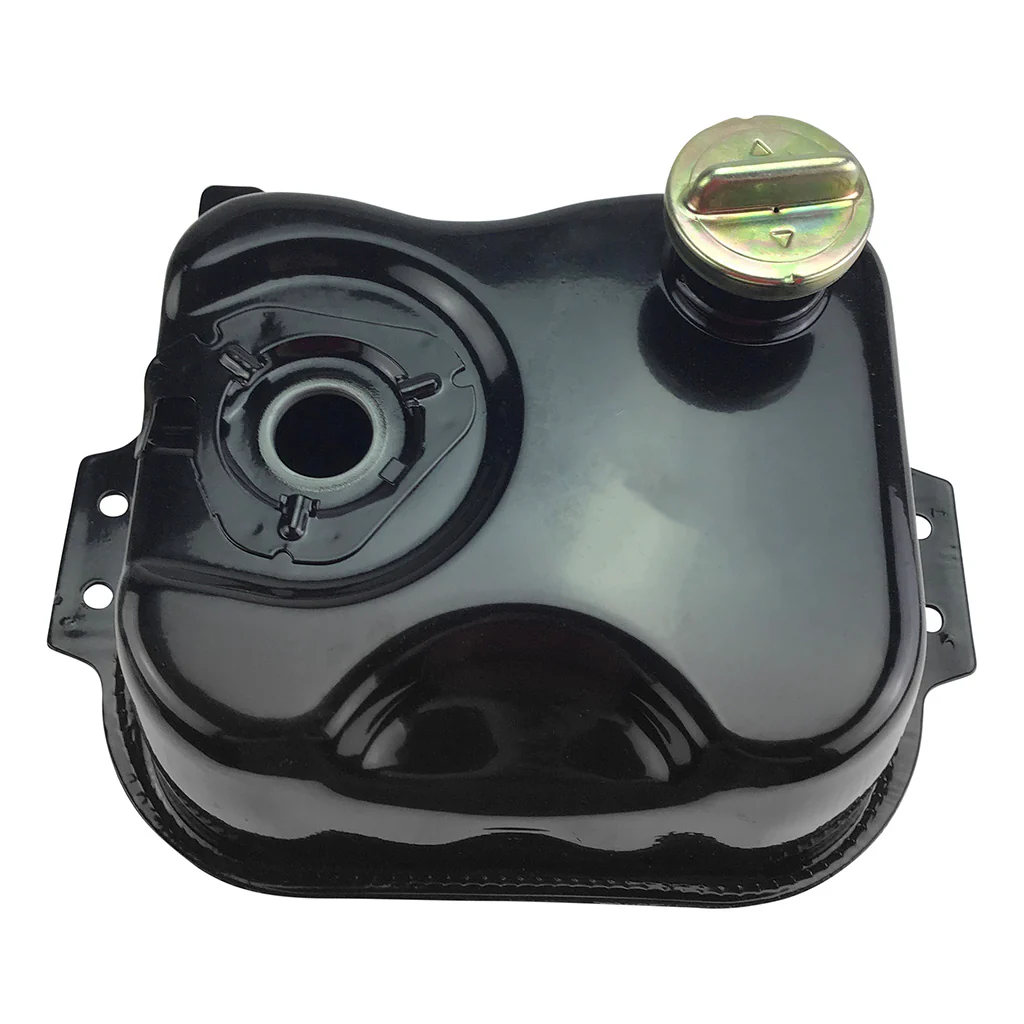

Fuel Tank for Tao Tao EVO 50cc Scooter

Version 608

This replacement gas / fuel tank fits many Chinese mopeds and scooters. This tank fits 50cc and 150cc models.

This tank is identical to our tank #305 except this tank has NO nipple on the top of the tank.

Tank description:

• Metal
• Overall dimension are approximately: 11.0 in. W x 10.5 in. D x 6.5 in. H.  Does not include spout and nipples.  Fuel inlet is about an 1.25 inches high.
• Opening for fuel level sensor is 28.3mm (1.11 in) in diameter
• Single mounting tabs are 219mm (8.65 in) apart center-to-center
• Two sides have mounting tabs with two holes in each.  The holes are 33mm (1.3 in) center-to-center apart
• Does not include cap... but can be found HERE!

• There is no nipple on the top of the tank

• Nipple on bottom of tank for fuel outlet
• 104312

Please note where the nipples are at, particularly the fuel outlet on the bottom of the tank.  There are several of these tanks that are identical except for the placement of the fuel outlet and the nipple on the top that is used for overflow/ventilation.  The nipple on top can be capped if you don't need it, but the location of where the fuel leaves the tank may be important.

This tank is known to fit the Tao Tao EVO 50 scooter.  It fits other makes and models too.  Please look at the pictures and read the description before ordering.
