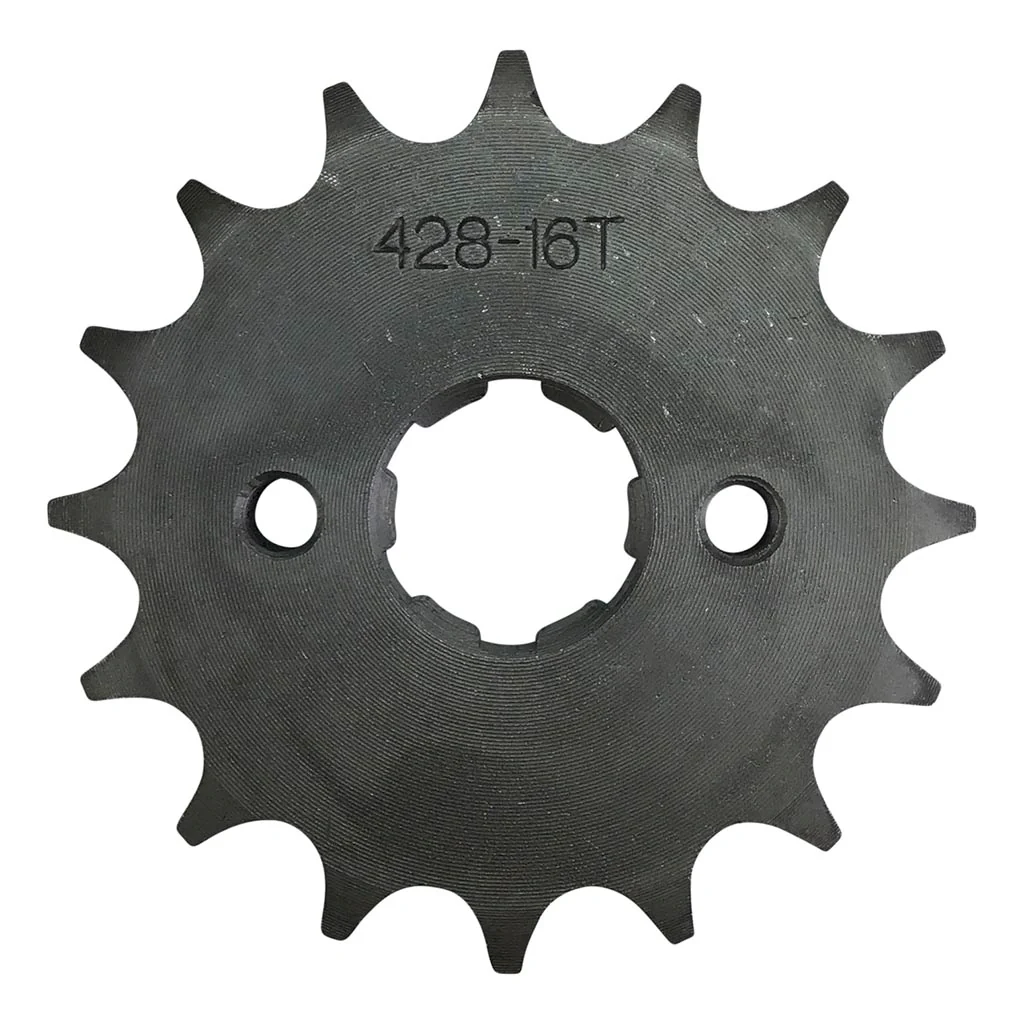

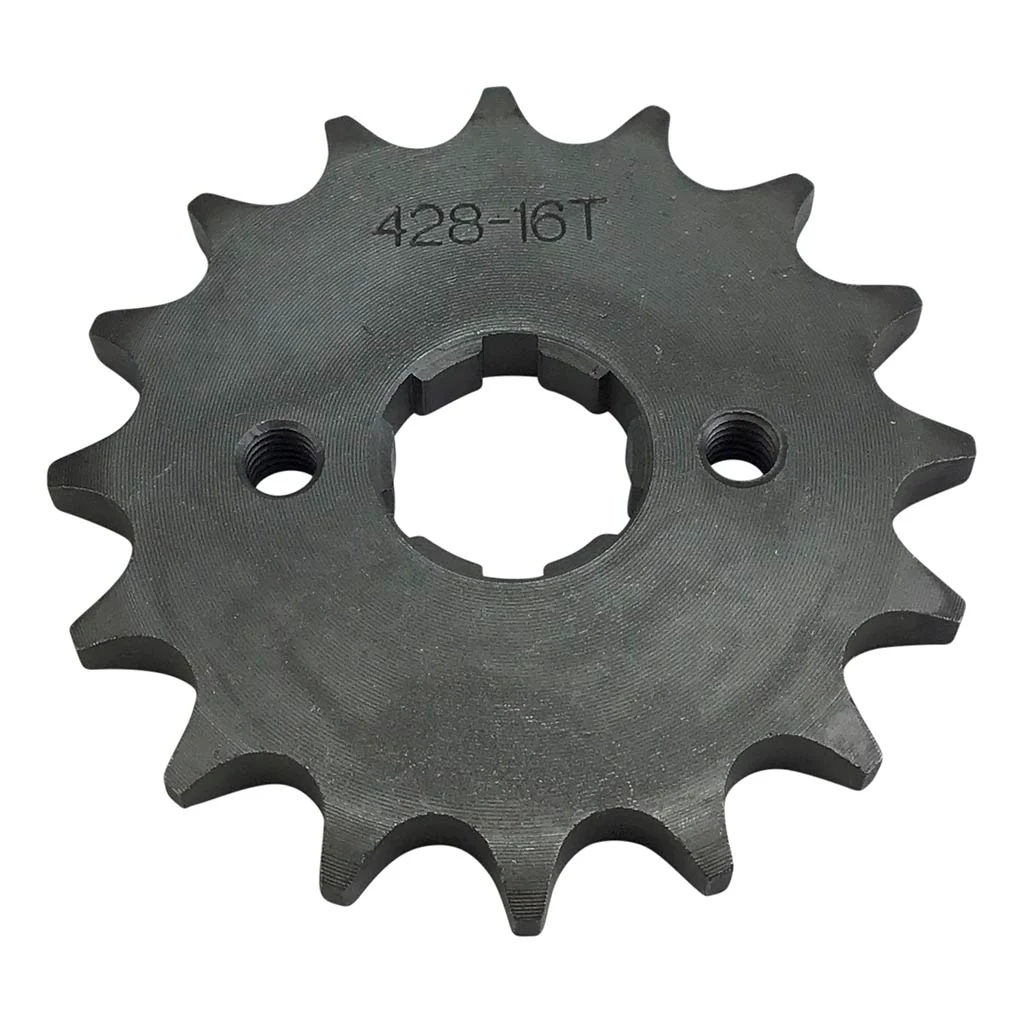

Front Sprocket 428-16 Tooth for 200cc 250cc Engine
ATV Front Sprocket - 428-16T 200cc 250cc
This front sprocket is used on the Chinese 200cc and 250cc engines. This sprocket has 16T and is compatible with the 428 chain ONLY.
Sprocket details:
- #428 chain
- 16 tooth
- OD: 68.9mm (2.71 in)
- ID: 20.1mm (0.79 in) valley to valley
- ID: 17.6mm (0.69 in) tooth to tooth
- (2) 6mm threaded holes 34mm (1.3 in) apart center-to-center
- Uses retainer with bolts (not included)
Be sure to measure your chain or current sprocket before ordering. 428 chain has 1/2 inch pitch and 0.335 inch roller diameter. Most Chinese sprockets have the chain size and teeth count stamped into the metal.
ATV Front Sprocket - 428-16T 200cc 250cc
This front sprocket is used on the Chinese 200cc and 250cc engines. This sprocket has 16T and is compatible with the 428 chain ONLY.
Sprocket details:
- #428 chain
- 16 tooth
- OD: 68.9mm (2.71 in)
- ID: 20.1mm (0.79 in) valley to valley
- ID: 17.6mm (0.69 in) tooth to tooth
- (2) 6mm threaded holes 34mm (1.3 in) apart center-to-center
- Uses retainer with bolts (not included)
Be sure to measure your chain or current sprocket before ordering. 428 chain has 1/2 inch pitch and 0.335 inch roller diameter. Most Chinese sprockets have the chain size and teeth count stamped into the metal.
Original: $7.95
-65%$7.95
$2.78Description
ATV Front Sprocket - 428-16T 200cc 250cc
This front sprocket is used on the Chinese 200cc and 250cc engines. This sprocket has 16T and is compatible with the 428 chain ONLY.
Sprocket details:
- #428 chain
- 16 tooth
- OD: 68.9mm (2.71 in)
- ID: 20.1mm (0.79 in) valley to valley
- ID: 17.6mm (0.69 in) tooth to tooth
- (2) 6mm threaded holes 34mm (1.3 in) apart center-to-center
- Uses retainer with bolts (not included)
Be sure to measure your chain or current sprocket before ordering. 428 chain has 1/2 inch pitch and 0.335 inch roller diameter. Most Chinese sprockets have the chain size and teeth count stamped into the metal.
