Exhaust System Assembly Tao Tao RAPTOR and REX ATVs

Version 803

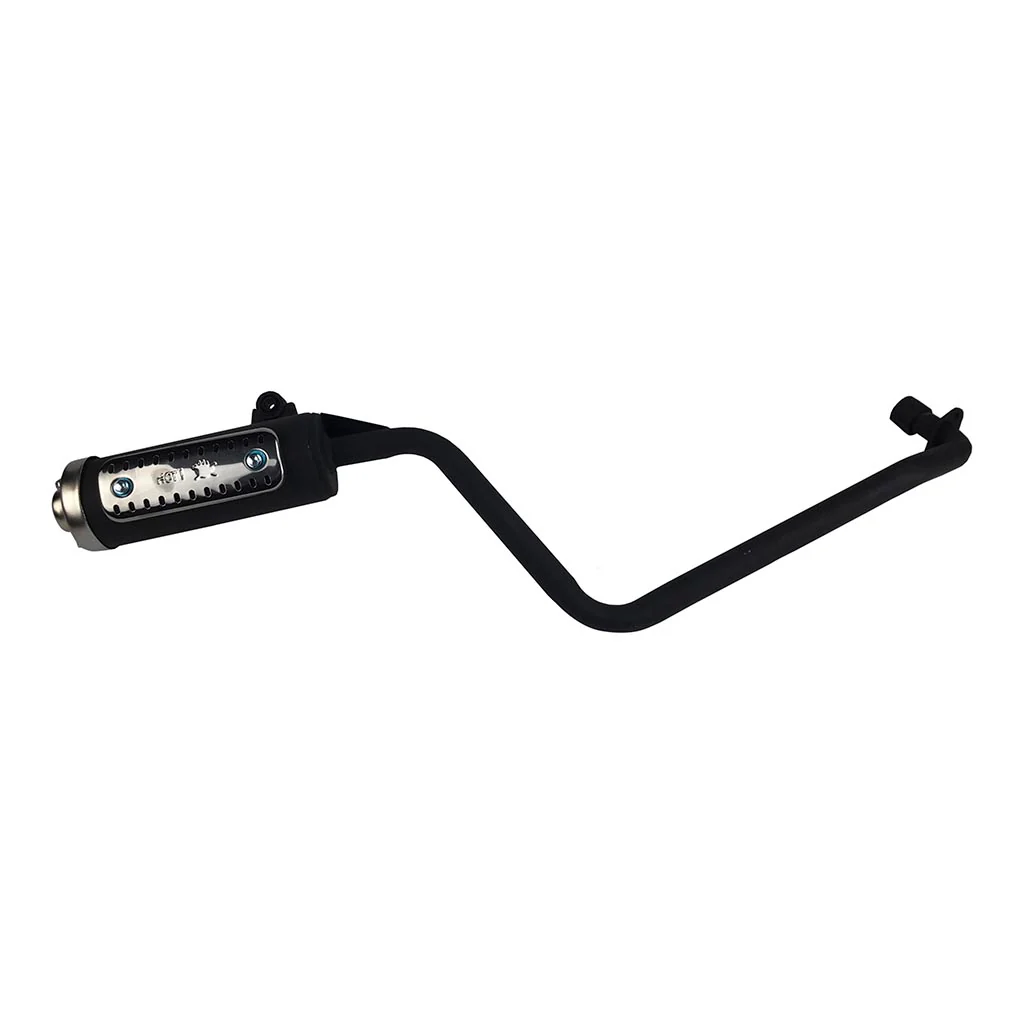

Brand new complete exhaust assembly for the Tao Tao RAPTOR and REX atvs. Please check specs and pictures to help match your exhaust.

Exhaust details:

• Muffler is about 9.0 inches long from spout to where the pipe starts
• Muffler is 3.0 inches in diameter
• Assembly is approximately 32.0 inches long measured straight across
• OD of pipe: 0.98 in.

• Pipe exits muffler at the center rear of muffler and goes straight for 3.0 inches
• Makes a 45° and travels straight for another 8 inches
• Makes a 90° turn and runs for 11 inches

• Another 45° turn and a run of about 5.5 inches

• A 90° turn and a 2 inch run to the end
• Chrome end of muffler and spout with screen spark arrestor
• Exhaust has a heat shield on pipe covering about 5.75 inches

• Holes in flange are about 1.7 inches center-to-center apart
• Bracket with bushing near the pipe end of the muffler
• 116308

Fits the Coleman AT125-EX, AT125-UT and AT125Y atv.

Fits the Tao Motor Raptor and Rex atvs.

Shipping details:

This exhaust system only ships STANDARD SHIPPING and ships to lower 48 states only.
