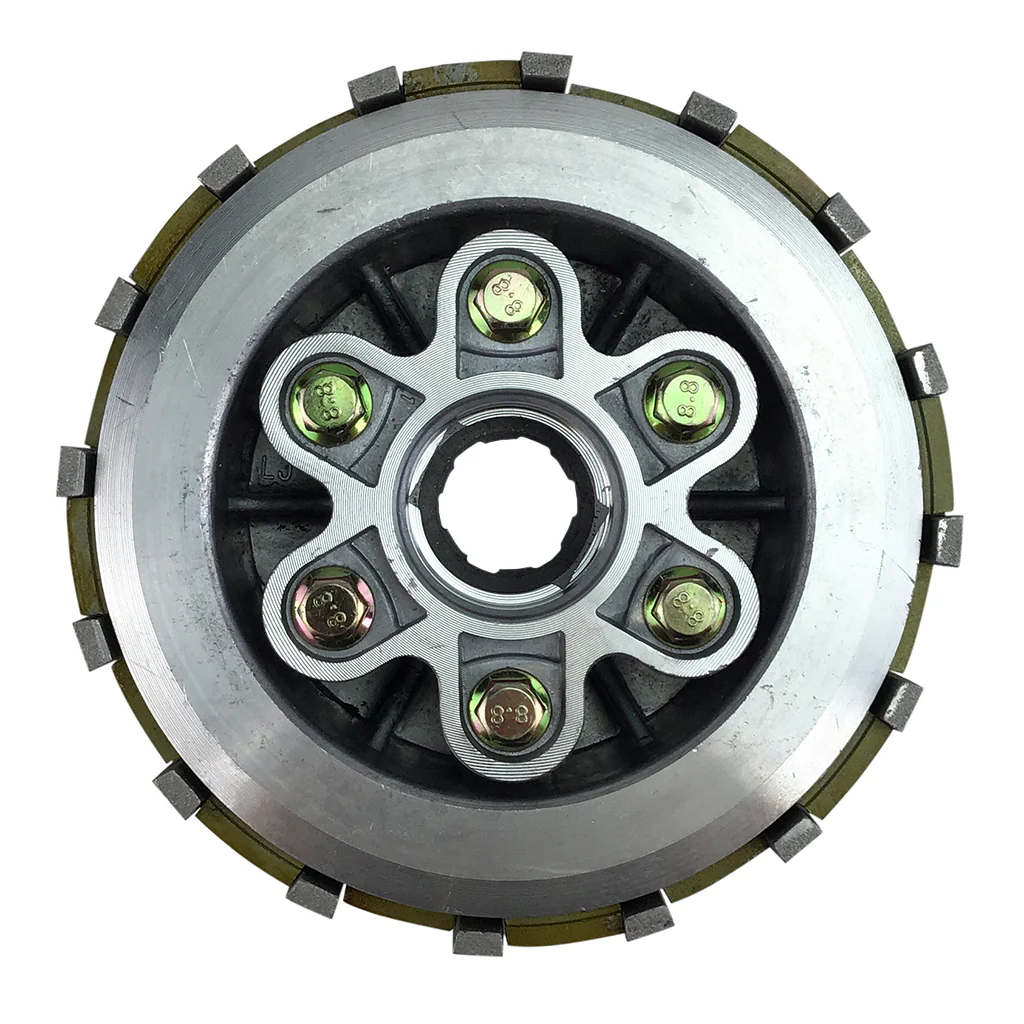

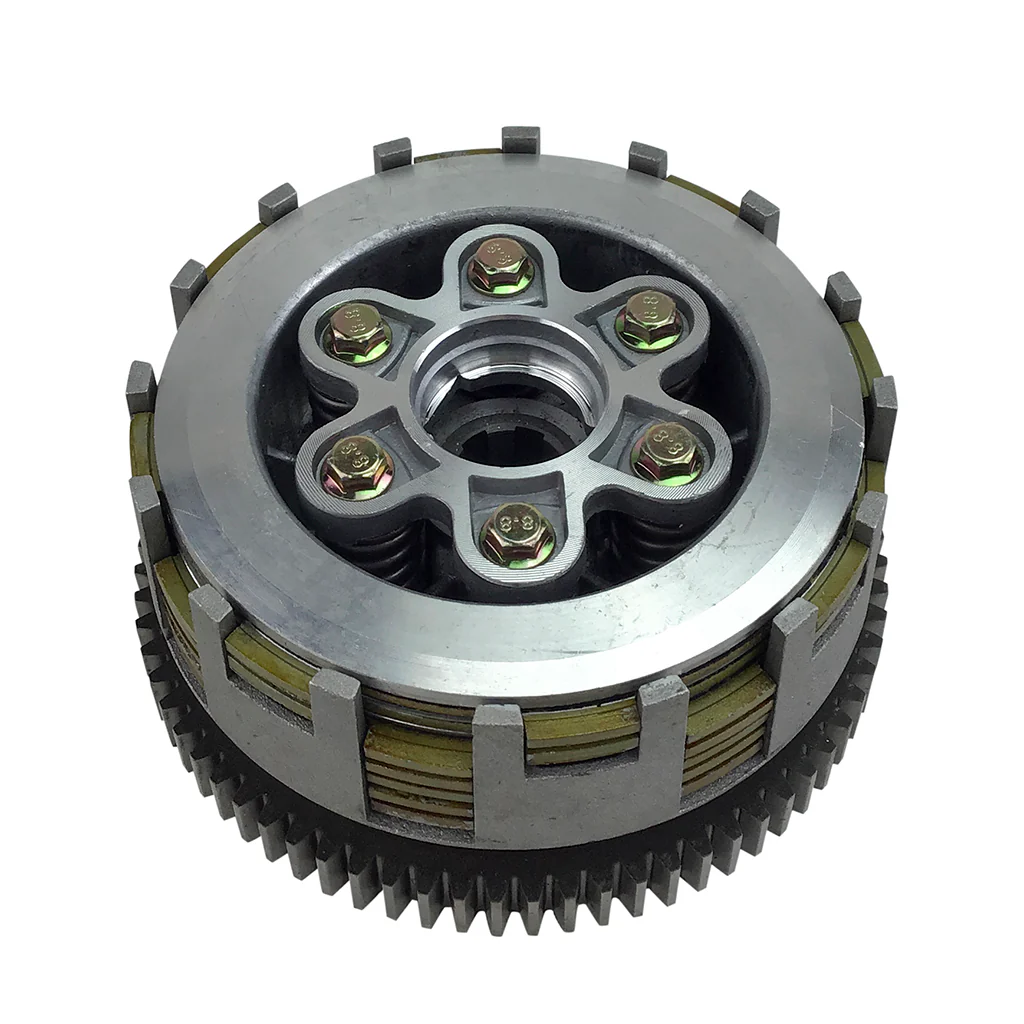

ATV Clutch - 7 Plate - 300cc

Version 63

Clutch assembly #63 is replacement clutch for 300cc Chinese manufactured brands and models. Very popular in go-karts and scooters. Used in some atvs.

Clutch details:

• 300cc

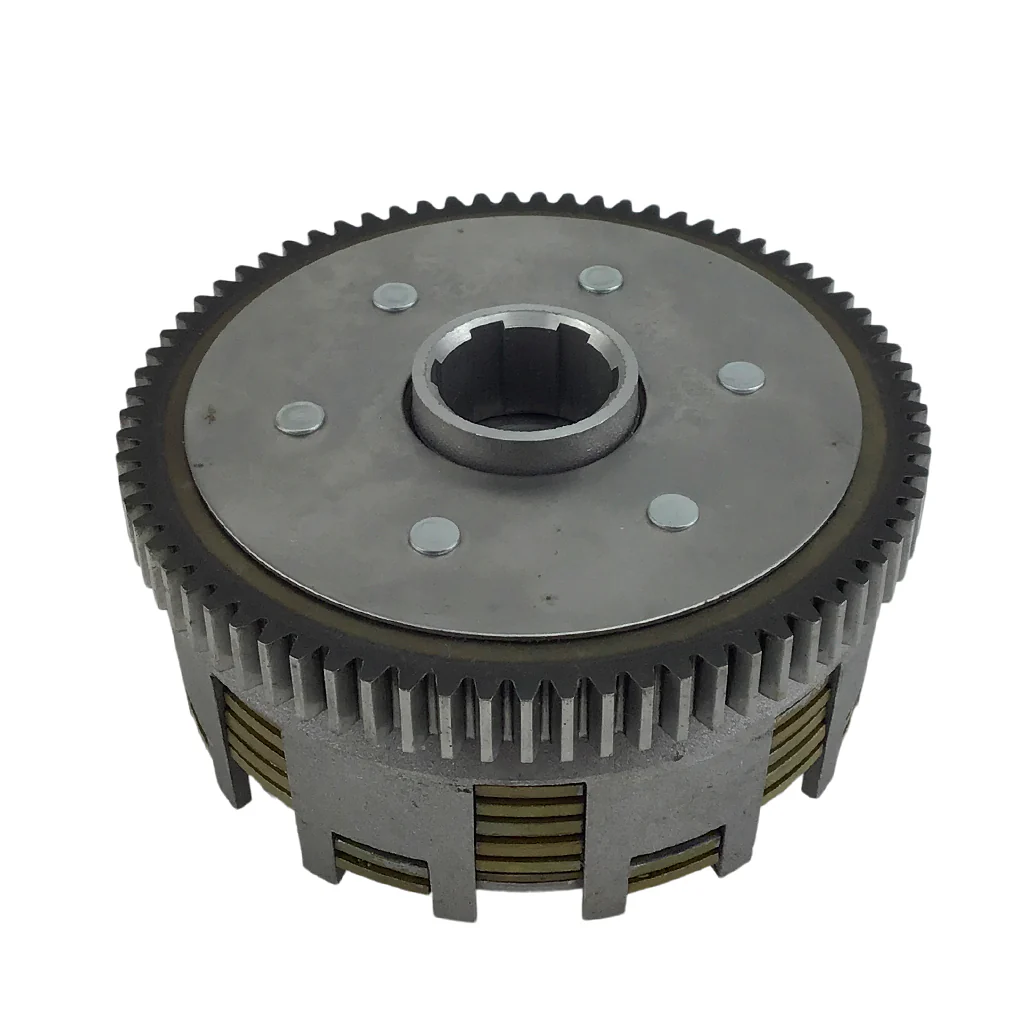

• 7 plate - 5 plates together next to gear, 2 plates offset
• 6 bolt
• OD: 114mm (4.49 in) plate assy
• OD: 125mm (4.91 in) gear
• 6 spline inner and outer shafts
• ID: 23mm gear side peak-to-peak
• ID: 25mm gear side valley-to-valley
• ID 13mm plate assy peak-to-peak
• ID: 15mm plate assy valley-to-valley

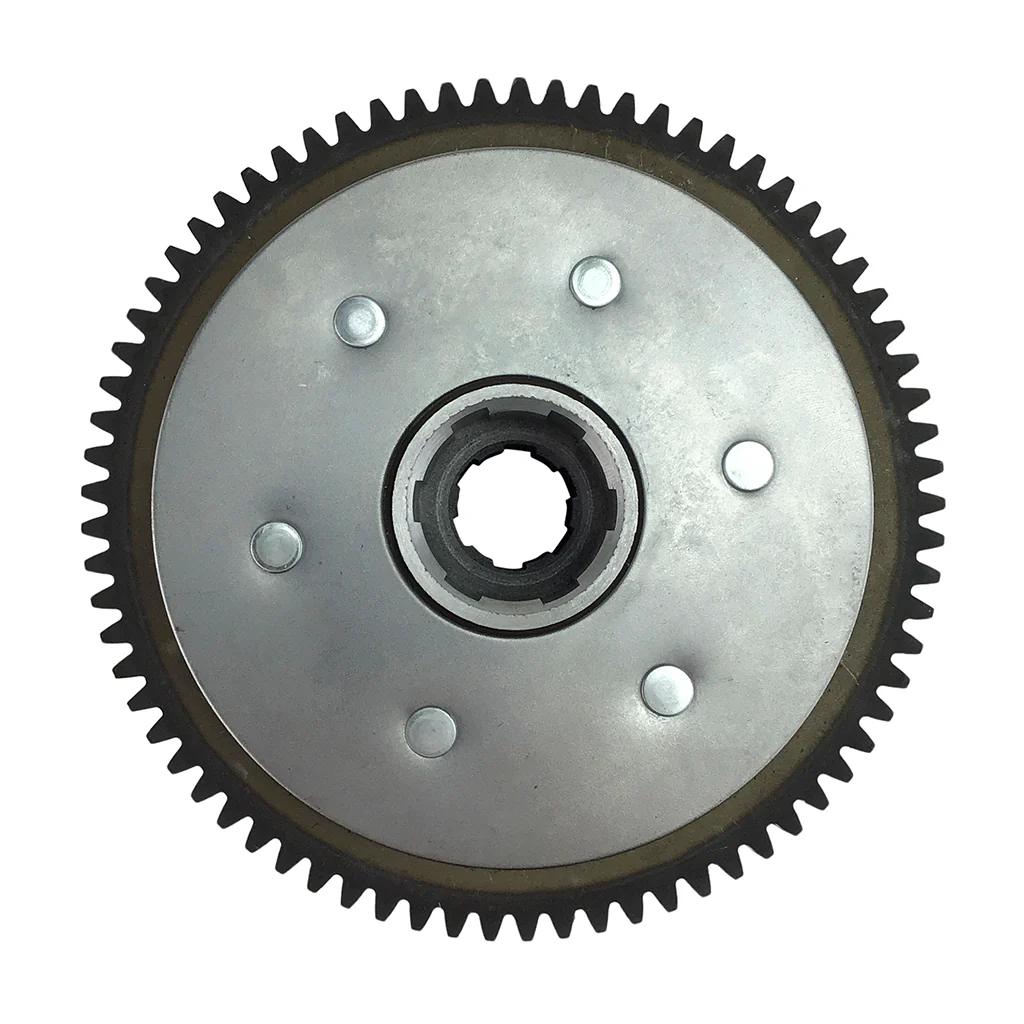

• 73 tooth gear
• 45mm ID of gear



Check pictures and measurements to be sure this is the correct clutch for your application.
