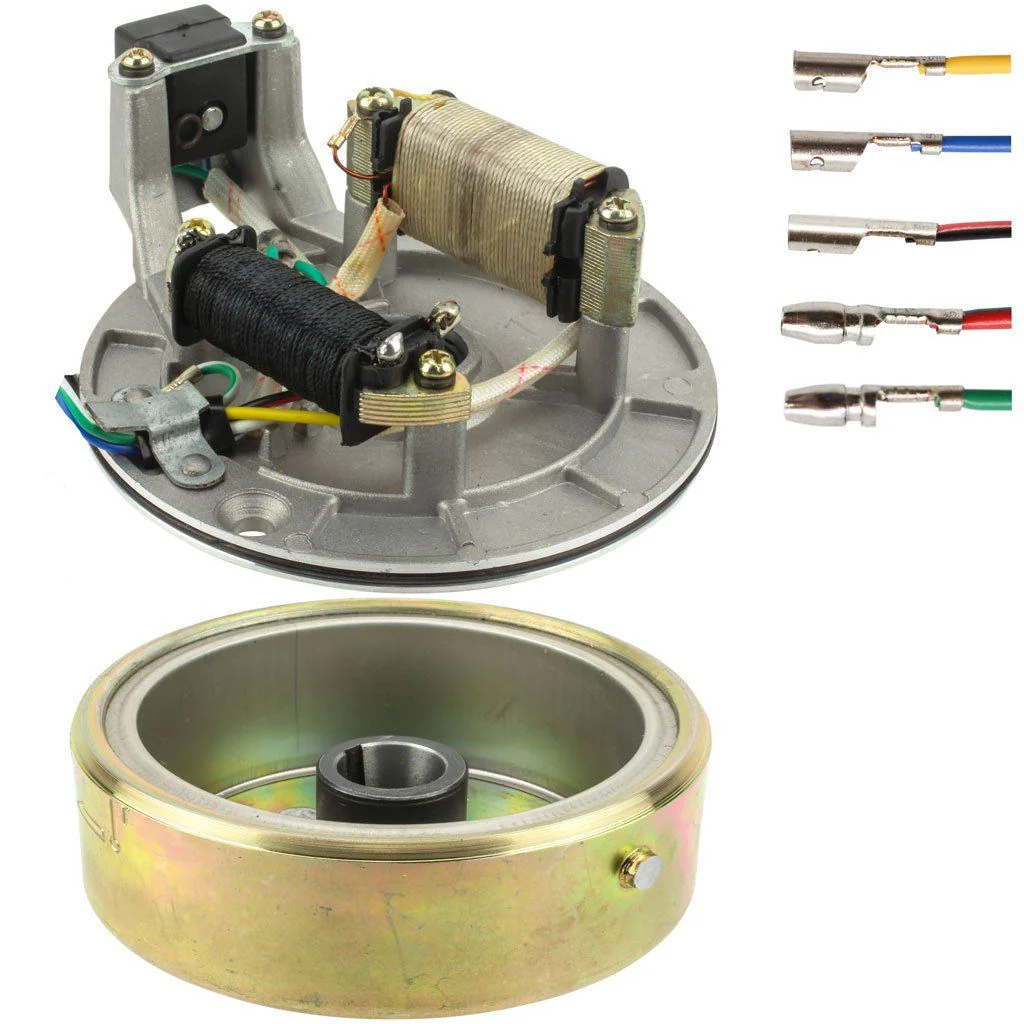

Stator Magneto / Flywheel Assy - 2 Coil - 50cc thru 125cc

This stator magneto / flywheel assembly is the replacement part for many 4-stroke Chinese atvs, dirt bikes and go-karts.

Stator description:

• 2 coil

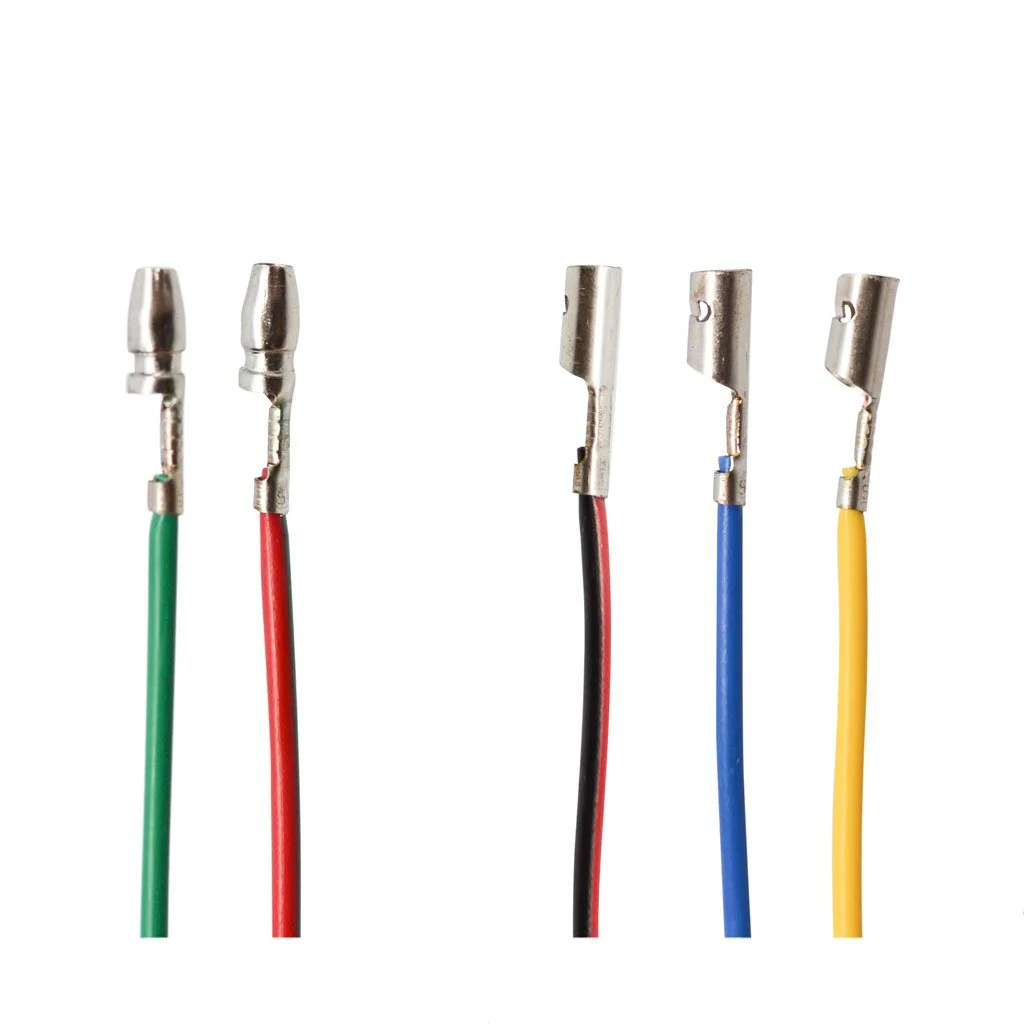

• 6 pigtail wires: 10.0 inch overall wire length
• 1 Short wire coming back out of harness... see pictures.
• 2 bolt mounting
• Pickup trigger
• Mounting measurement: center-to-center 10cm (3.98 in)

• Compatible with 110cc 4 stroke

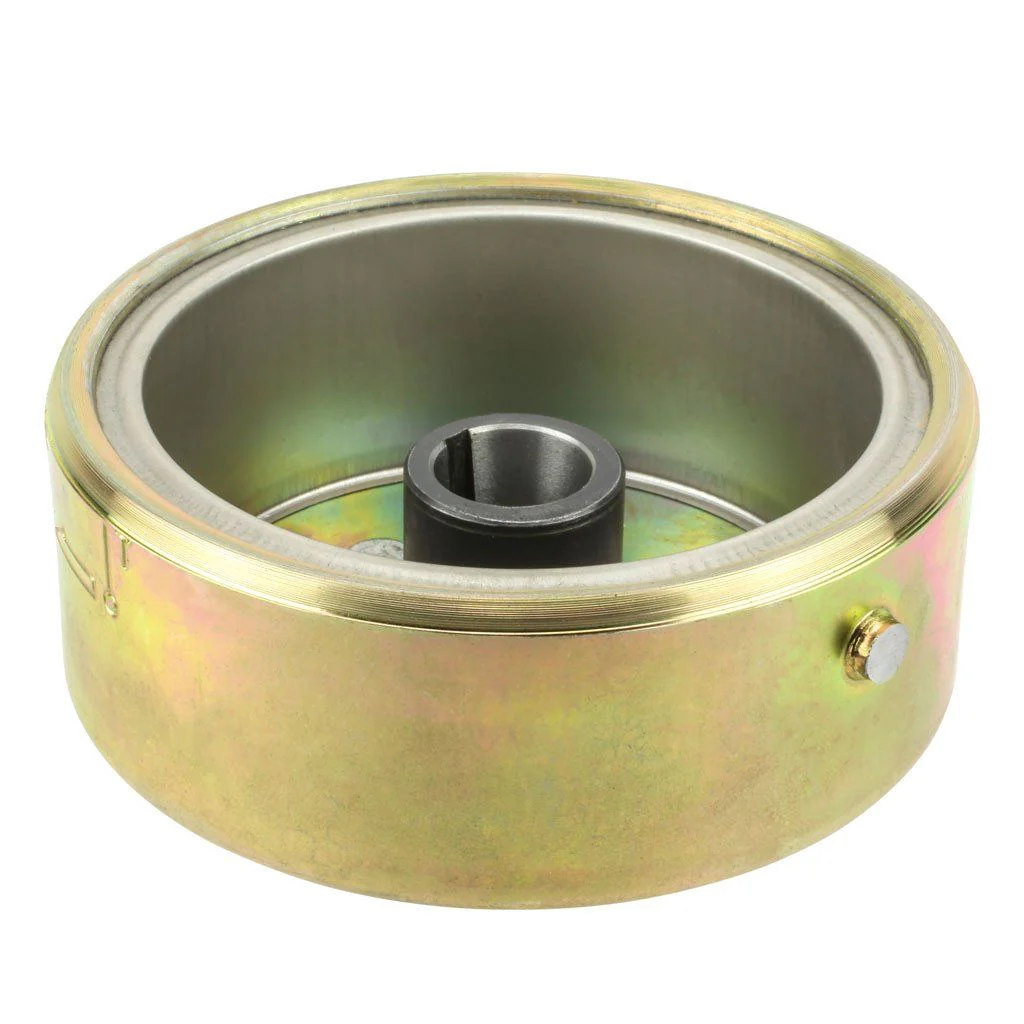

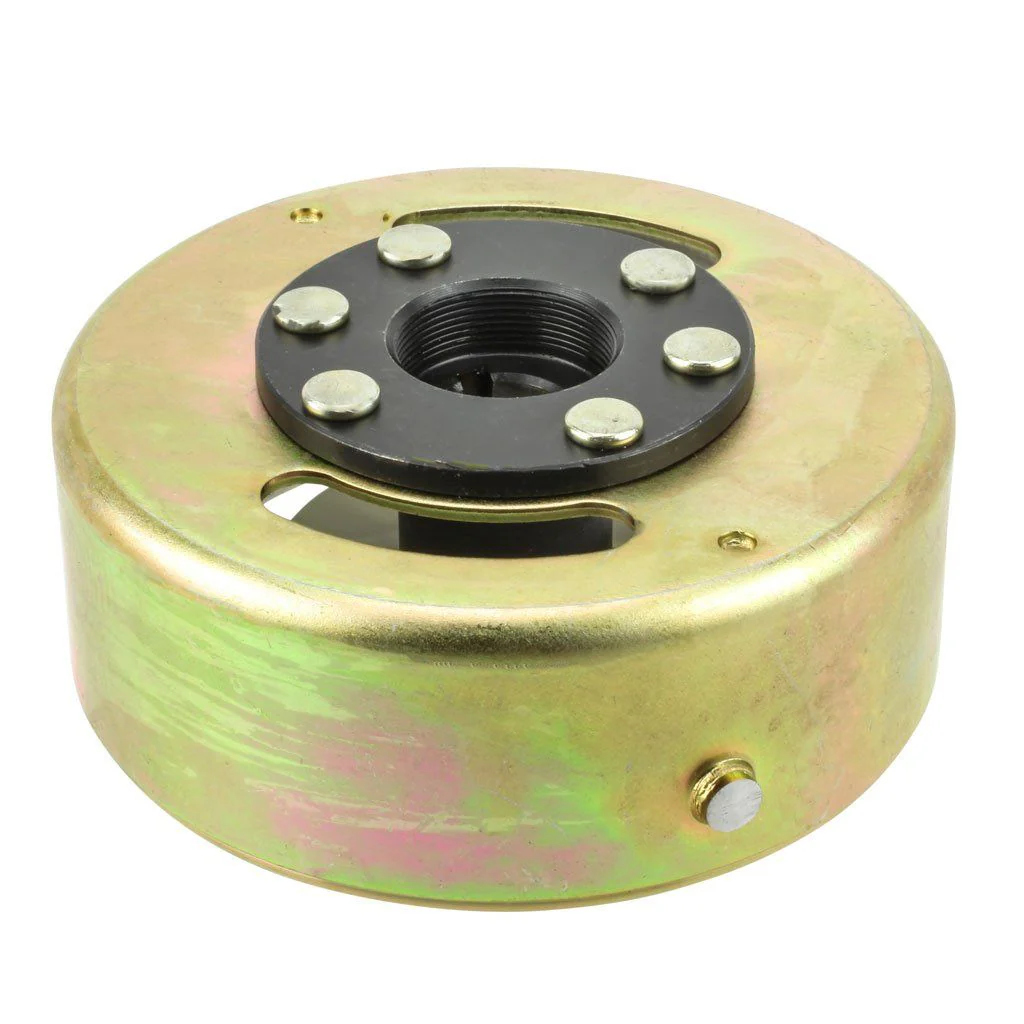

Flywheel description:

• Outside height of brass: 42mm (1.65 in)

• Overall OD including tab: 112.2mm (4.4 in)

• Overall OD not including tab: 109mm (4.32 in)

• ID of magnetic area: 86.35mm (3.4 in)

• OD of inside hole: 27.7mm (1.09 in)

• ID of inside hole: 18.6mm (0.73 in)

• Cutout flywheel key notch.
• OD of starter clutch: 79.8mm (3.14 in)


Shipping details:

Do you need your stator magneto fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.   Buy now!

Electrical parts are not returnable.  Please double check before ordering.
