Chinese 7 Coil Stator Magneto for 2-stroke Engines.

Version 29

This Chinese stator magneto is the replacement part for many 2-stroke engines.   The stator recharges the battery while the machine is in use, like an alternator in a car.  Please use detail pictures and measurements to match your stator.

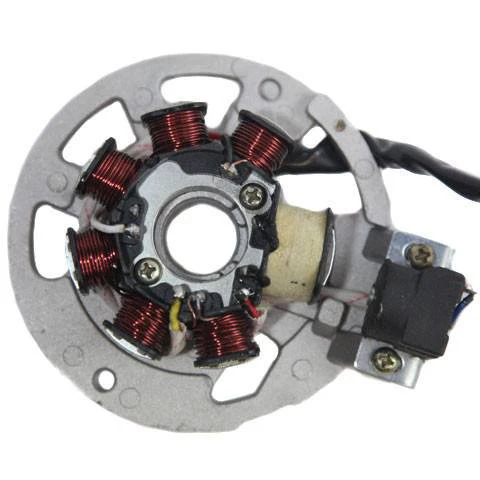

Stator description:

• 7 coil

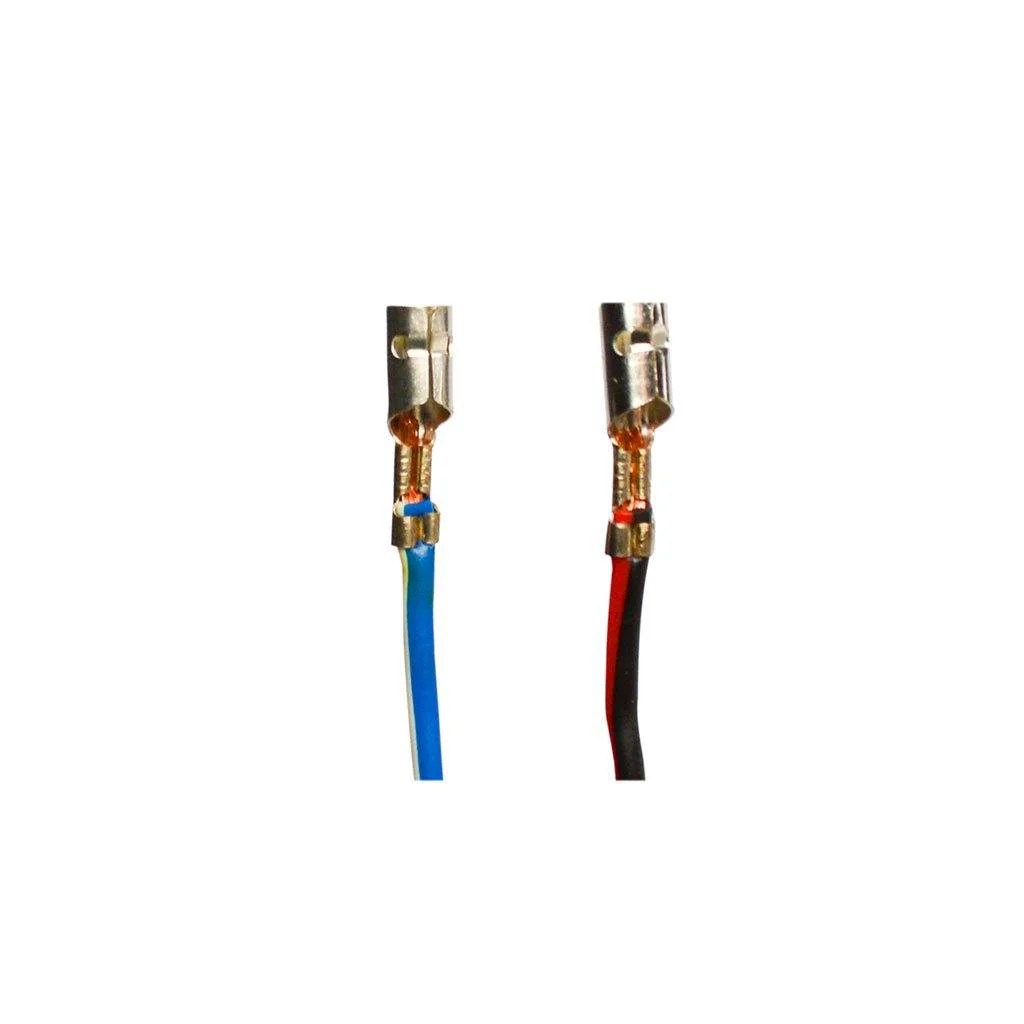

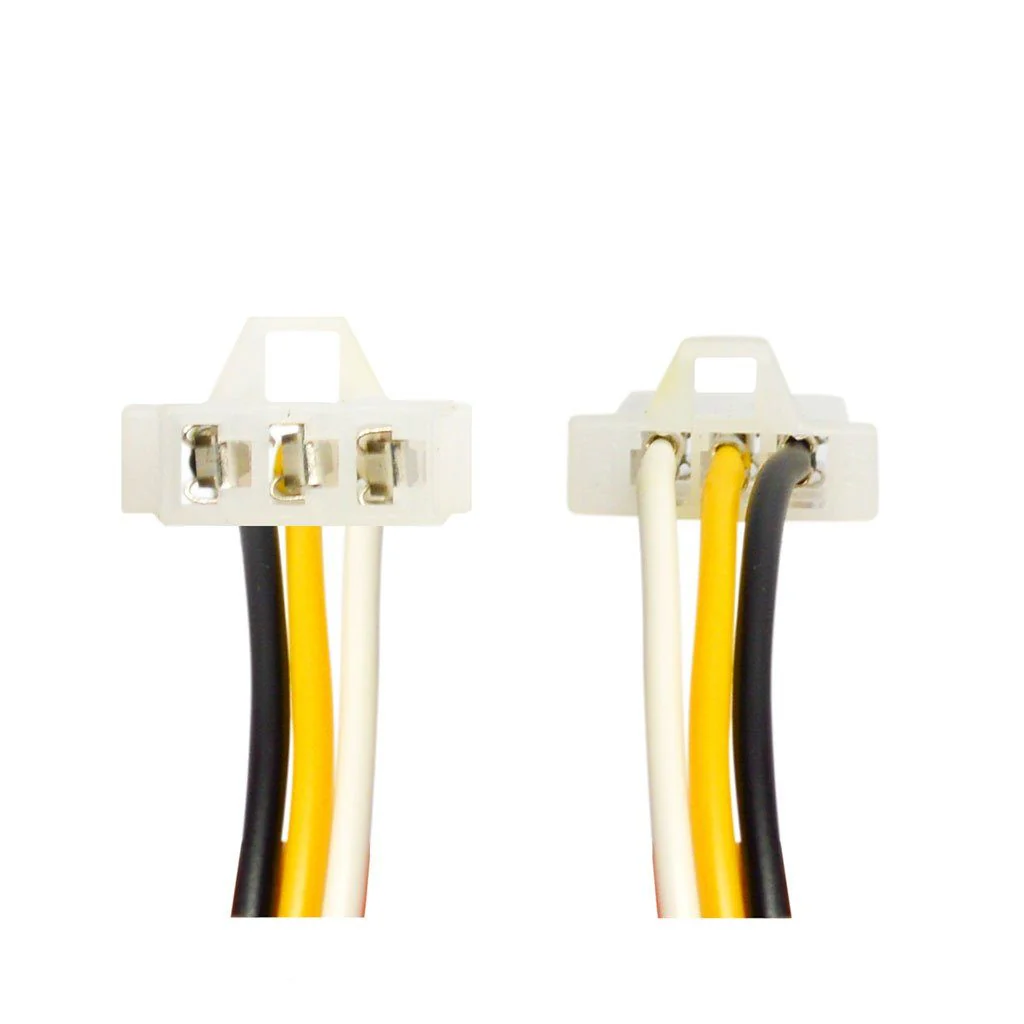

• 5 wires (3 plug and 2 pigtails)
• 2 bolt mounting plate
• Pick up trigger
• Stator center hole measurement: 28mm (1.10 in)

• Stator overall measurement:  81mm (3.19 in)

• Single coil height: 23mm (.91 in)

• Plate diameter: 117.5mm (4.625 in) not including the trigger mount tab
• Mounting measurement: [plate] center-to-center 104mm (4.09 in)

• Plate center hole diameter: 22mm (.87 in)

• Compatible with 2 stroke

Shipping details:

Do you need your stator magneto fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.  Buy now!

Electrical parts are not returnable.  Please double check before ordering.
