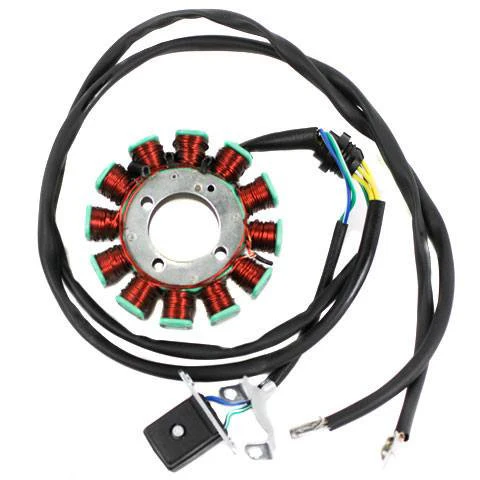

Chinese 12 Coil Stator Magneto for Bashan 200cc Engines.

Version 46

This Chinese stator magneto is the replacement part for many 4-stroke Chinese atvs, dirt bikes, go-karts and scooters.  The stator recharges the battery while the machine is in use, like an alternator in a car.  This stator fits 200cc models.

Stator description:

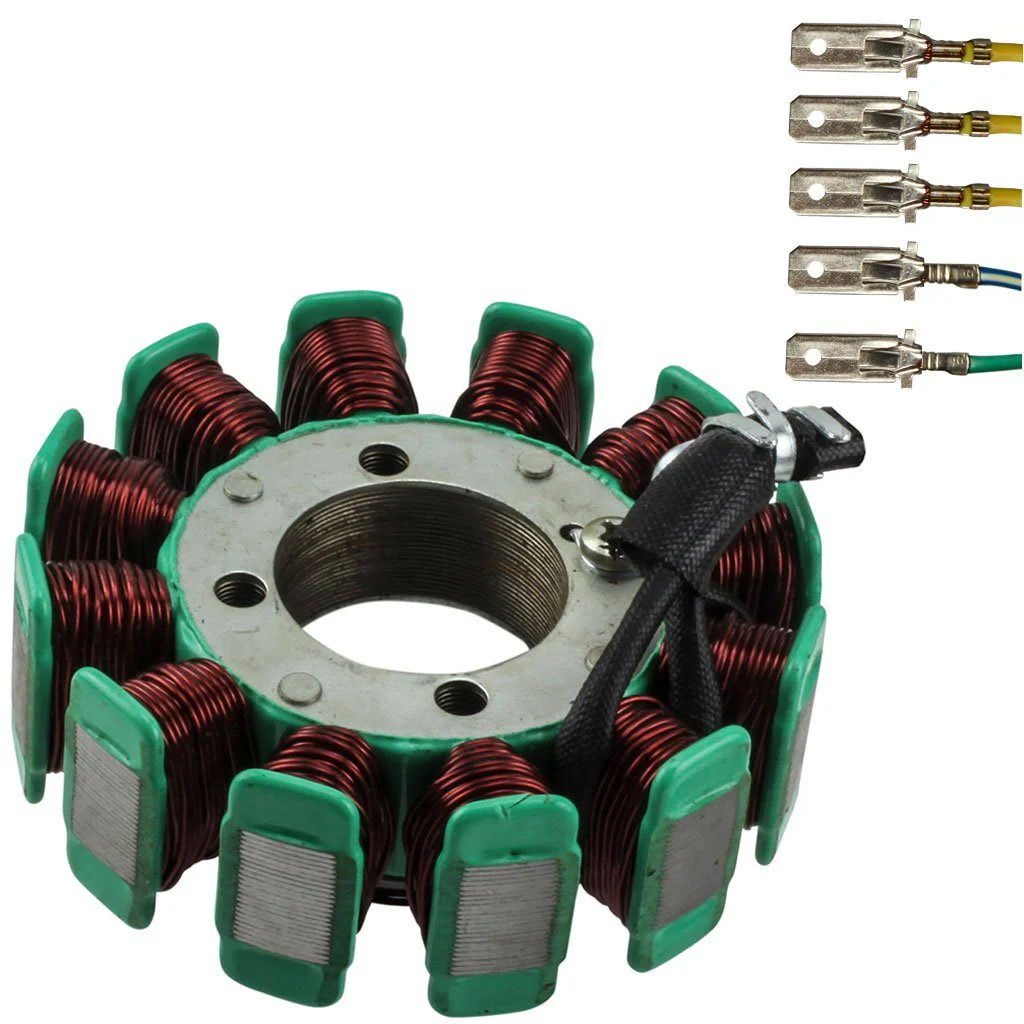

• 12 coil

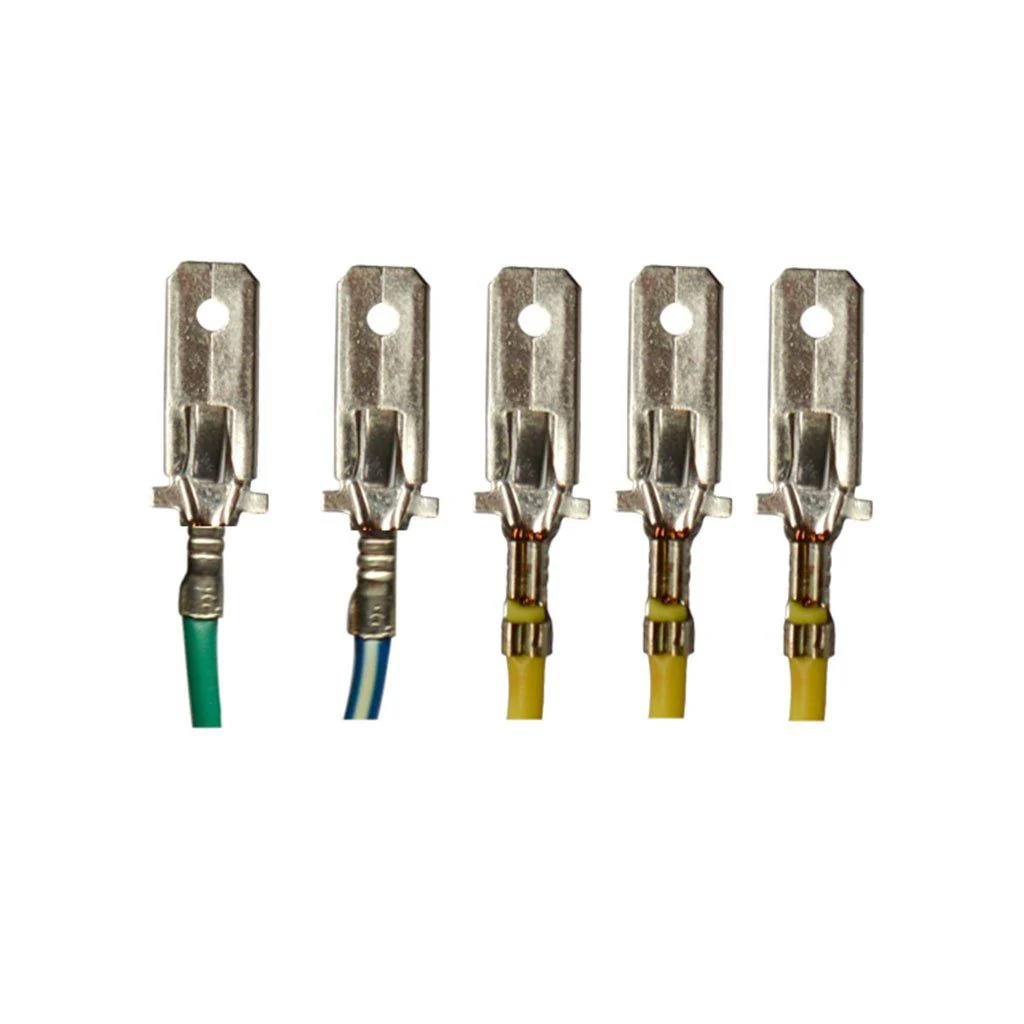

• 7 wires - 5 male spades - 2 pigtail (+2 trigger wire)
• Wiring harness is approximately 28 inches long
• 3 bolt mounting

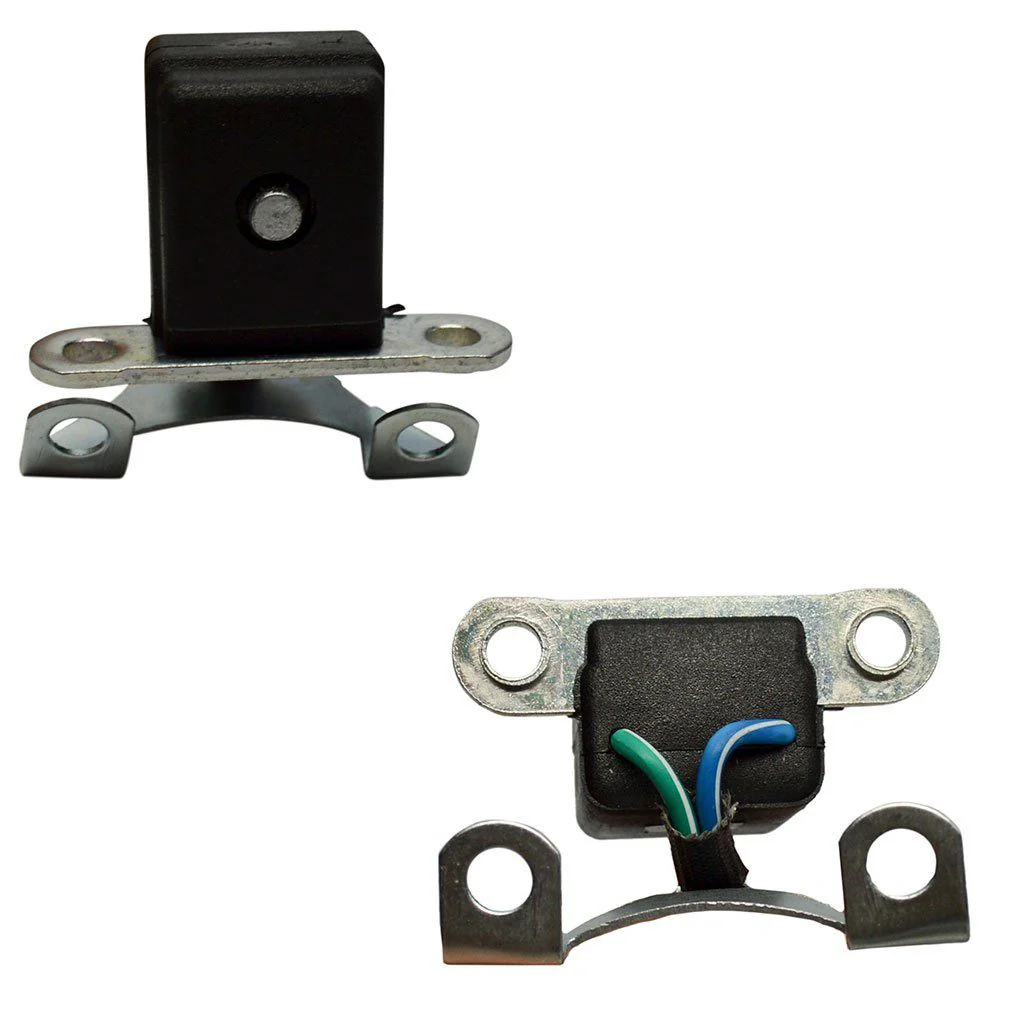

• Pick up trigger wire - two wire
• Center hole measurement: 32mm (1.26 in)

• Overall width: 88mm (3.47 in)

• Single coil height: 30.4mm (1.20 in)

• Mounting measurement: center-to-center diagonally 28.2mm (1.11 in)


Shipping details:

Do you need your stator magneto fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.  Buy now!

Electrical parts are not returnable.  Please double check before ordering.
