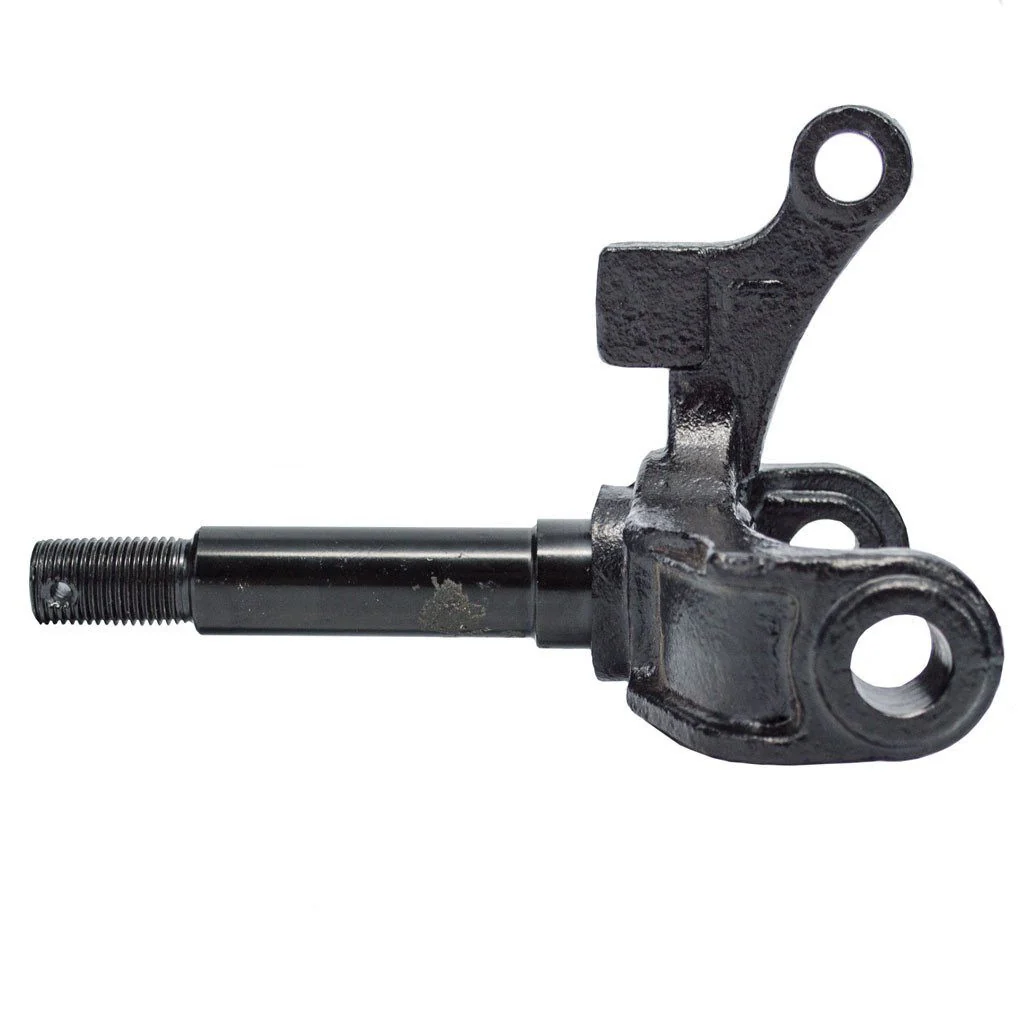

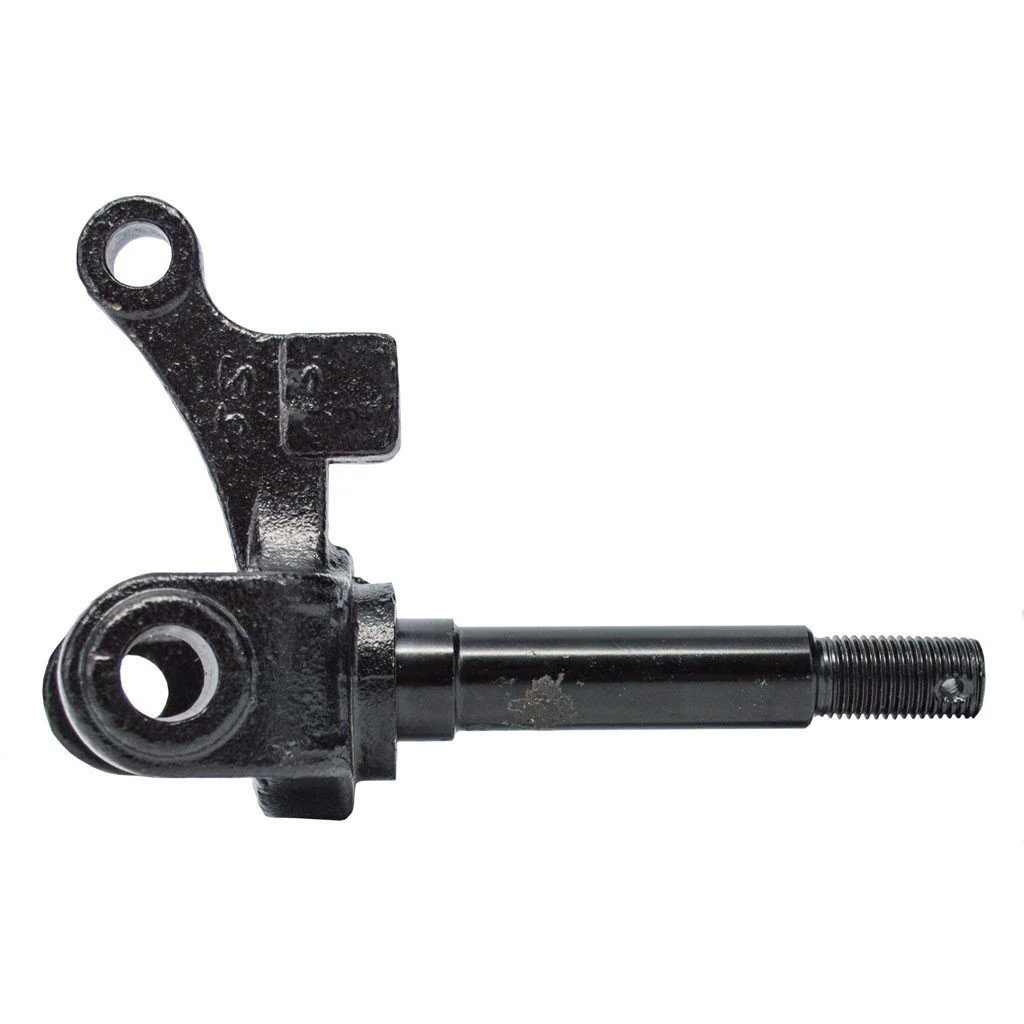

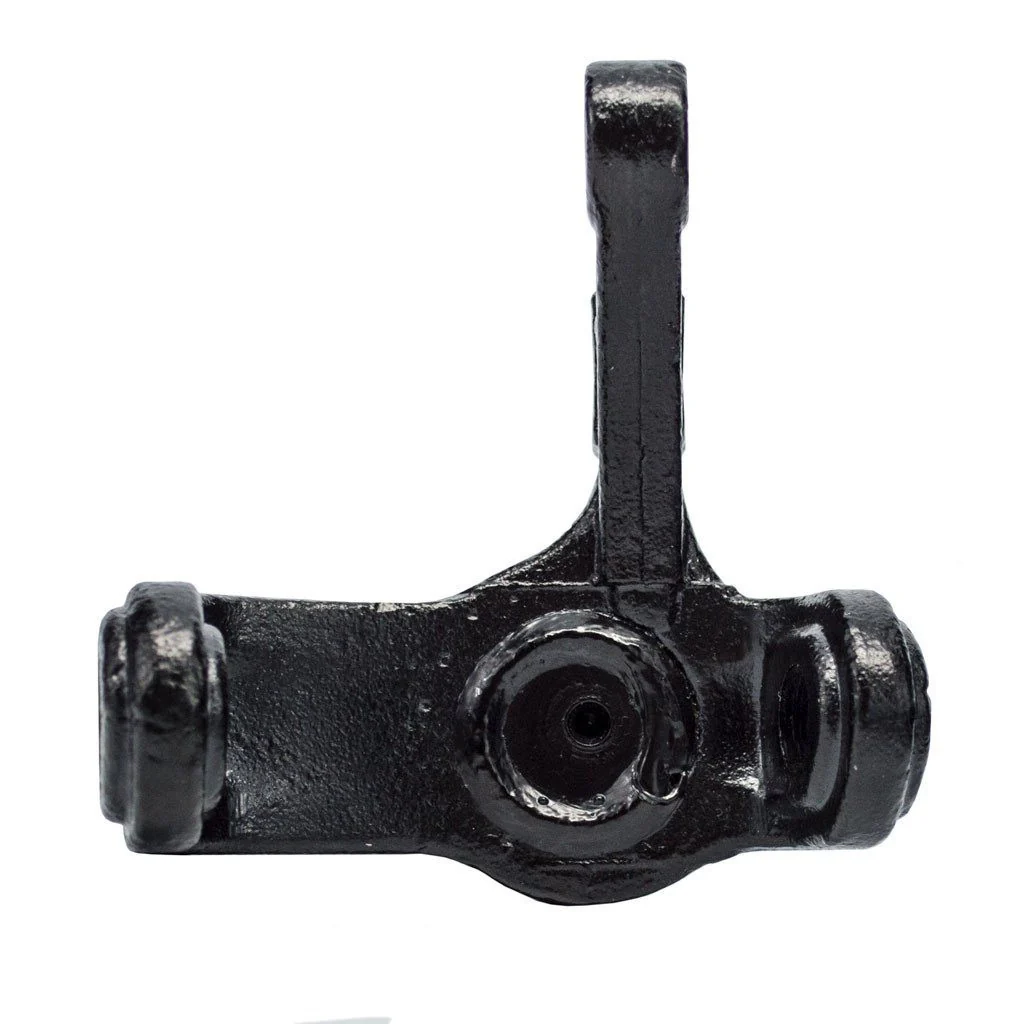

Spindle / Steering Knuckle (LH) for 110cc-125cc ATVs

LEFT side

This spindle fits many 110cc-125cc atvs.  Please check the pictures, descriptions and measurements to determine which spindle you need.

Spindle specs:

• Length of threaded shaft: 95mm (3.74 in)

• Overall length is about 6 inches.
• Width across inside of arms: 66.5mm (2.61 in)

• King pin / Tie rod mounting hole is 10.4mm in diameter
• Holes where spindle bolts to frame are 13.6mm in diameter
• Axle diameter: 17mm
• Uses M14x1.5 castle nut (sold separately)
• Painted black

Known to fit Panther 110LX.
