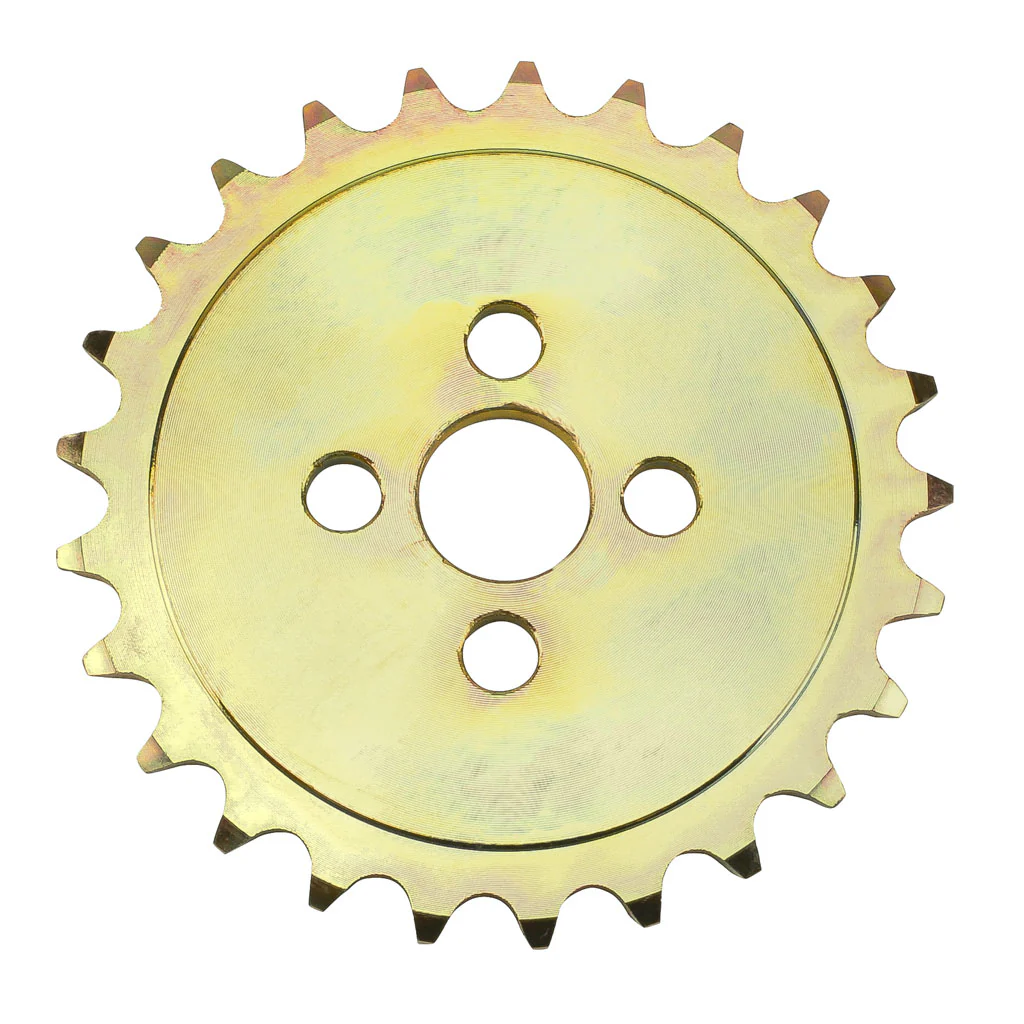

ATV Front Sprocket 420-25T Coleman KT196 Go-Kart

This front sprocket is used on the Chinese 200cc engines, specifically the Coleman KT196, Coleman CK196 and the HiSun HS200GK go-karts.  May be used on other applications as well.  This sprocket has 25T and is compatible with the 420 chain ONLY.

Sprocket details:

• #420 chain
• 25 Teeth
• ID 20mm (0.78 in)
• OD 106mm (4.16 in)
• Four 8mm bolt holes 26mm (1.02 in) apart center-to-center side-by-side
• Bolt holes are 37mm (1.46 in) center-to-center across from each other
• 41234-132-0000  Chain Wheel II
• 53304-400001-0000
• P400001533040000
• 124952  TT-124952


These may differ slightly in how they look in the picture, but they still function the same.

Fits the Coleman CK196 and Coleman KT196 go-karts.

Shipping details:

Do you need your sprocket fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.    Buy now!
