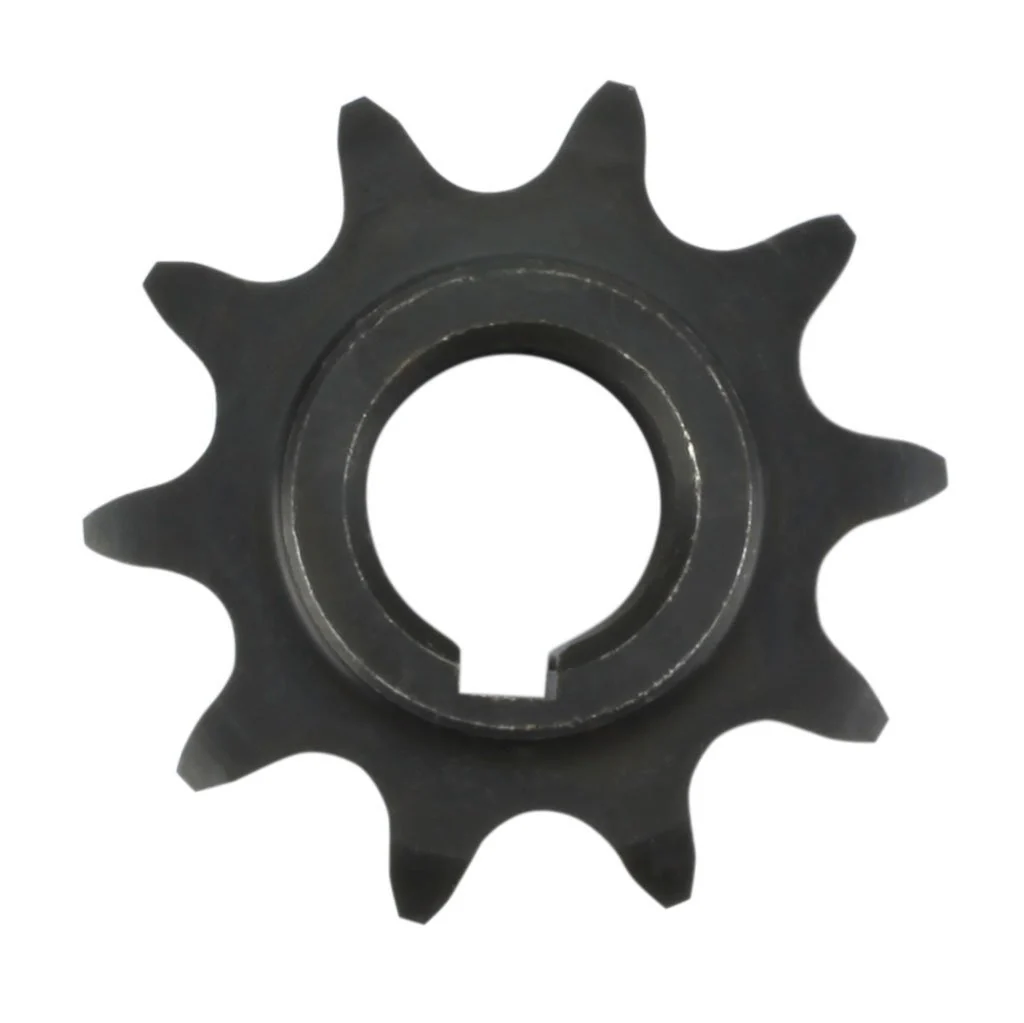

Front Sprocket 420-10T Coleman KT196 Go-Kart

This front sprocket is used on the Chinese 200cc engines, specifically the Coleman KT196 and the Hisun HS200GK go-karts.  May be used on other applications as well.  This sprocket has 10T and is compatible with 420 chain ONLY.

Sprocket details:

• Small chain sprocket on the KT196
• #420 chain
• 10T
• ID 16mm (0.625 in)

• OD 46mm (1.81 in)

• Width: 20mm (0.79 in)

• Uses 5x17 key - Not included
• 53303-400001-0000
• P400001533030000
• 41233-132-0000

Be sure to measure your chain or current sprocket before ordering.  420 chain has 1/2 inch pitch and 5/16 inch roller diameter.  Most Chinese sprockets have the chain size and teeth count stamped into the metal.
