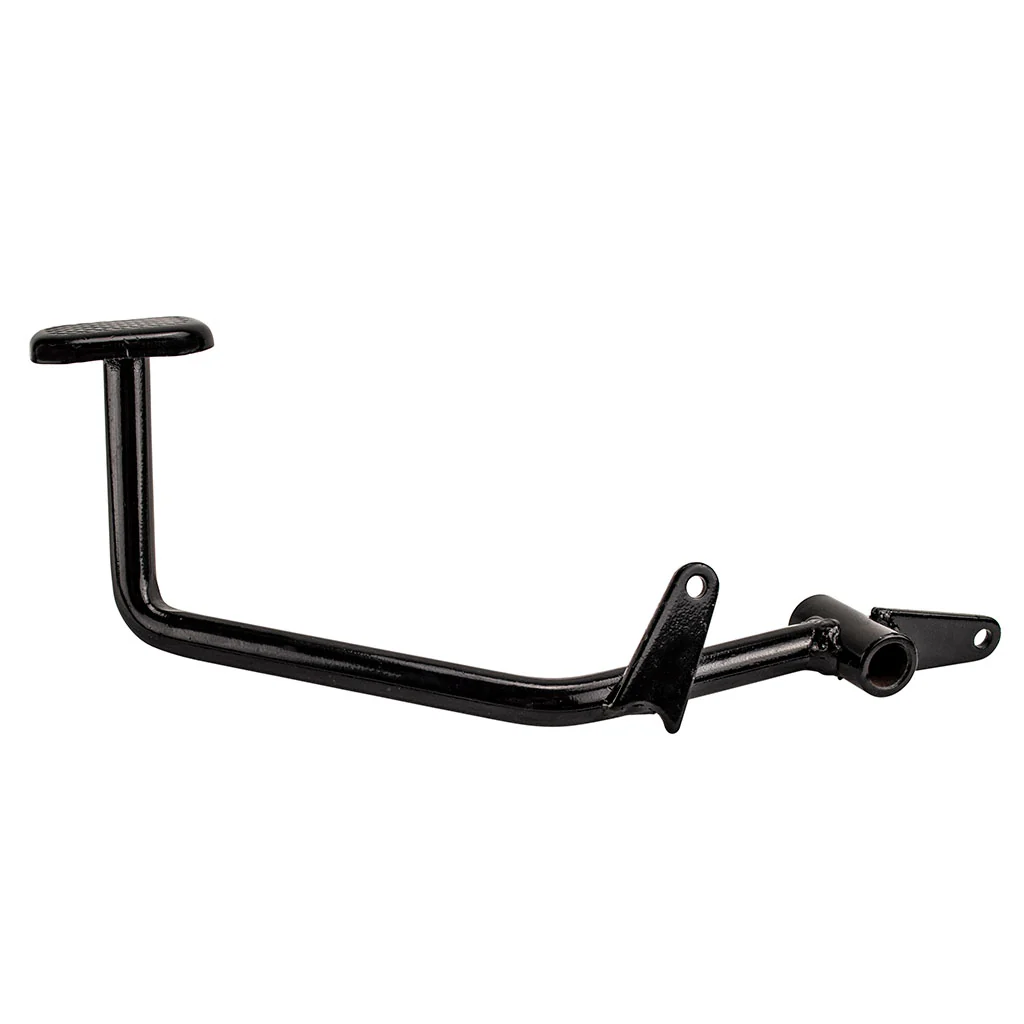

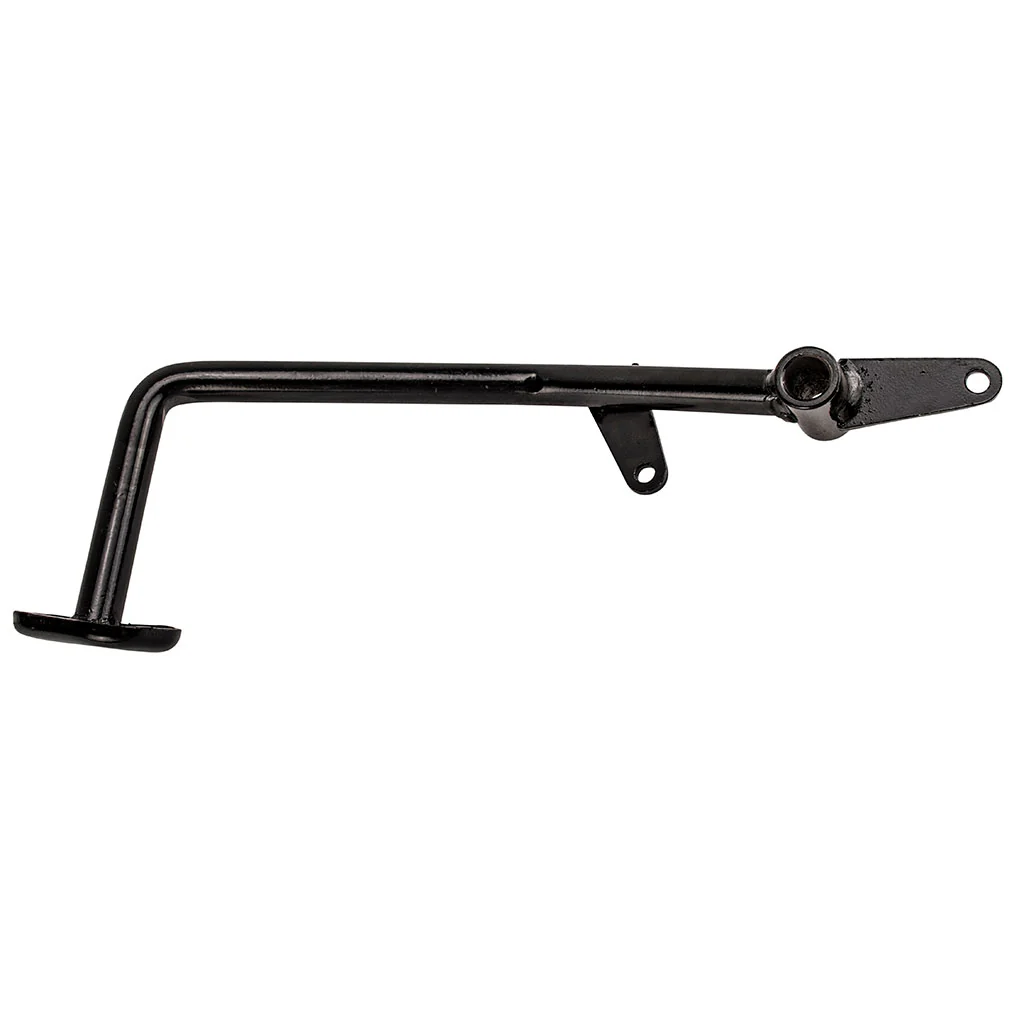

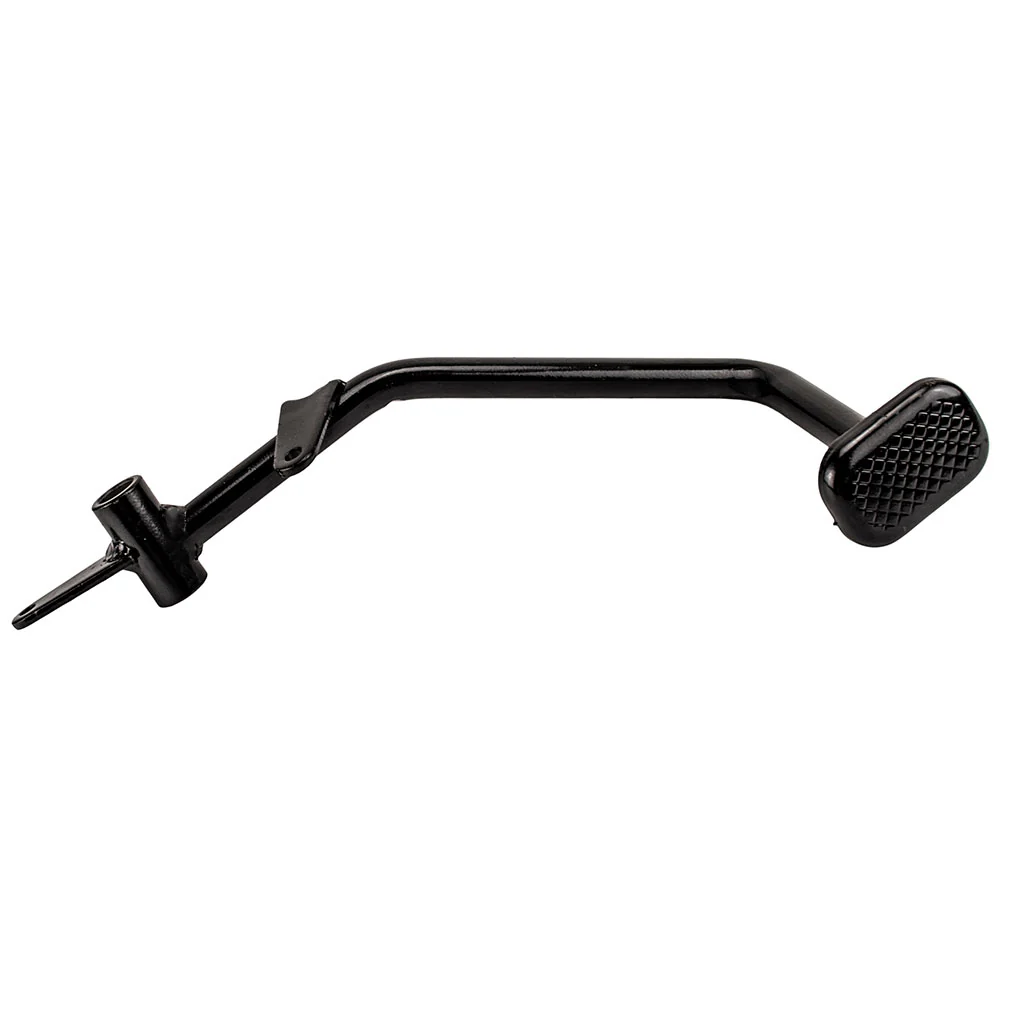

Foot Brake Pedal / Foot Brake Lever

This brake foot pedal is used on several Tao Tao atvs.  Please look at pictures and description before ordering.

Brake pedal specs:

• Overall length: 13.5 inches approximately
• Center of mounting hole on rear is 42mm (1.65 in) from edge of tube
• Center of mounting hole on tab in front of tube extends 23mm (0.90 in) from arm
• Both mounting holes are 6.75mm (0.26 in)

• ID of cylinder on bracket: 14.5mm
• OD of cylinder on bracket: 22mm
• Bend distances: 1st bend from pedal 3.5 in. - 2nd bend from 1st bend 5.75 in.

According to Tao Tao, this foot peg fits the ATA110D/D1, ATA125D, ATA125F1, TForce and NEW TFORCE.  Please use pictures and descriptions and your unit to help verify fit.

Shipping details:

Do you need your foot brake pedal fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.   Buy now!
