Crankshaft - 110cc engine

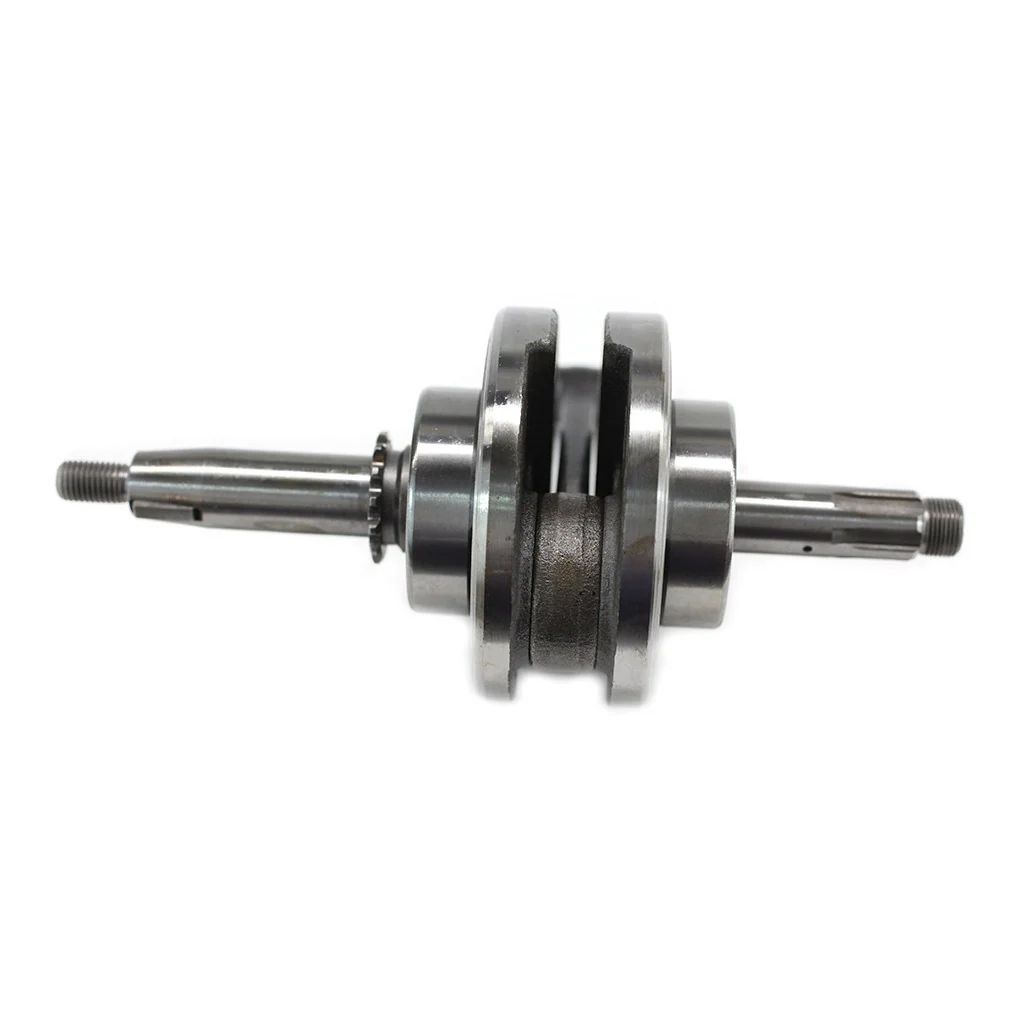

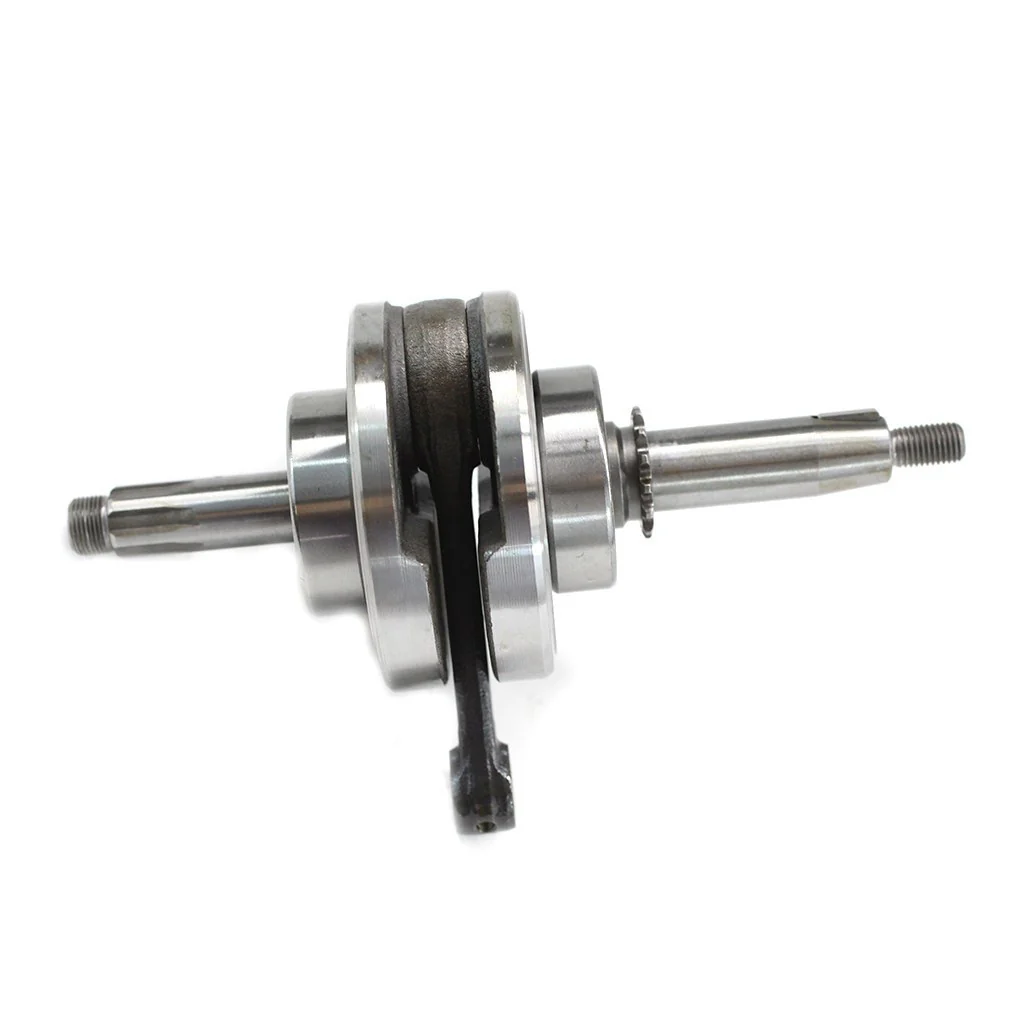

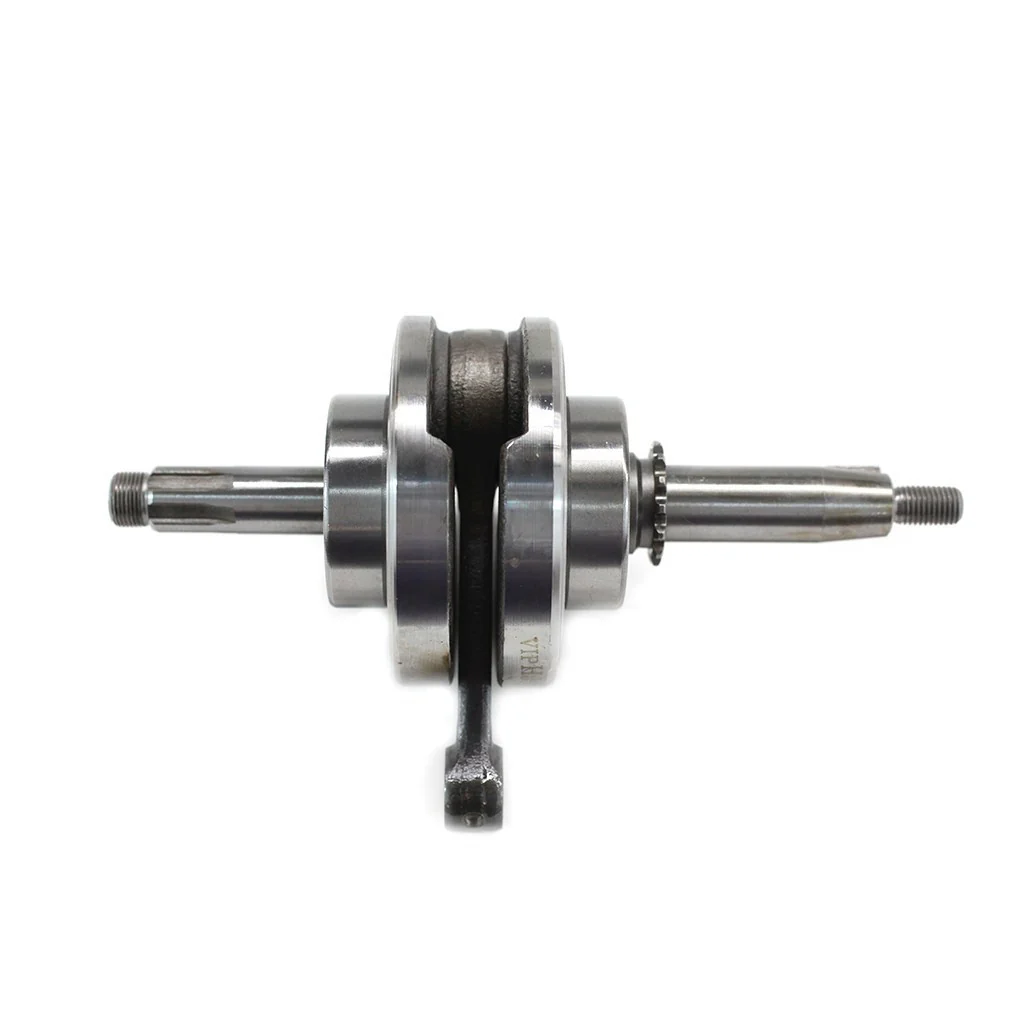

This 110cc crankshaft fits several makes and models.  Please use the pictures and measurements to best match your crank.

Crankshaft details:

• Over Length: 20cm (7.87 in)

• Bearing size/model: 20 X 52 X 15 (6304)
• Stroke: 49.5mm
• Gear: 14 teeth
• Spline count on straight end of shaft: 6 tooth spline
• Connecting rod hole ID: 13mm
• Thread size on tapered end: M10 x 1.25
• Thread size on straight end: M14

Fits Tao Tao ATA110B/B1, ATA110D/D1, ATA125D / D125, ATA125F1, ATA125G, ATA135D, ATA135DU, ATK125A, BoulderB1, Cheetah, DB10, DB20, GK110 and Jeep Auto.

Shipping details:

Do you need your crankshaft fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.  Buy now!
