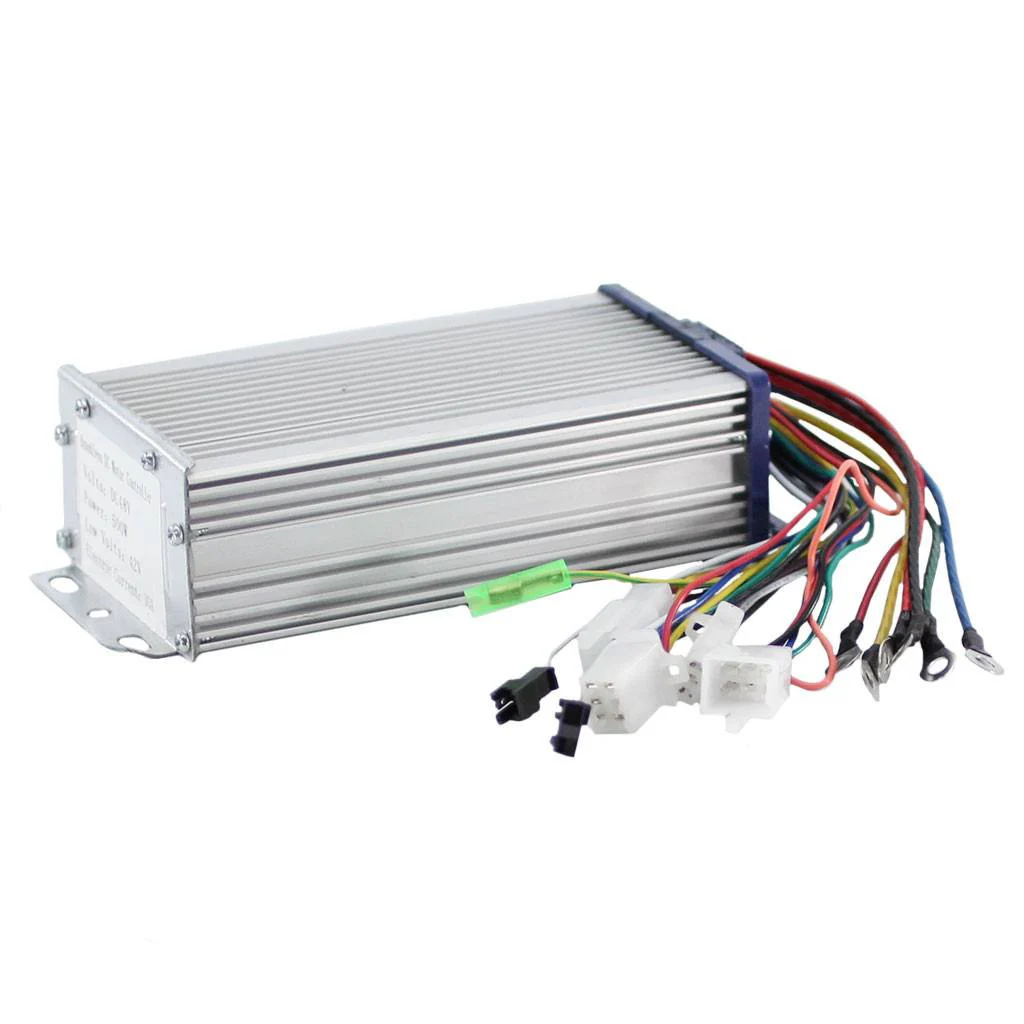

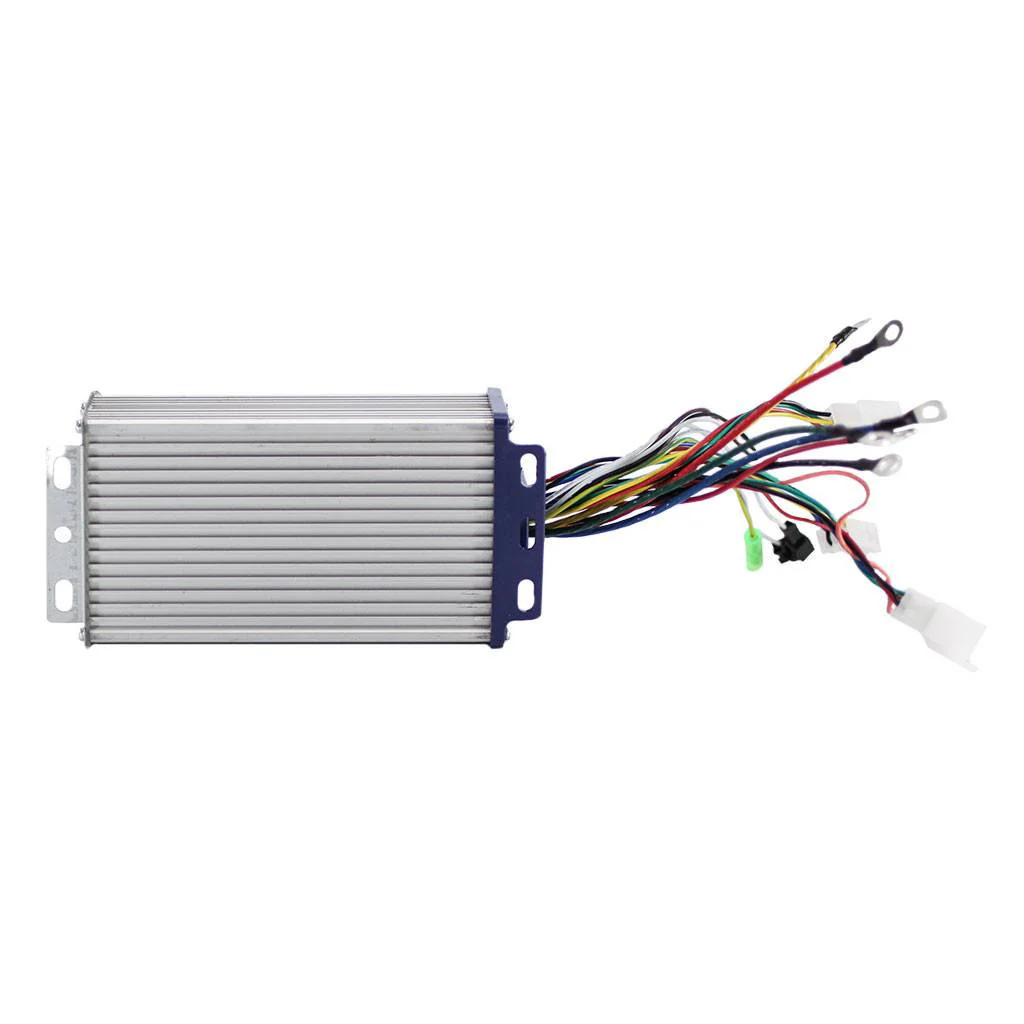

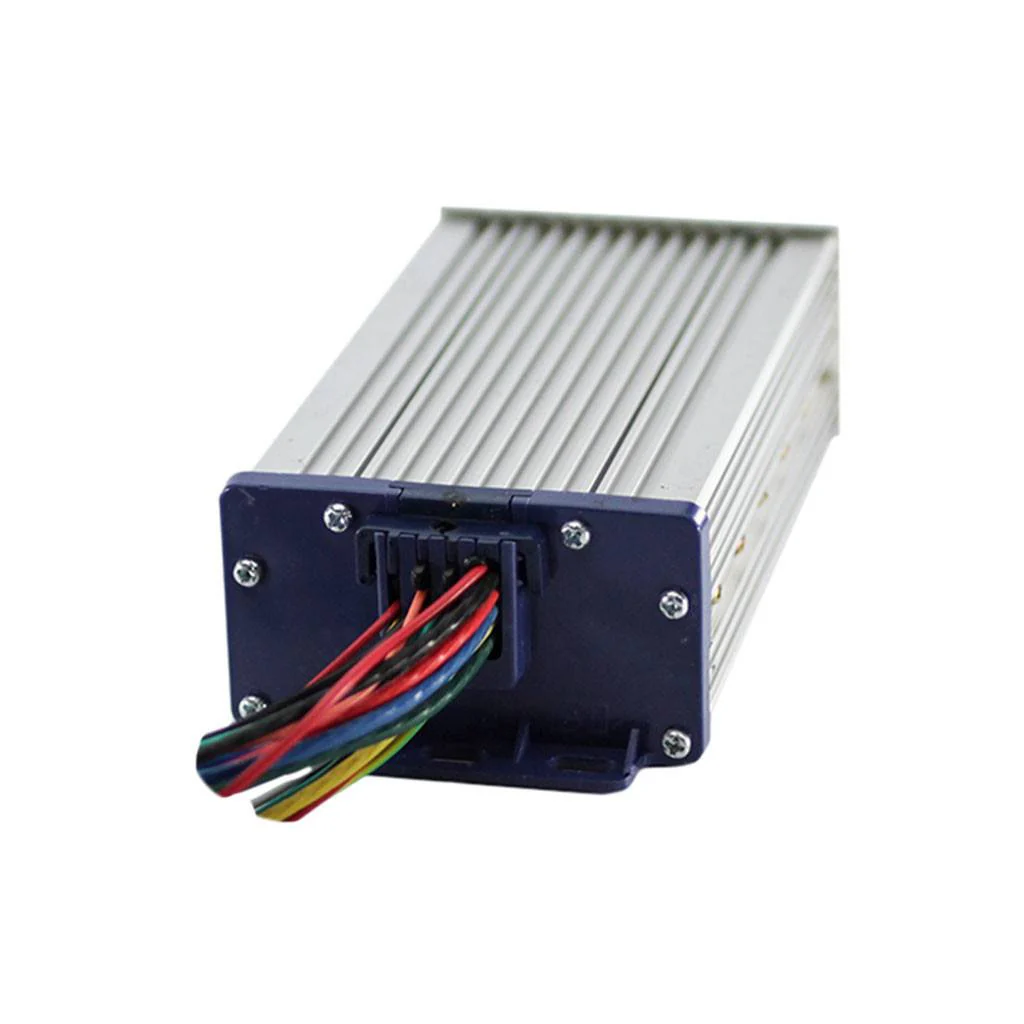

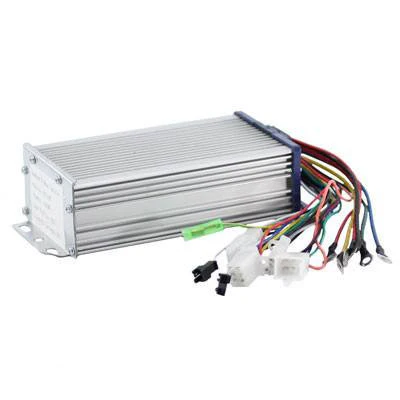

Tao Tao Electric Scooter Control Box

Specifications:

• Box itself is approximately 6.0 in. x 3.25 in. x 1.75 in.

• Volts: DC48V
• Power: 500W
• Low Volts: 42v
• Electric Current 30A
• 26-wires

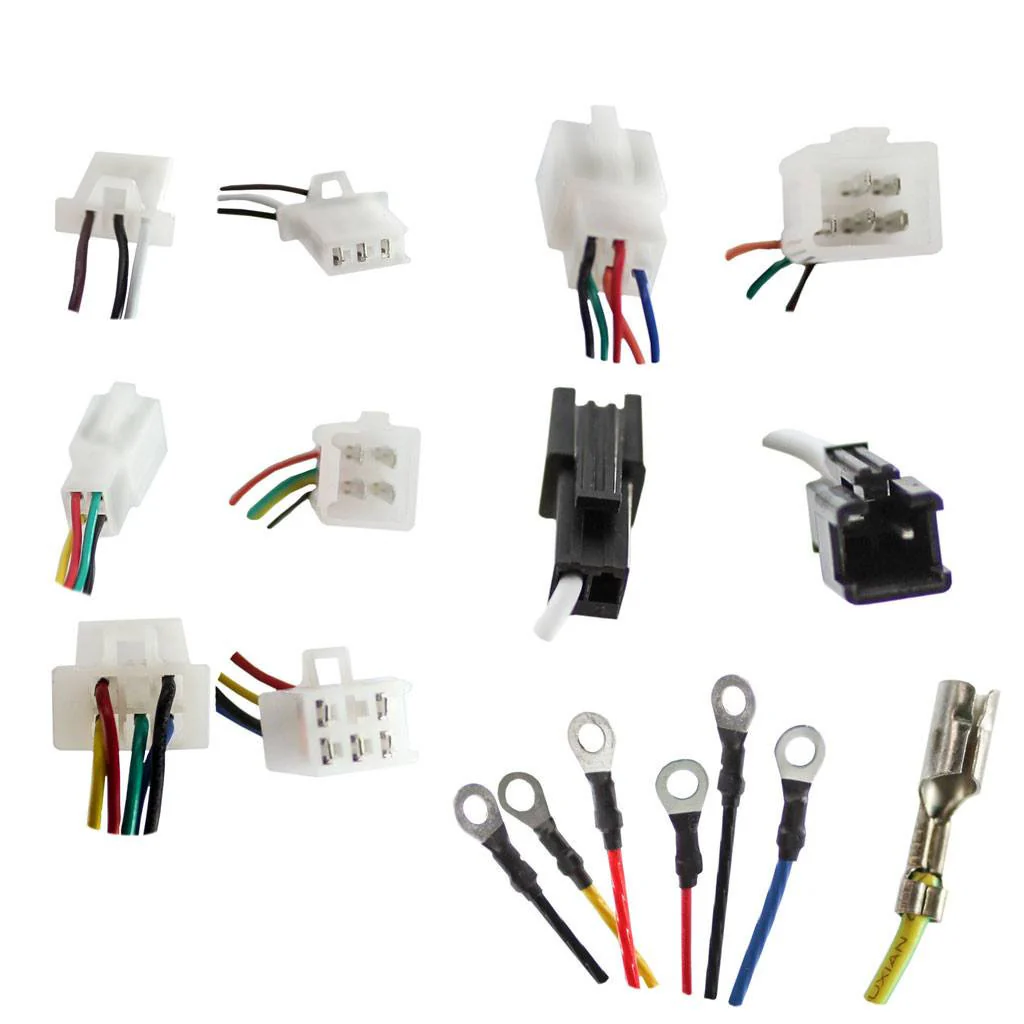

• 5-wire, 6-position female plug... Blue, Green, Yellow, Black and Red
• 5-wire, 6-position male plug... Blue, Salmon, Green, Black and Red
• 4-wire male plug... Black, Green, Red and Purple
• 3-wire female plug... Brown, Salmon and Blue
• 6 wires have eyelets... Red, Black, Orange, Blue, Yellow and Green
• 3 single leads... Gray, Gray and Purple
• 2 Pink wires that are attached to each other
• Tag on controller indicates it's for a tri-speed display with burglar alarm
• 10334A1910  10334

Fits Tao Tao electric scooters.

Fits Tao Tao ATE501 and ATE502 Electric Scooters
