Clutch Assembly for CVT Driven UTVs 500cc 700cc - HiSun Menards Massimo

Version 43

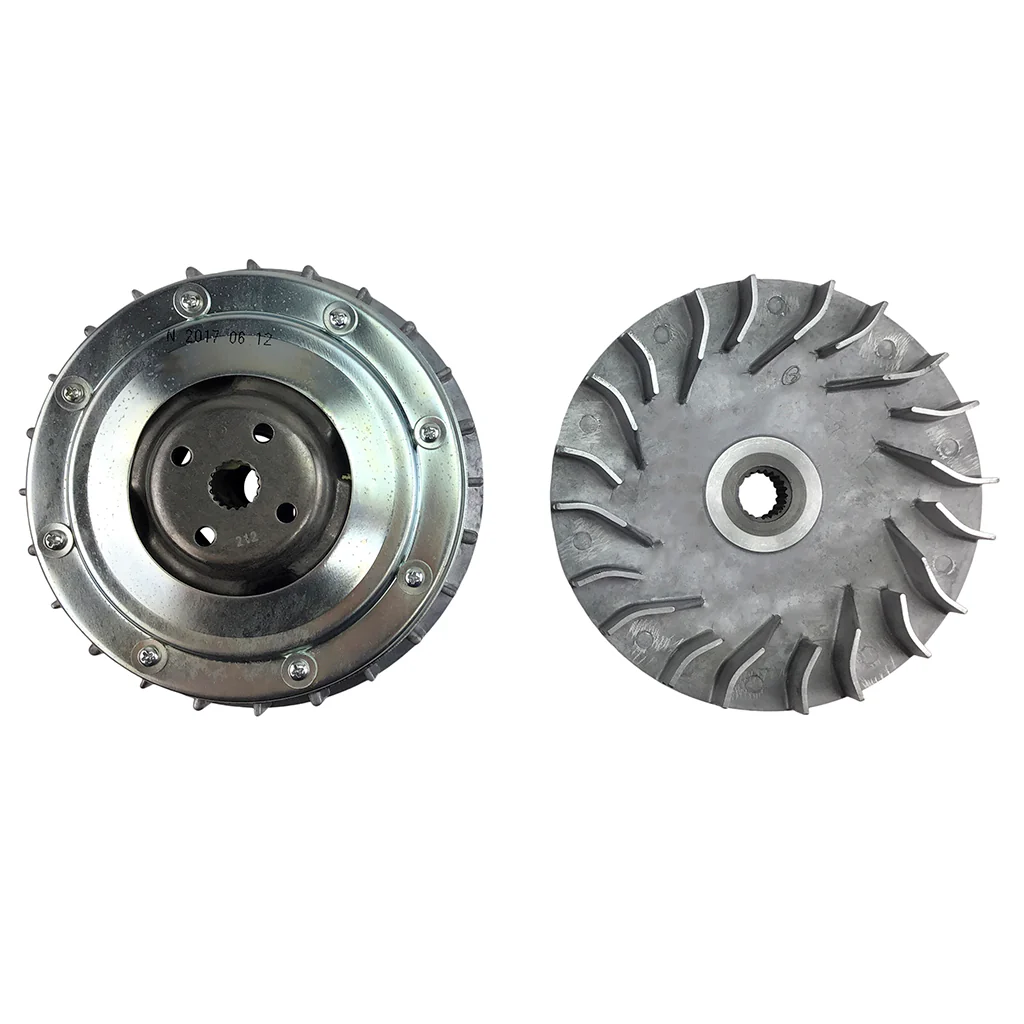

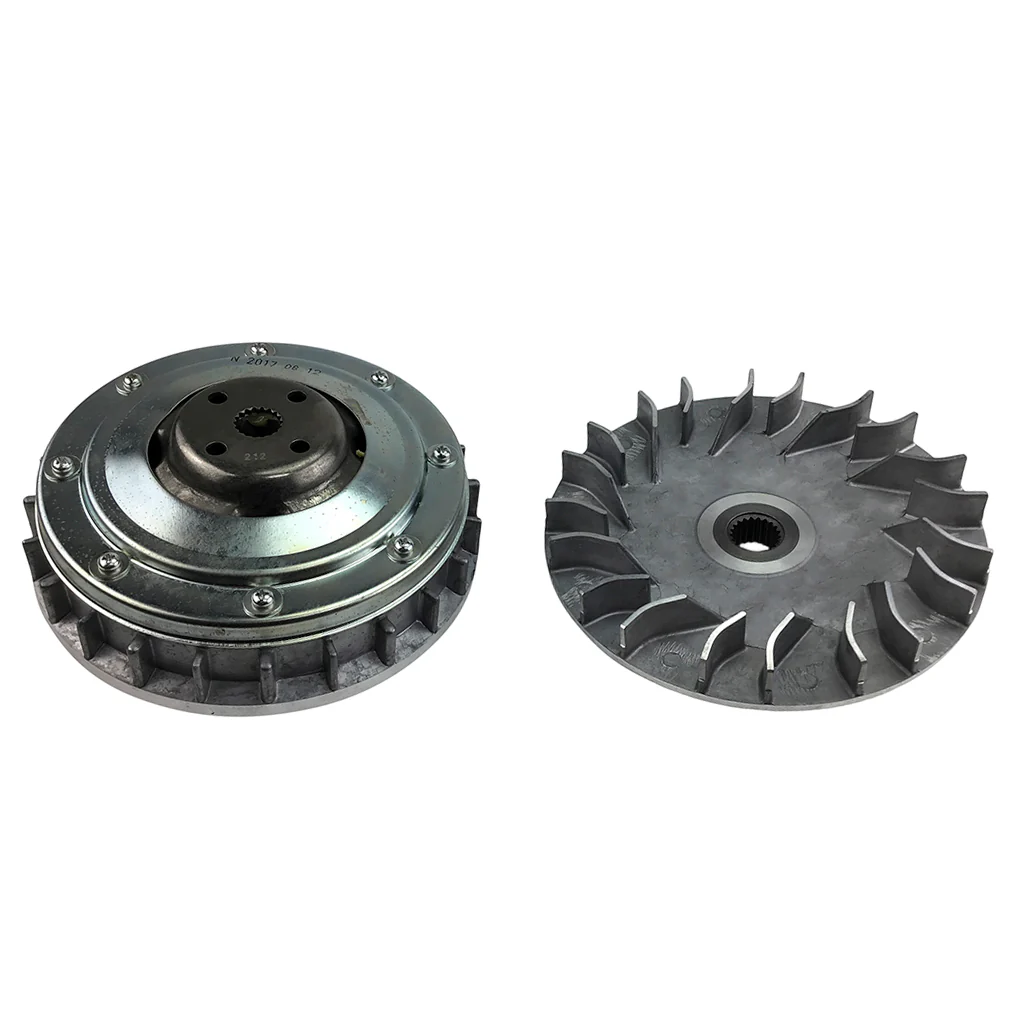

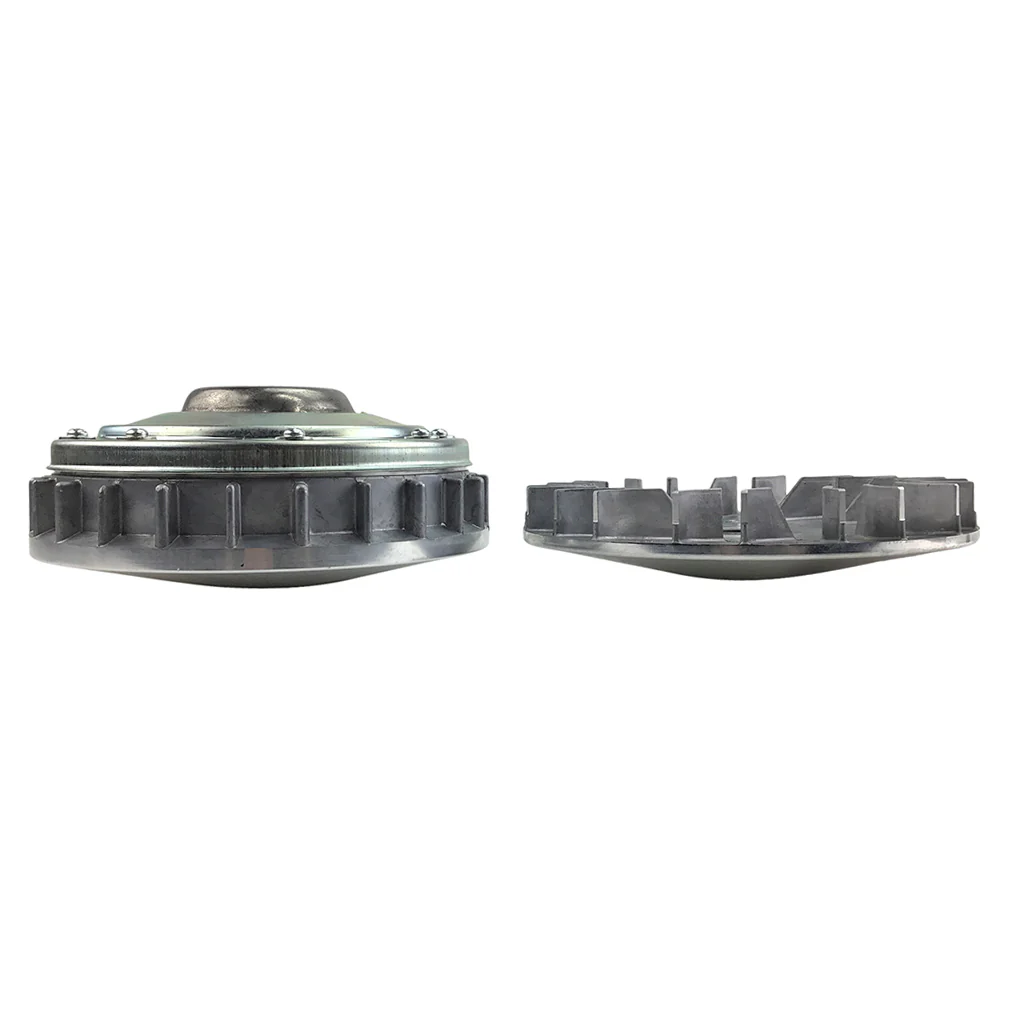

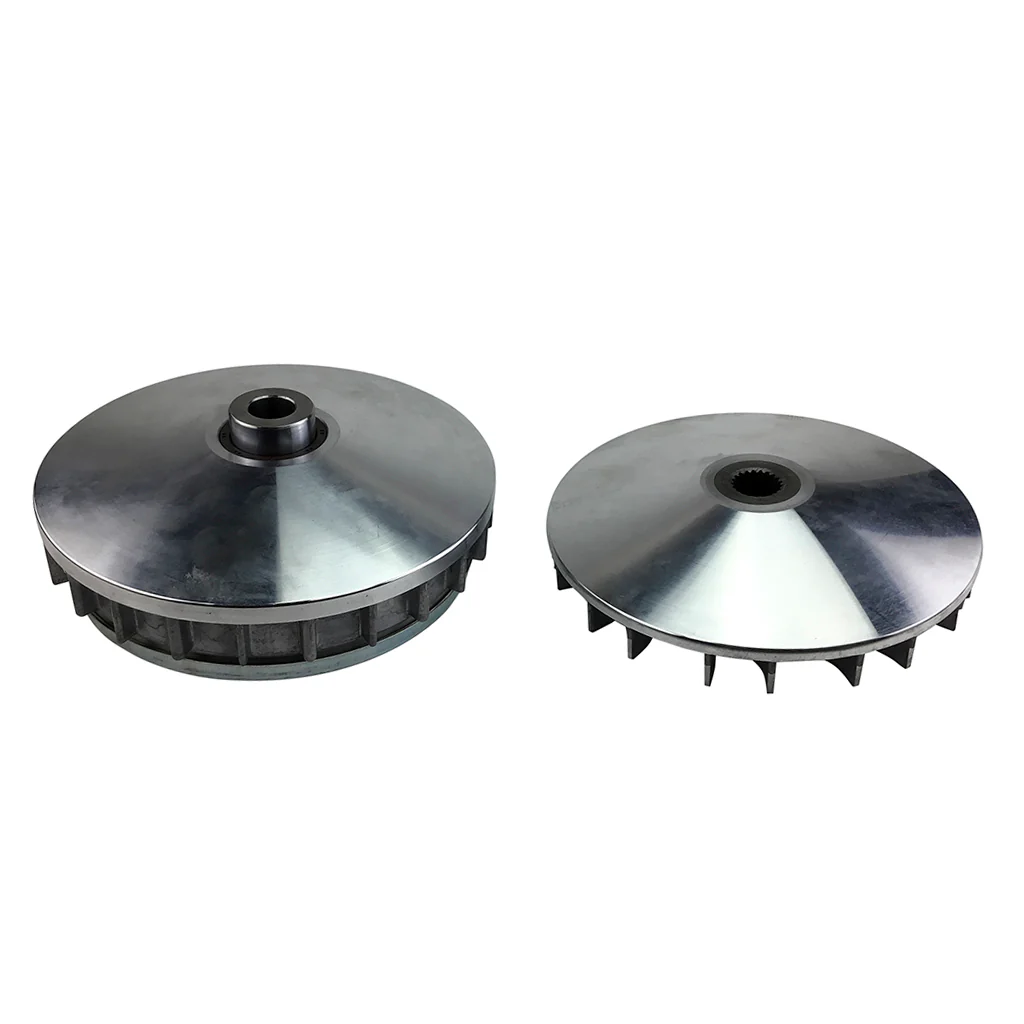

This clutch is the primary drive clutch and is known to fit several brands of 500cc - 750cc UTVs.  Please use the pictures and measurements to make sure it will fit your application.

Clutch details:

• Contains sheave assembly and fixed sheave plate
• Clutch OD: 191mm (7.5 in)

• Clutch ID: 19mm (0.74 in)

• 24 small alternating size fins around outside
• 18 teeth on the bottom plate of clutch
• 8 screws hold clutch together on the bottom side
• Sheave plate has 21 teeth
• Sheave plate OD: 191mm (7.5 in)

• Sheave plate ID: 21.9mm (0.86 in) valley to valley
• Sheave plate has 21 fins
• Fits all EFI & carburetor style HiSun UTVs

Known to fit 500cc-750cc HiSun, Bennche, Massimo, Supermach, Q-Link, Menards Yardsport UTV and more.
