Clutch Assembly - 6 Plate - 6 Bolt - 73 Tooth - CG 200cc 250cc - ATV Dirt Bike - Version 14

Product image 1
1 / 4

Clutch Assembly - 6 Plate - 6 Bolt - 73 Tooth - CG 200cc 250cc - ATV Dirt Bike - Version 14

ATV Clutch - 6 Plate - CG 200cc 250cc

Version 14

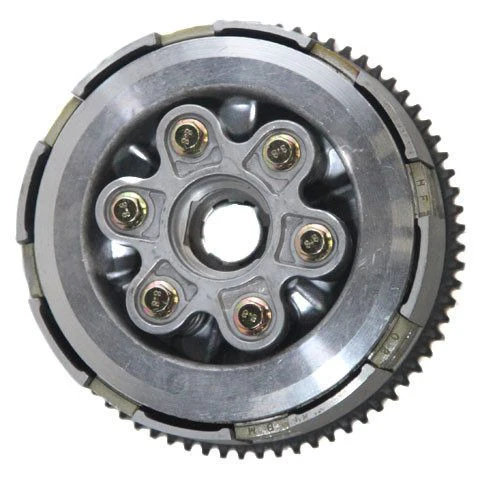

Clutch assembly #14 is the replacement clutch for CG 200cc 250cc Chinese manufactured brands and models. Very popular in atvs and dirt bikes.

Clutch details:

  • Rear clutch for CG 200 250 engine

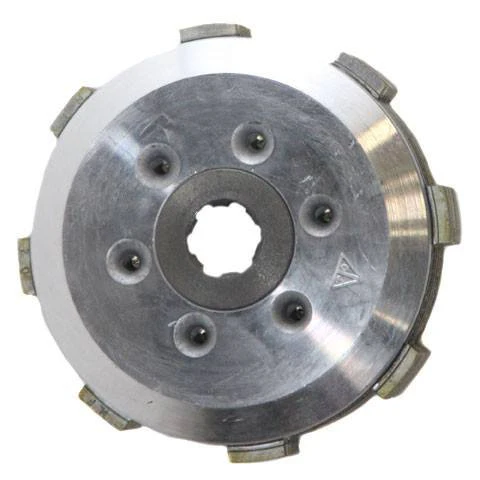

  • 6 tooth plate assy
  • OD: 120mm (4.68 in) plate assy
  • ID: 20mm (0.78 in) plate assy valley-to-valley
  • ID: 18mm (0.70 in) plate assy peak-to-peak
  • 6 tooth basket and gear assy
  • OD: 130mm (5.11 in) gear
  • ID: 30mm (1.18 in) gear assy valley-to-valley
  • ID: 28mm (1.09 in) gear asst peak-to-peak

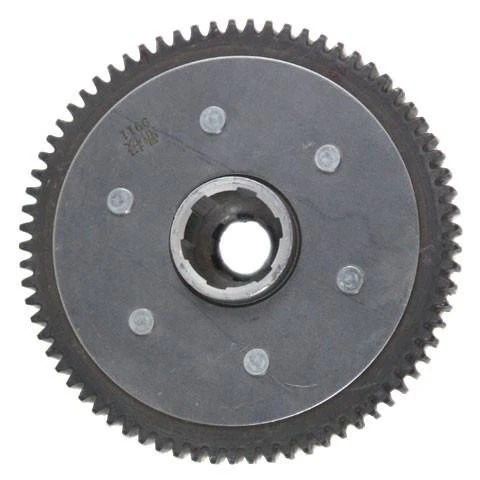

  • 73 tooth gear

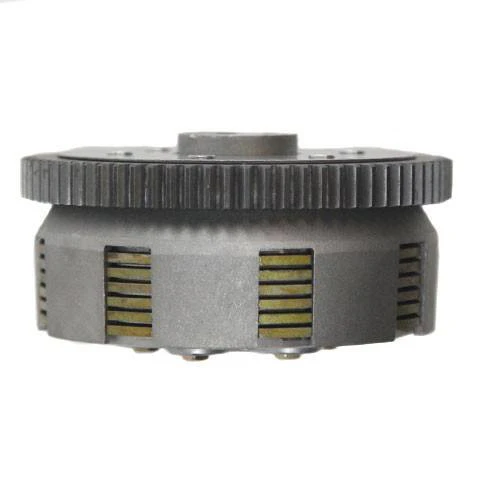

  • Basket has eight solid plates
  • Fits CG 200cc 250cc vertical engines ONLY



Known to fit vertical style 200-250cc handlebar clutch lever atvs and dirt bikes.  Check pictures and measurements to be sure this is the correct clutch for your application.

ATV Clutch - 6 Plate - CG 200cc 250cc

Version 14

Clutch assembly #14 is the replacement clutch for CG 200cc 250cc Chinese manufactured brands and models. Very popular in atvs and dirt bikes.

Clutch details:

  • Rear clutch for CG 200 250 engine
  • 6 tooth plate assy
  • OD: 120mm (4.68 in) plate assy
  • ID: 20mm (0.78 in) plate assy valley-to-valley
  • ID: 18mm (0.70 in) plate assy peak-to-peak
  • 6 tooth basket and gear assy
  • OD: 130mm (5.11 in) gear
  • ID: 30mm (1.18 in) gear assy valley-to-valley
  • ID: 28mm (1.09 in) gear asst peak-to-peak
  • 73 tooth gear
  • Basket has eight solid plates
  • Fits CG 200cc 250cc vertical engines ONLY



Known to fit vertical style 200-250cc handlebar clutch lever atvs and dirt bikes.  Check pictures and measurements to be sure this is the correct clutch for your application.

$15.73

Original: $44.95

-65%
Clutch Assembly - 6 Plate - 6 Bolt - 73 Tooth - CG 200cc 250cc - ATV Dirt Bike - Version 14—

$44.95

$15.73
