ATV Clutch - 17 Teeth Gear Attached - 50cc to 125cc

Version 19

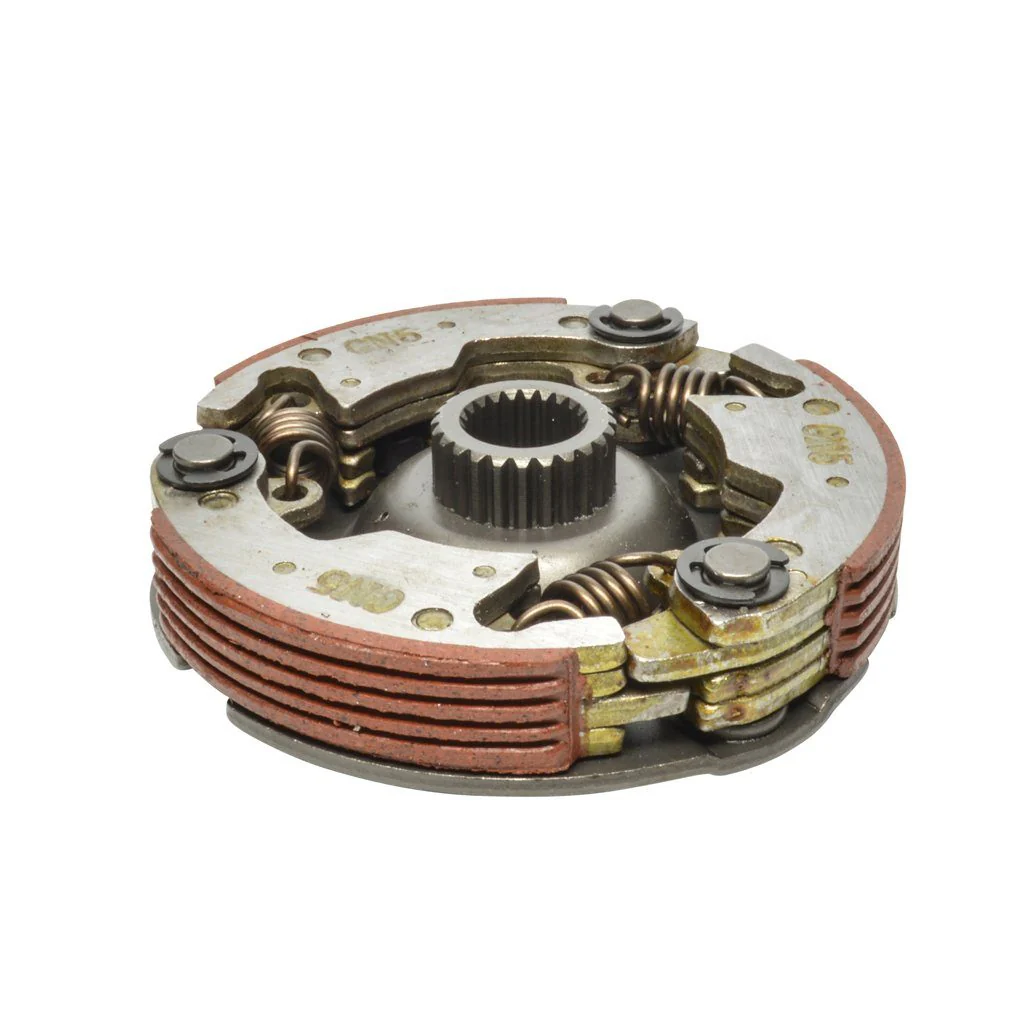

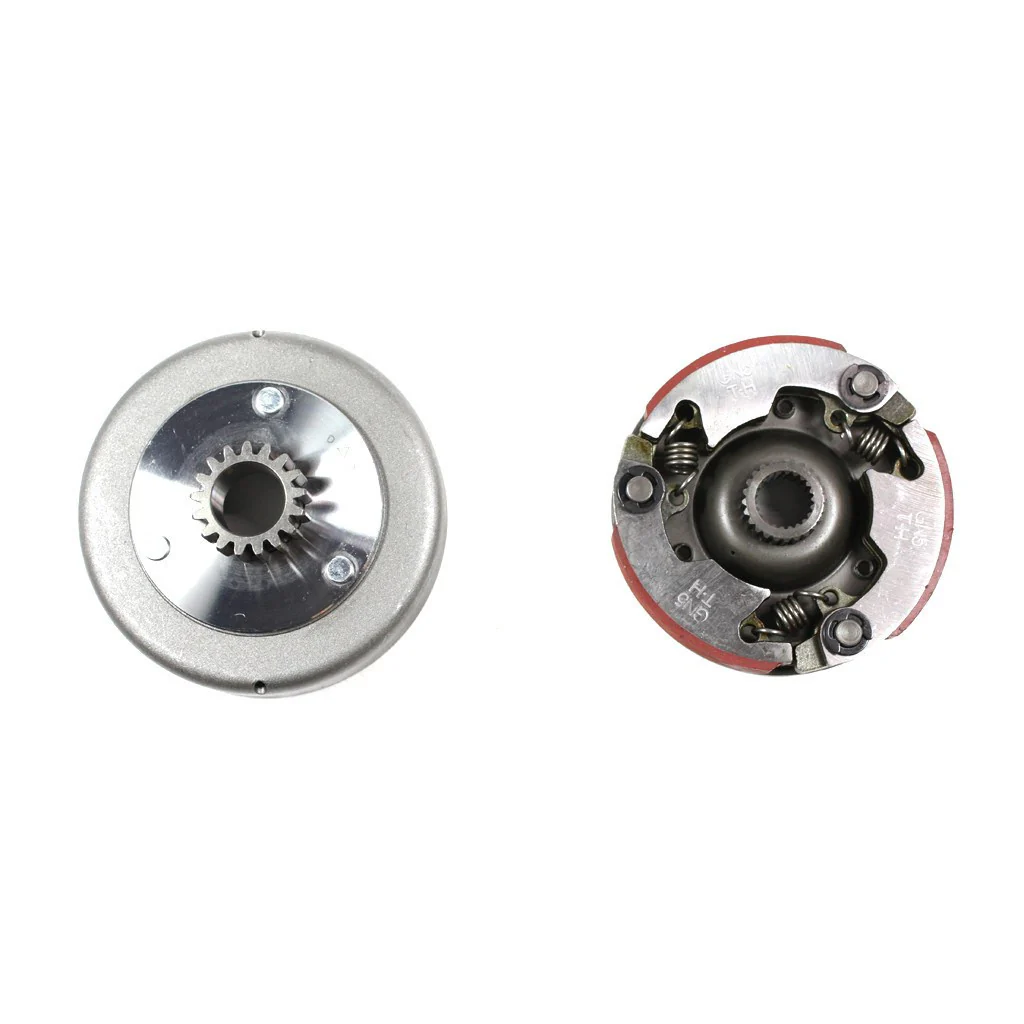

Clutch assembly (#19) is replacement clutch for Baja 90cc, Yamoto 70cc, and other 50cc-125cc engines.  Normally used in full automatic transmission. Chinese manufactured brands and models.

Clutch details:

• Rear clutch for 50-125cc engine

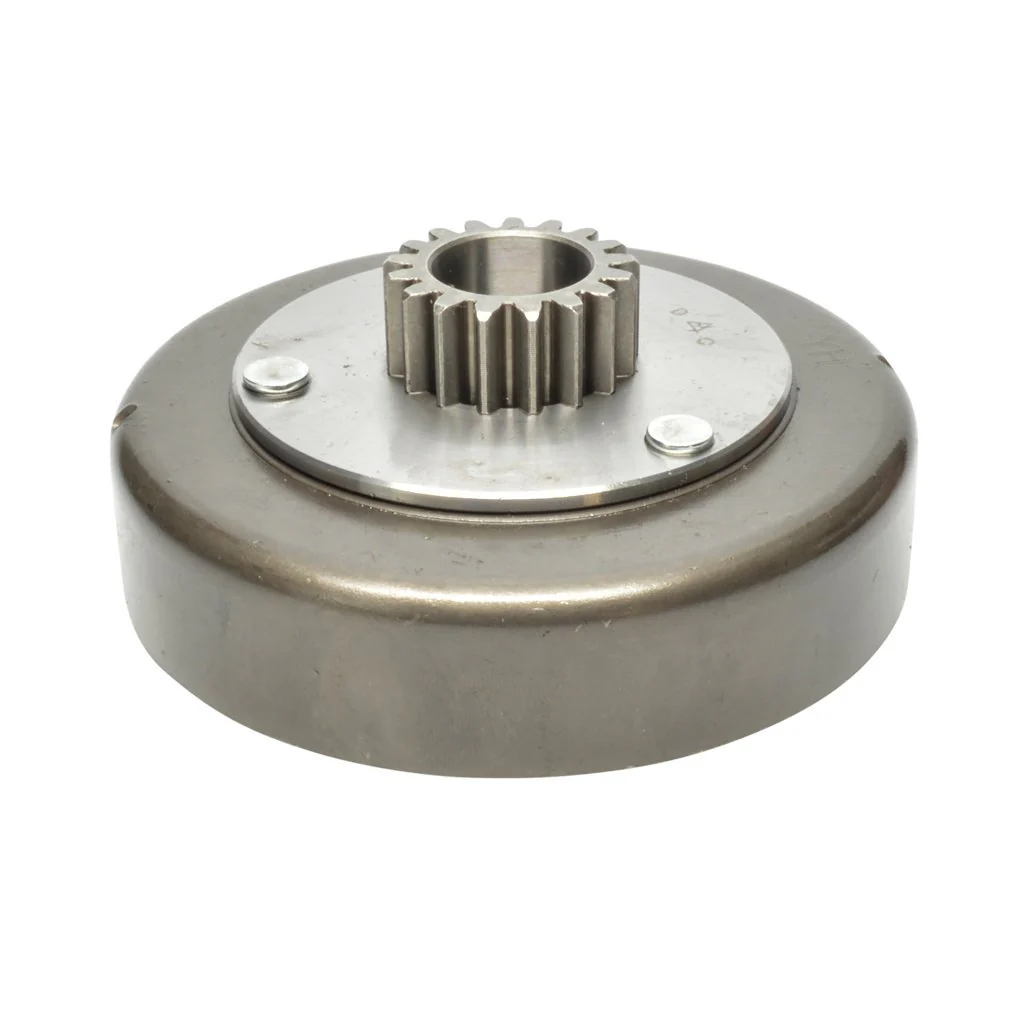

• 17 tooth basket gear spot welded to drum basket
• 22 tooth spline inner - 24 tooth on outer
• Spline hole diameter: 17mm (0.67 in)

• Basket OD: 110mm (4.33 in)

• Basket height: 26mm (1.02 in) without plate & gear
• 17 tooth gear is spot welded into plate
• Gear OD: 34mm (1.34 in)

• Gear ID: 20.9mm (0.82 in)

• Also known as Baja Style clutch

Known to fit Baja and Yamoto ATVs.  Check pictures and measurements to be sure this is the correct clutch for your application.

Shipping details:

Do you need your clutch fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.  Buy now!
