Chinese Circuit Breaker for Tao Tao Electric Scooters

Electric Scooter circuit breaker, unipolar rated voltage DC12V-64V.  Used to provide overload and short protection.  Commonly used on large, street legal electric scooters.

Circuit breaker details:

• Height: 66mm (2.6 in)

• Width: 77mm (3.02 in)

• Thickness: 17.5mm (0.68 in)

• Single pole
• Cable clamp terminals on top and bottom
• Rated current: 63A
• Rated circuit breaking capacity: 4000A

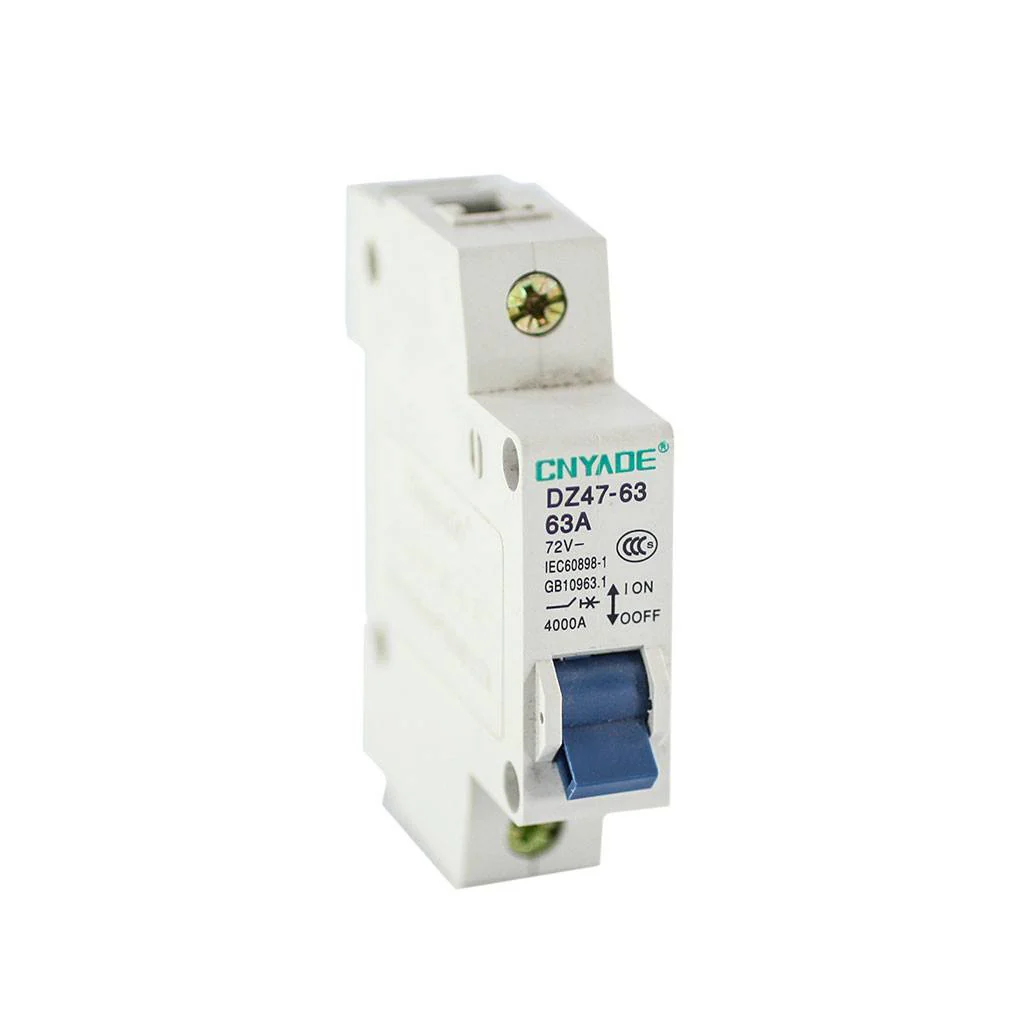

• DZ47-63 63A
• 10449A2517

Know to fit the Tao Tao ATE501M and ATE502M electric scooters.

Shipping details:

Do you need your circuit breaker fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.  Buy now!

Electrical parts are not returnable.  Please double check before ordering.
