Tao Tao GT5 50cc Scooter Gas Tank

Version 20

This replacement gas tank fits many Chinese scooters and mopeds. This tank fits 50cc, 125cc and 150cc models.

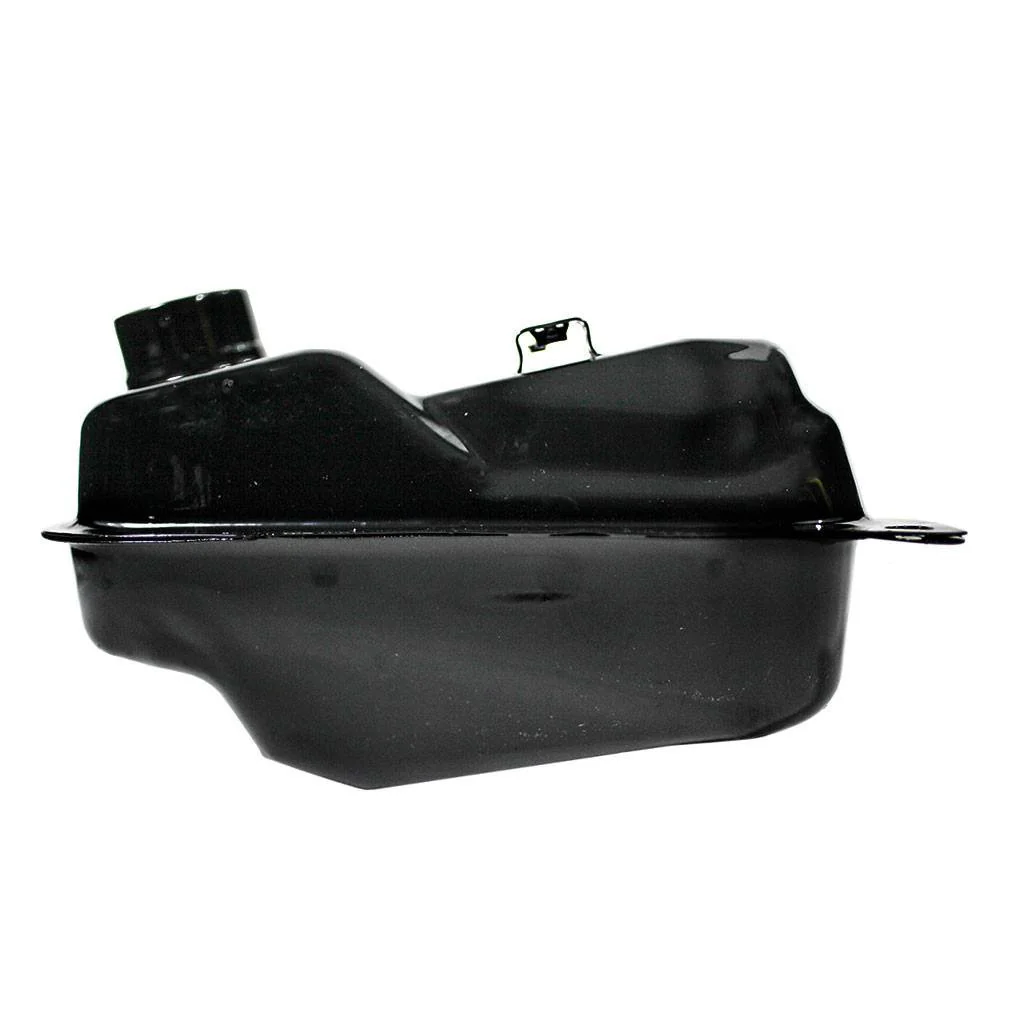

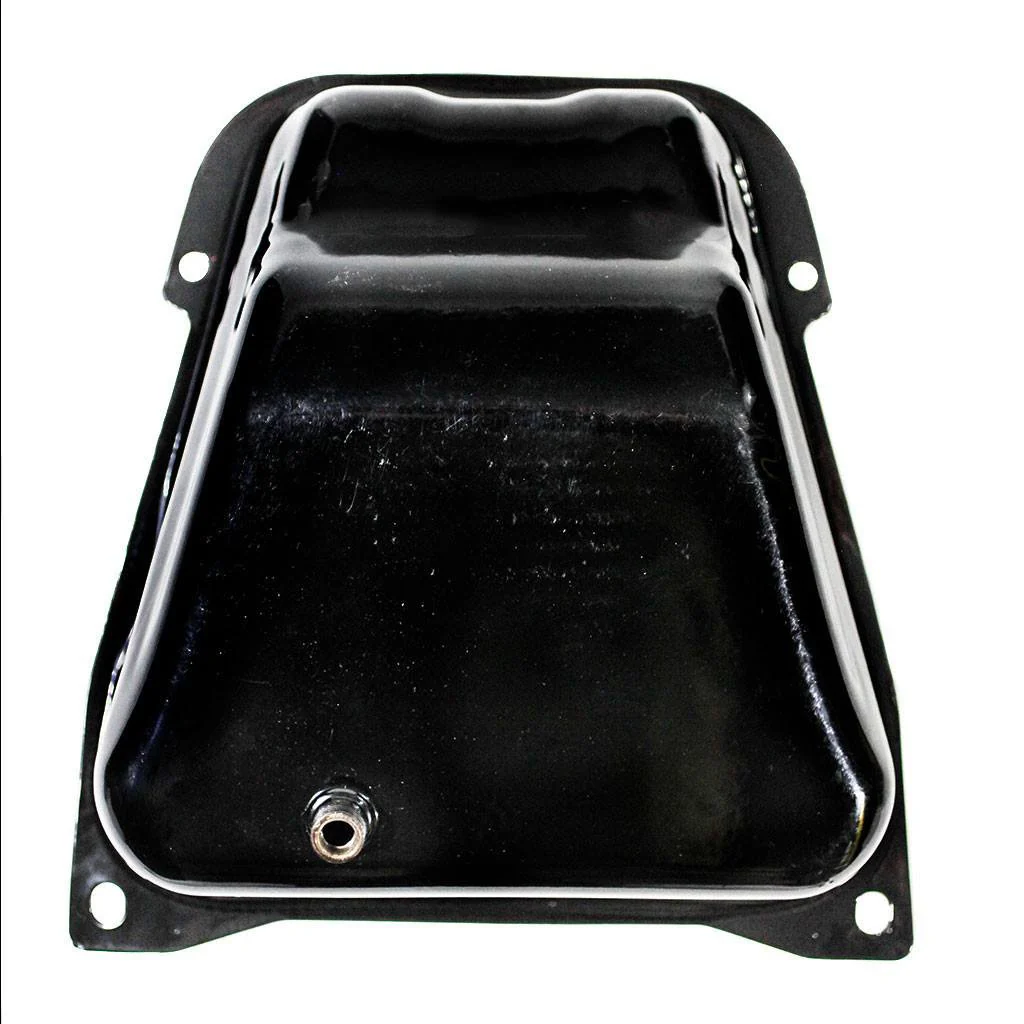

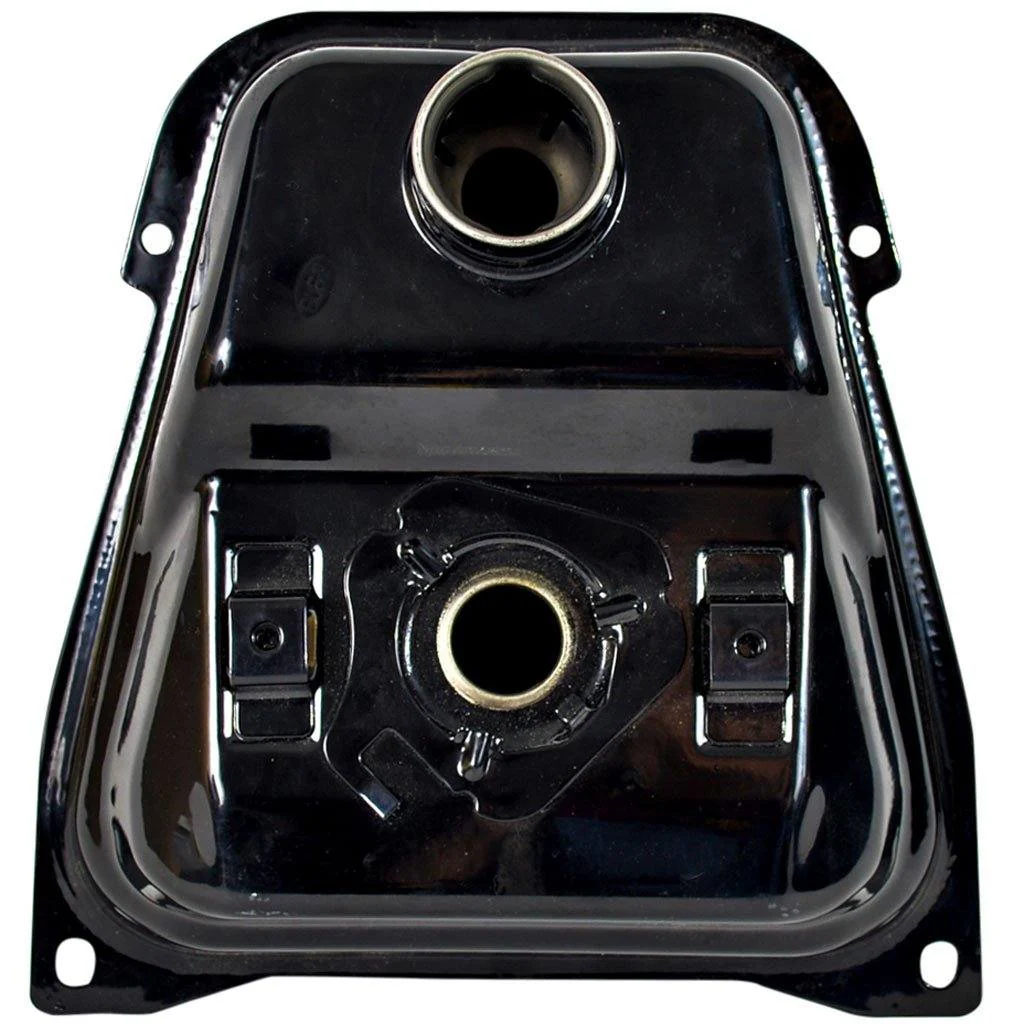

Tank description:

• Tank width: 26.6cm (10 9/16 in) widest point
• Tank length: 28cm (11.0 in)

• Double mounting tabs on top: 12.3m (4.9 in) center to center
• Threaded nipple on bottom: M16 (16mm)
• Tank height without cap and threaded fuel connection at tallest point: 16.5cm (6.5 in) approximate measurement
• Hole on top of tank (29mm ID) along with the gas cap neck hole (51mm OD)
• Metal
• Cap not included
• Compatible with 50cc 4 stroke
• 20004B14

All measurements are approximate due to the difficultly in measuring the unusual shape of the tank. Please use the pictures and approx. measurements to match your tank.

Do you need the cap?  Click HERE!

This tank is known to fit the Tao Tao GT5 50 scooter.  Our fuel tank version 202, is exactly the same except that the version 202 has a 1/4 inch fuel vent nipple about 2 inches away from fuel inlet pipe.
