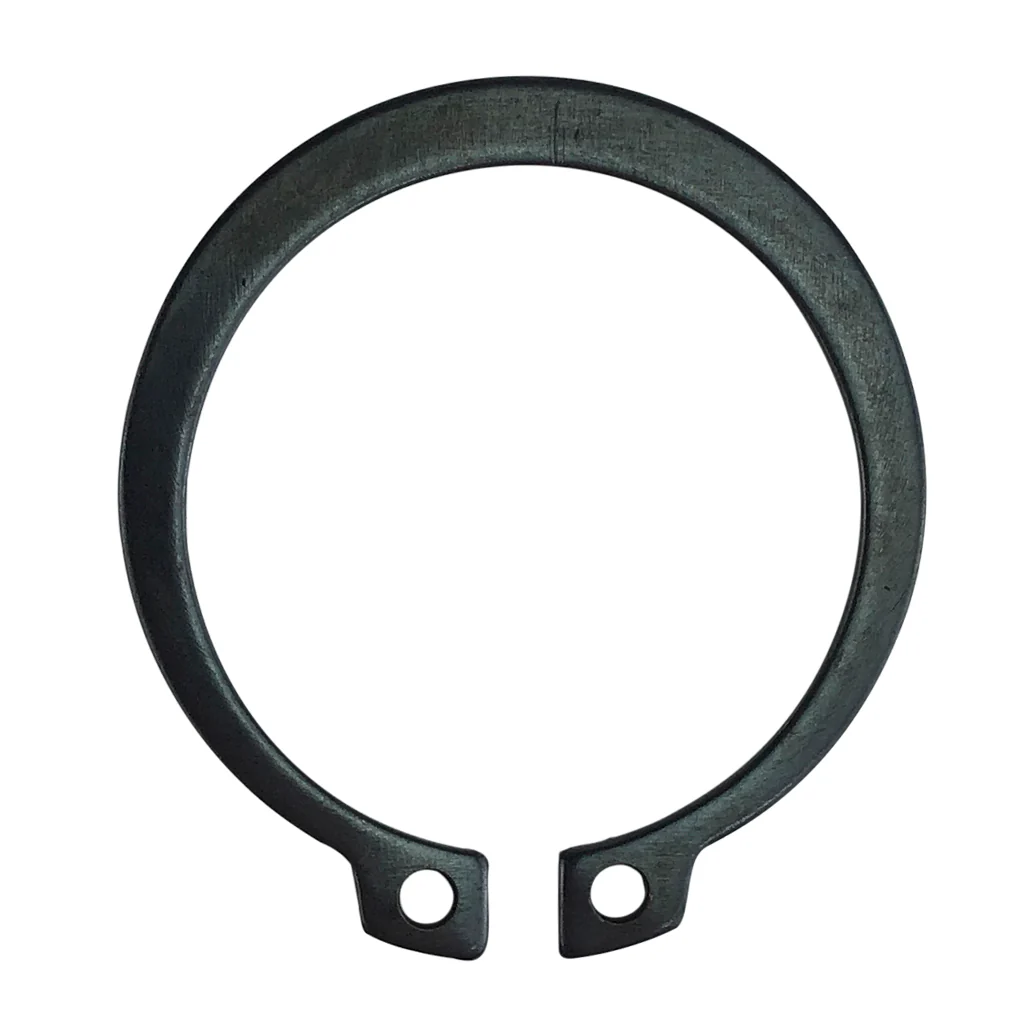

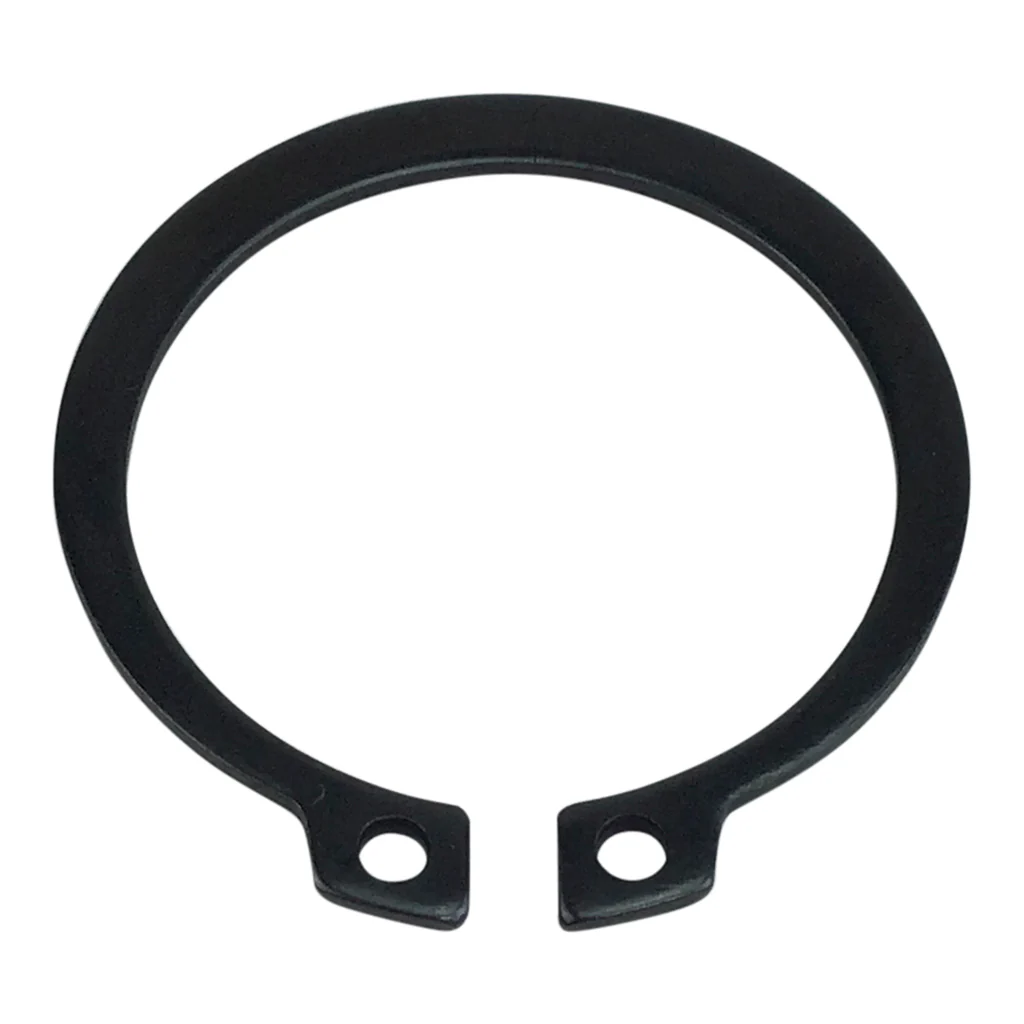

Chinese ATV Front Sprocket Retainer C-clip

For use with 12T sprockets

Most front sprockets require the use of a retainer with bolts to secure the front sprocket to the atv.  However, a few of the smaller atvs do have a 12T sprocket that use a c-clip to hold it.  Most are the 50cc-90cc atvs.

Clip details:

• External retaining ring

• ID of clip: 20.1mm (0.79 in)

• OD of clip: 23.4mm (0.9225 in)

• Works with 12T sprockets without holes
• 1042

Some atvs require the 2-bolt retainer to hold sprocket in place.
