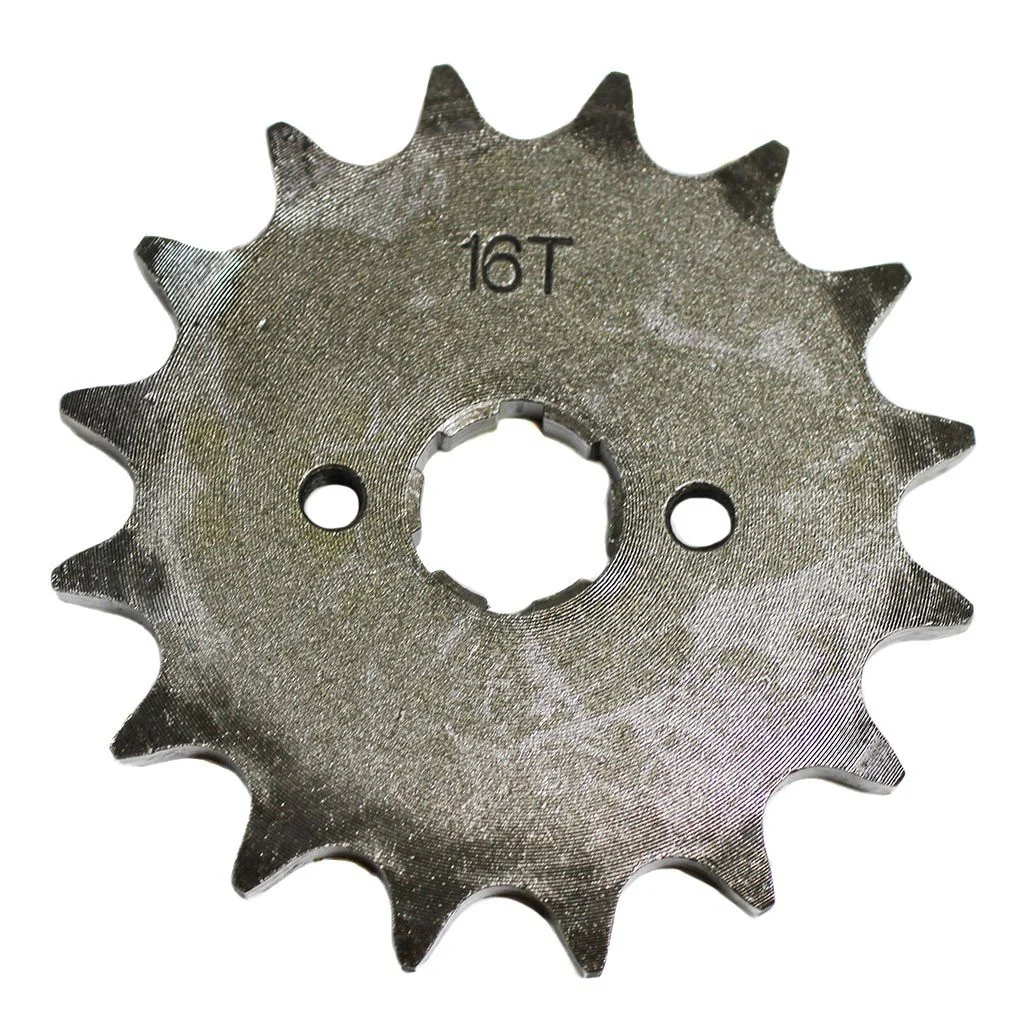

Engine Front Sprocket - 530-16T

This front sprocket is used on the Chinese CG200 and CG250 engines.  This sprocket has 16 teeth and is compatible with the 530 chain ONLY.

Sprocket details:

• #530 chain used on atvs and dirt bikes
• 16 Teeth
• OD: 86mm (3.38 in)

• 6 Splines
• ID: 20.1mm (0.79 in) valley to valley
• ID: 17.6mm (0.69 in) tooth to tooth
• Mounting holes distance: 34mm center to center
• Uses retainer with bolts (not included)

Be sure to measure your chain or current sprocket before ordering.  530 chain has 5/8 inch pitch and 0.40 inch roller diameter.  Most sprockets have the chain size and teeth count stamped into the metal.

Here is the link to the retainer with bolts:

Chinese ATV Front Sprocket Retainer with Bolts
