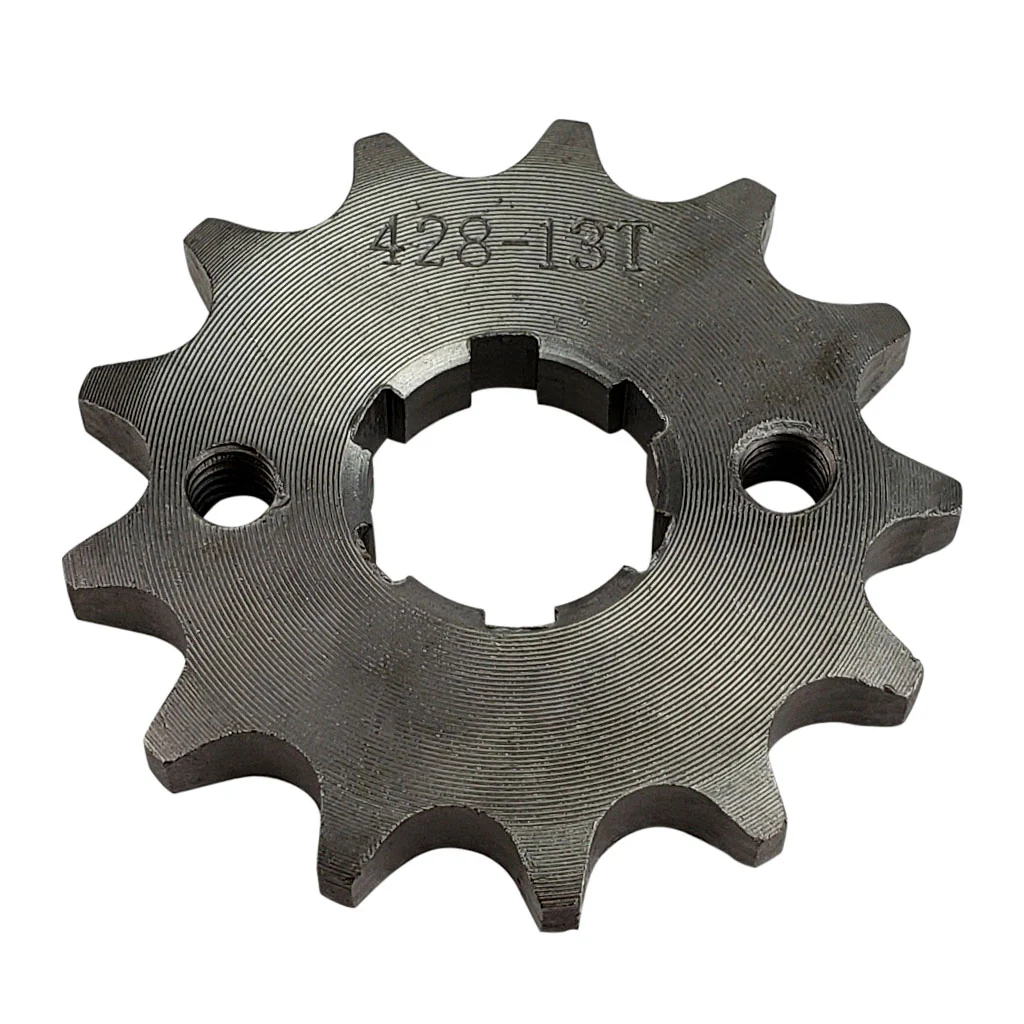

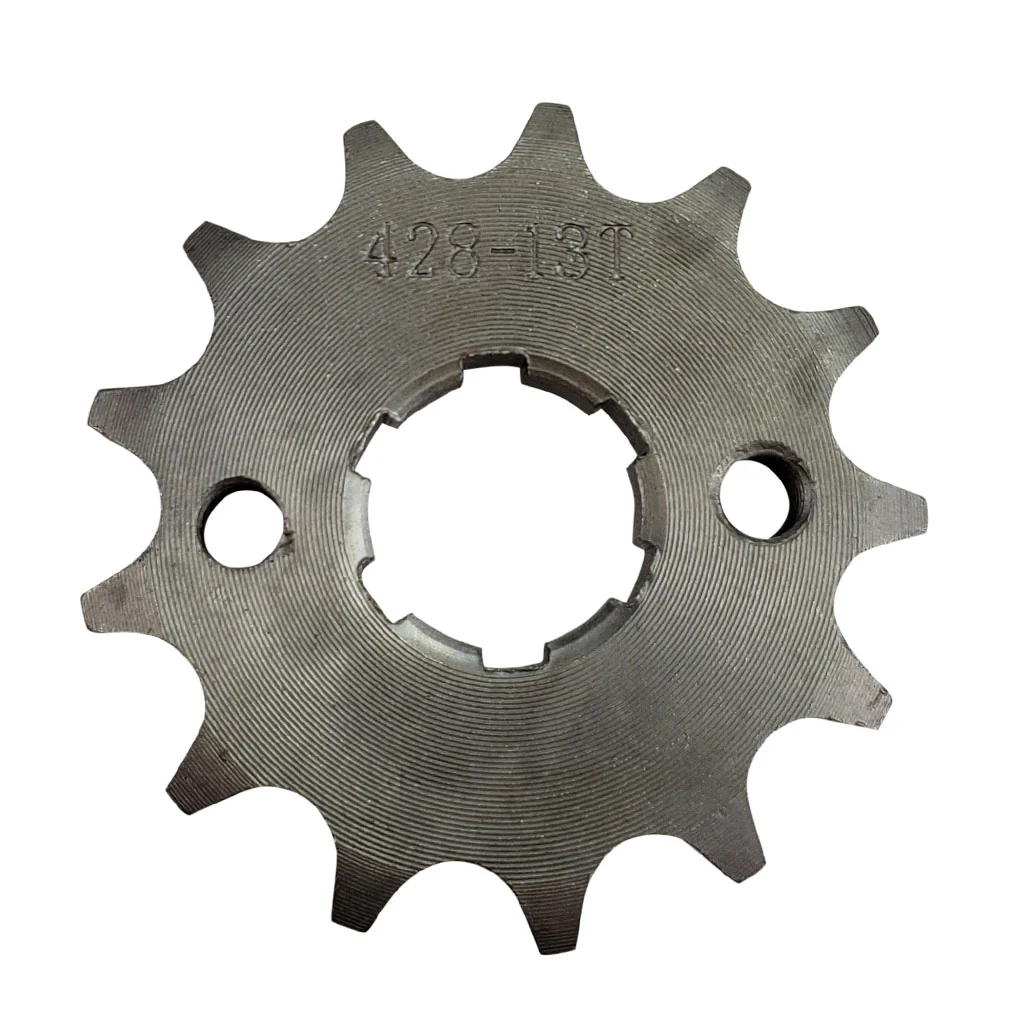

ATV Front Sprocket - 428-13T 200cc

This front sprocket is used on the Chinese 200cc engines.  This sprocket has 13T and is compatible with the 428 chain ONLY.

Sprocket details:

• #428 chain used on ATVs usually with a 7.0 inch rear wheel or smaller
• 13T
• OD: 61mm (2.4 in)

• ID: 20.1mm (0.79 in) valley to valley
• ID: 17.6mm (0.69 in) tooth to tooth
• Mounting holes distance: 34mm center to center
• Uses retainer with bolts (not included)

Be sure to measure your chain or current sprocket before ordering.  428 chain has 1/2 inch pitch and 0.335 inch roller diameter.  Most Chinese sprockets have the chain size and teeth count stamped into the metal.

Here is the link to the retainer with bolts:

Chinese ATV Front Sprocket Retainer with Bolts
