Chinese ATV Foot Rest Guard - Right - Kazuma Lacoste Panda 90cc 100cc 110cc

RIGHT side

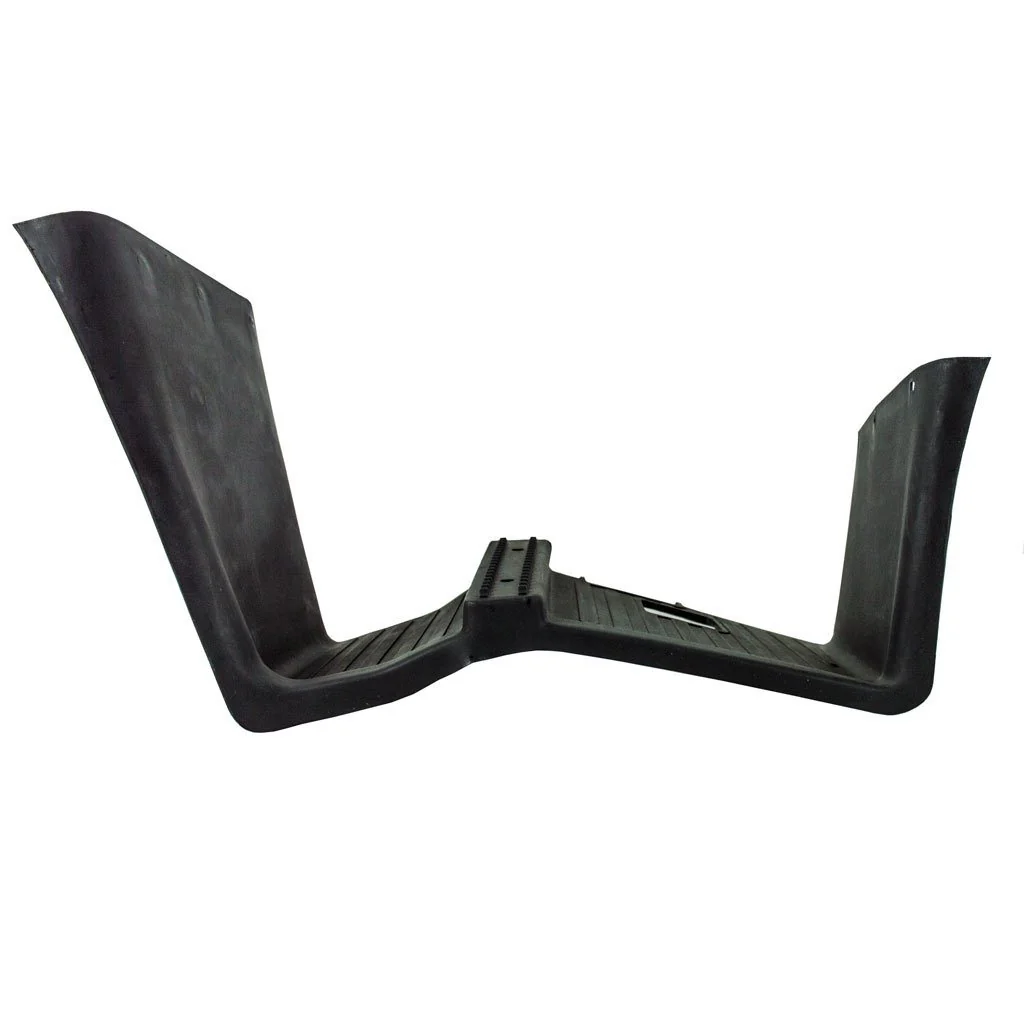

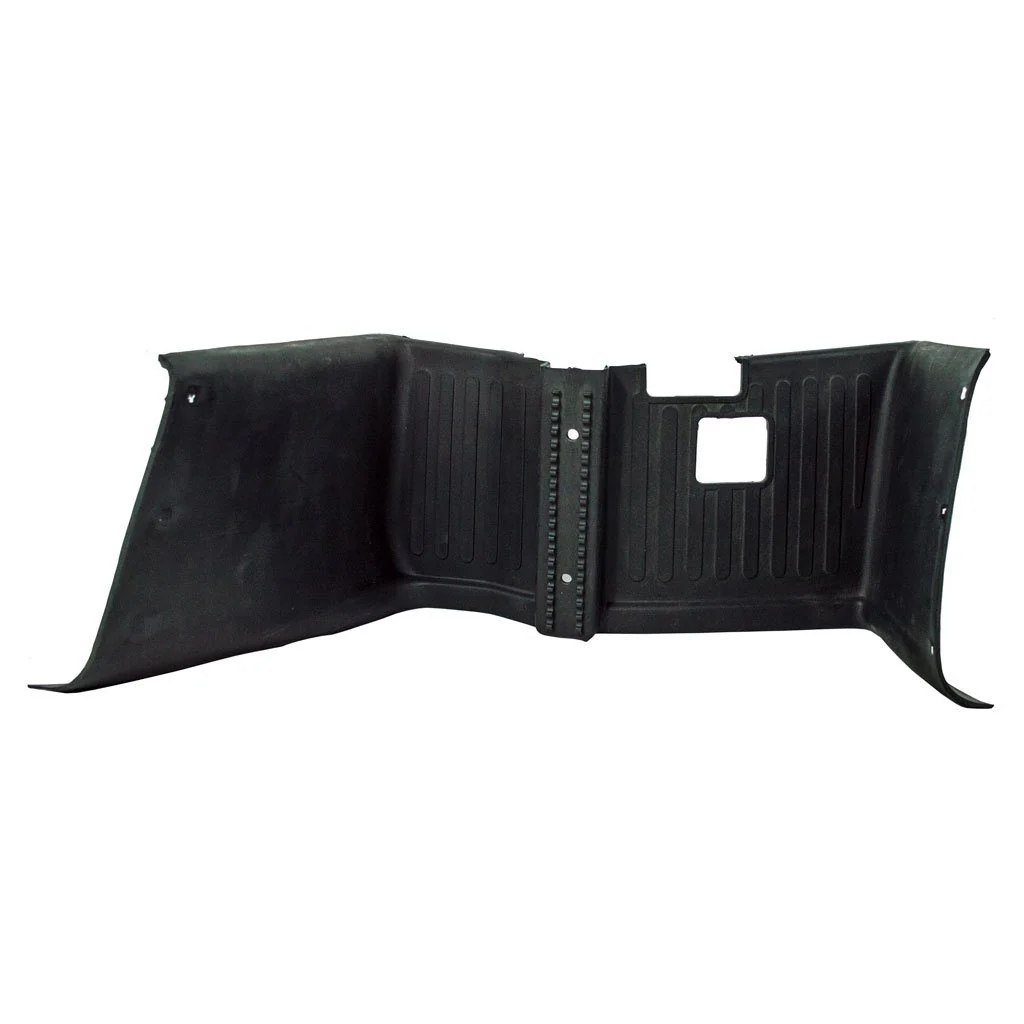

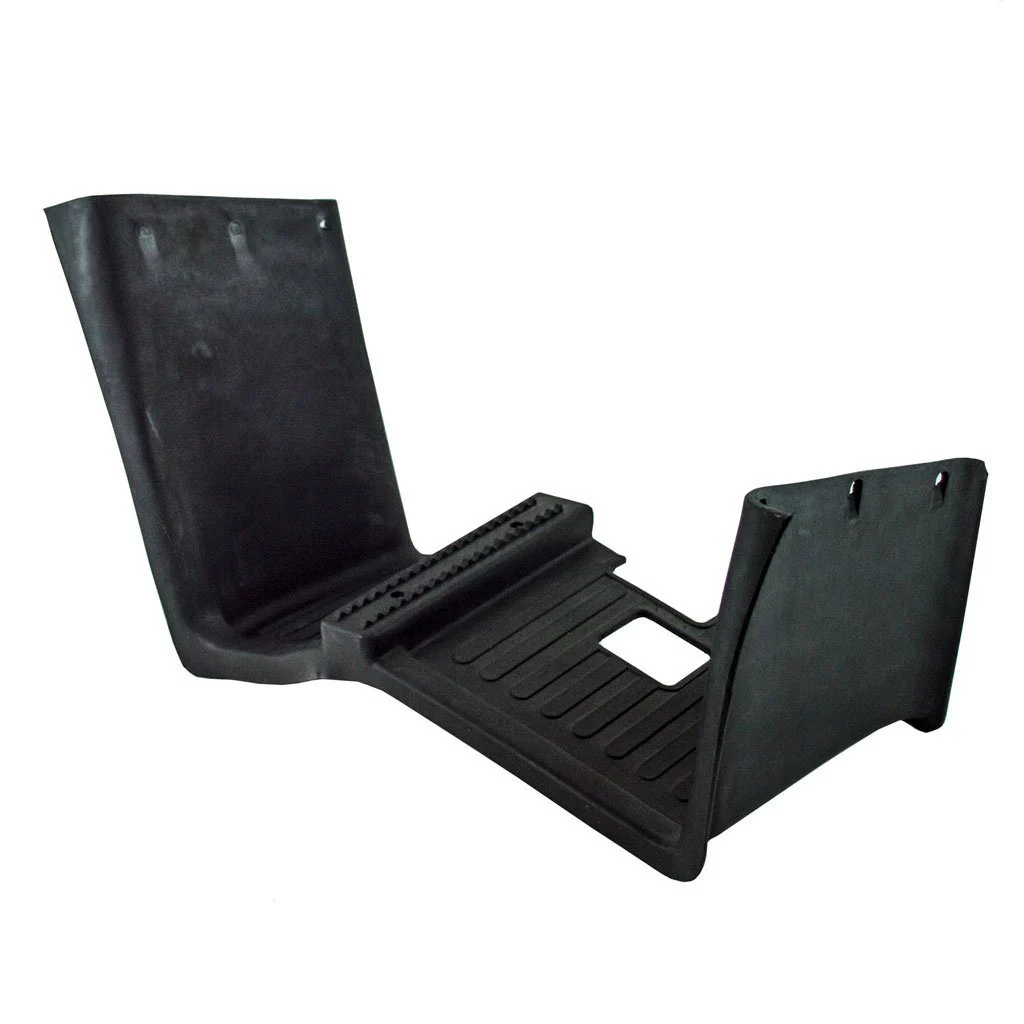

Plastic foot rest or guard for the Kazuma Lacoste and Panda 90cc, 100cc, 110cc. Does not fit Dingo 150cc or 250cc ATVs.

Foot rest details:

• Overall length:  approximately 18.0 inches at longest point
• Mounting hole measurement on front: 2 5/8 inches center to center (3 holes total)
• Mounting hole measurement on back: 2 1/4 inches center to center (3 holes total)
• Overall height of front: approximately 7.0 inches

• Overall height of back: approximately 10 1/4 inches

• 2 bottom mounting holes
• Bottom mounting hole distance: approximately 3 1/2 inches

• Overall width: approximately 7.0 inches

• Cut out for foot brake
• Right side (sitting on ATV)

 Right Side also available.
