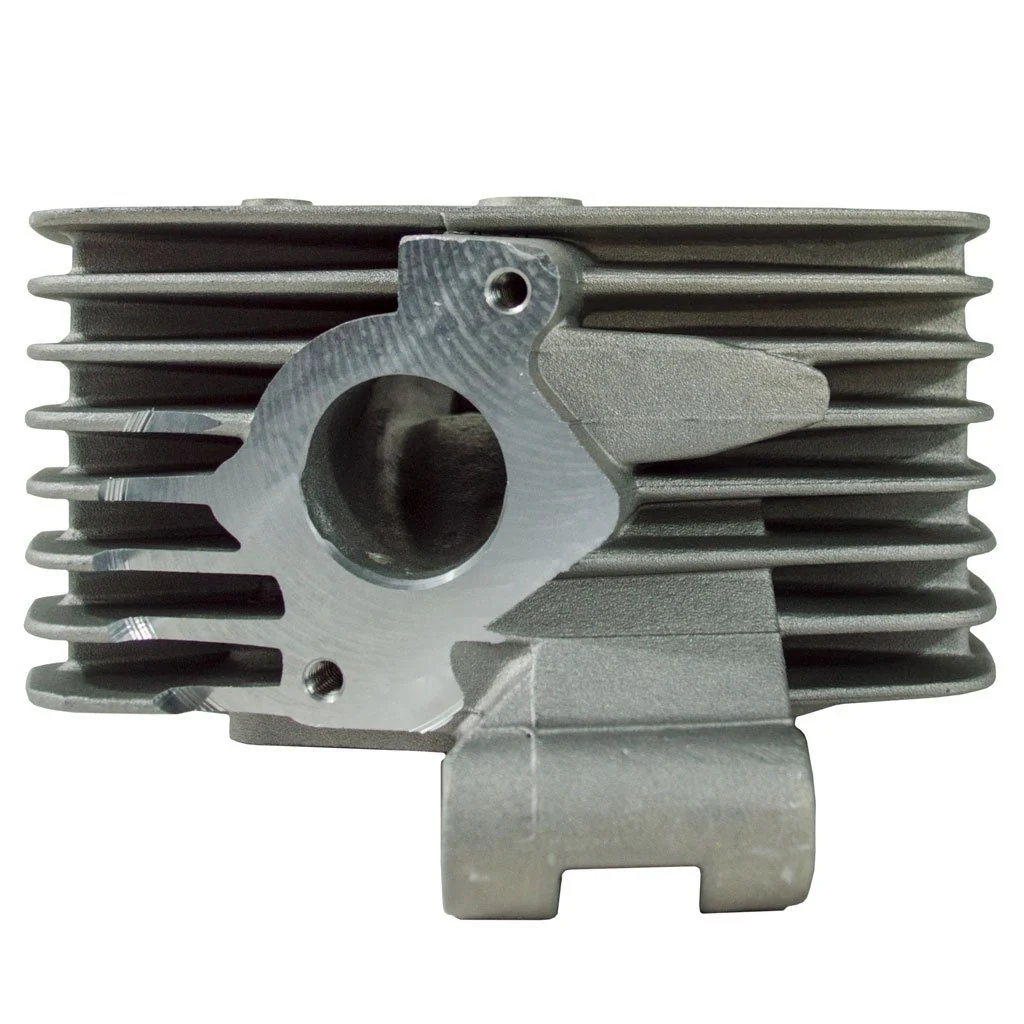

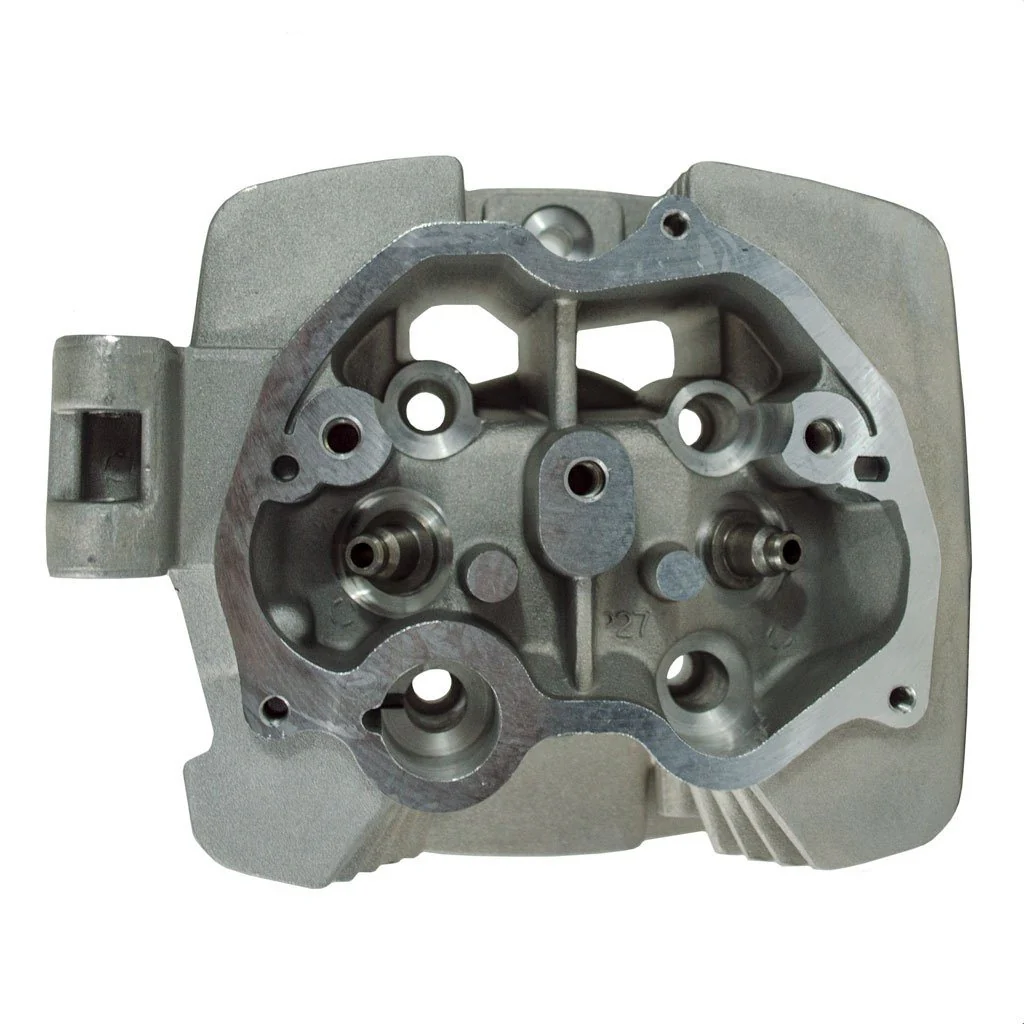

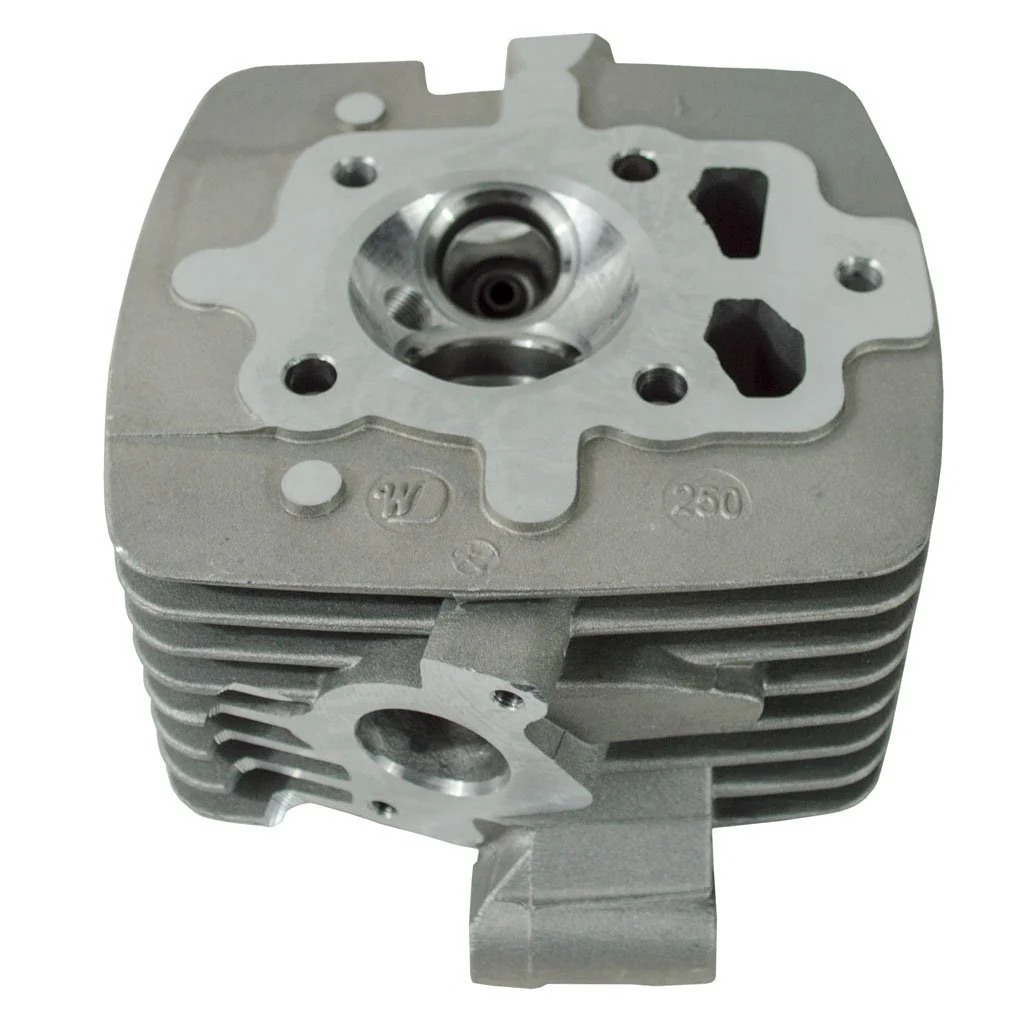

Chinese Cylinder Head for Air Cooled 200cc Tao Tao ATA250D and 250D Sport Utility ATVs.

200cc

Chinese cylinder head - does not have valves - head ONLY.

• Measurements of bottom of head center to center: (top holes) 60.5mm - (center holes) 65mm - single bottom hole
• Measurements of top of head center to center: (top holes) 132mm - (center holes) 103mm - single bottom hole
• Center hole of head: 6.5mm threaded area.
• Intake ID: 28.5mm
• Intake mounting hole distance center to center: 62mm
• Exhaust inner ID: 26.5mm
• Exhaust outer ID: 41.5mm
• Exhaust mounting hole distance center to center: 58mm
• 13065A1715
