Chinese ATV Cylinder Head - Bare

Kazuma Mammoth 800cc

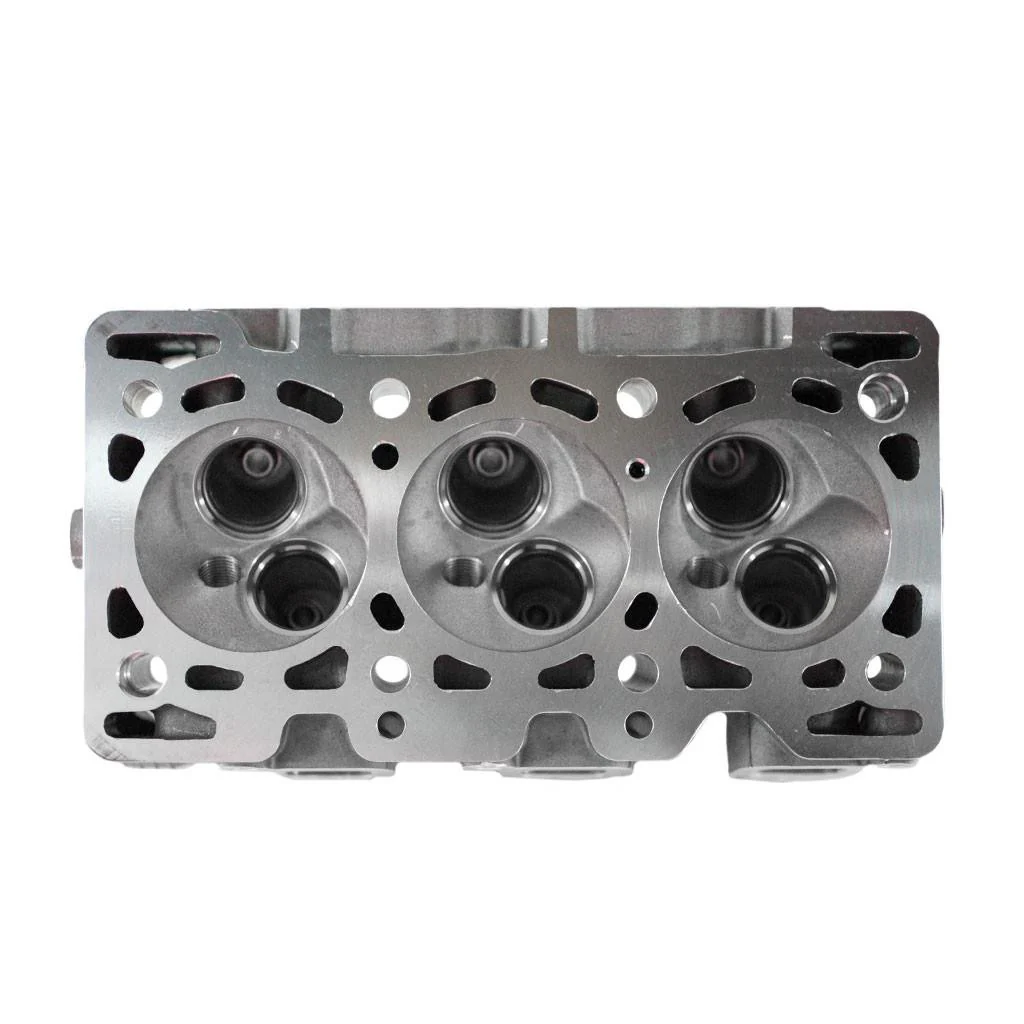

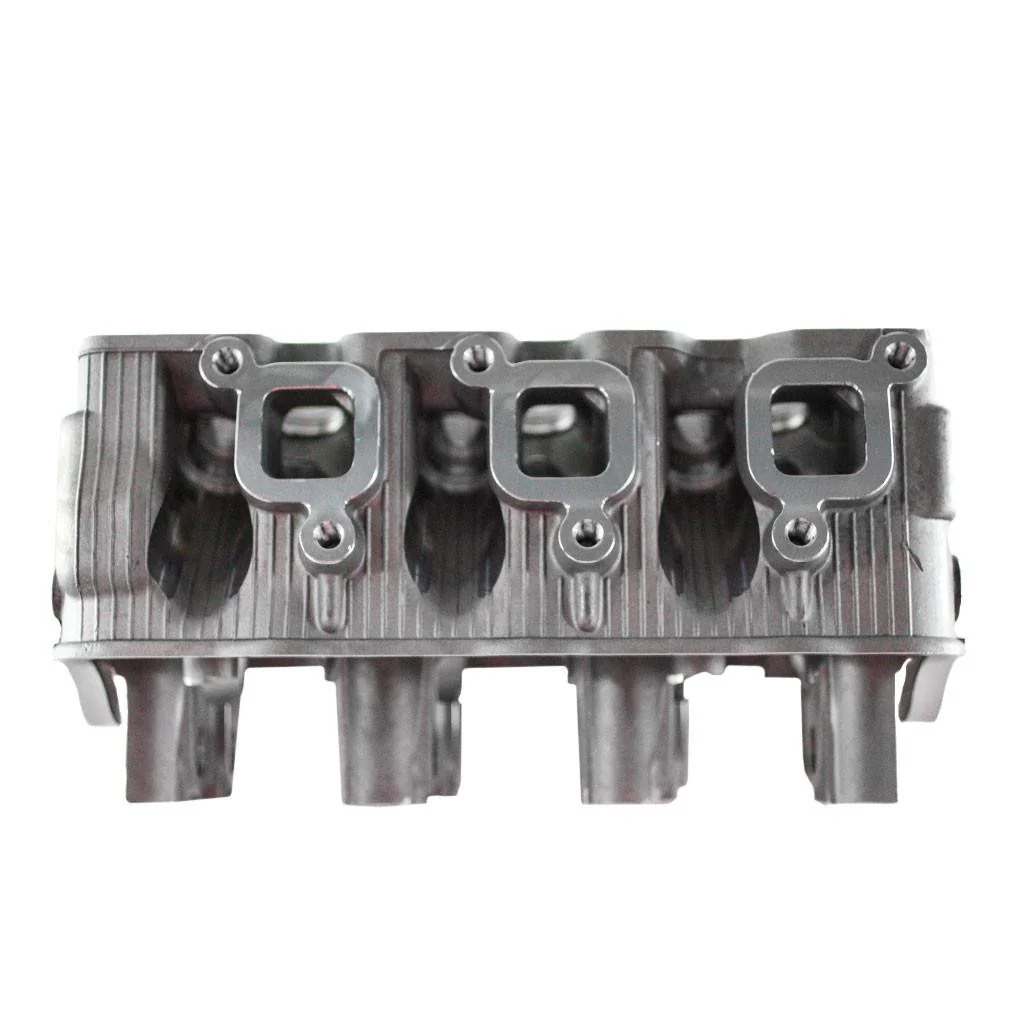

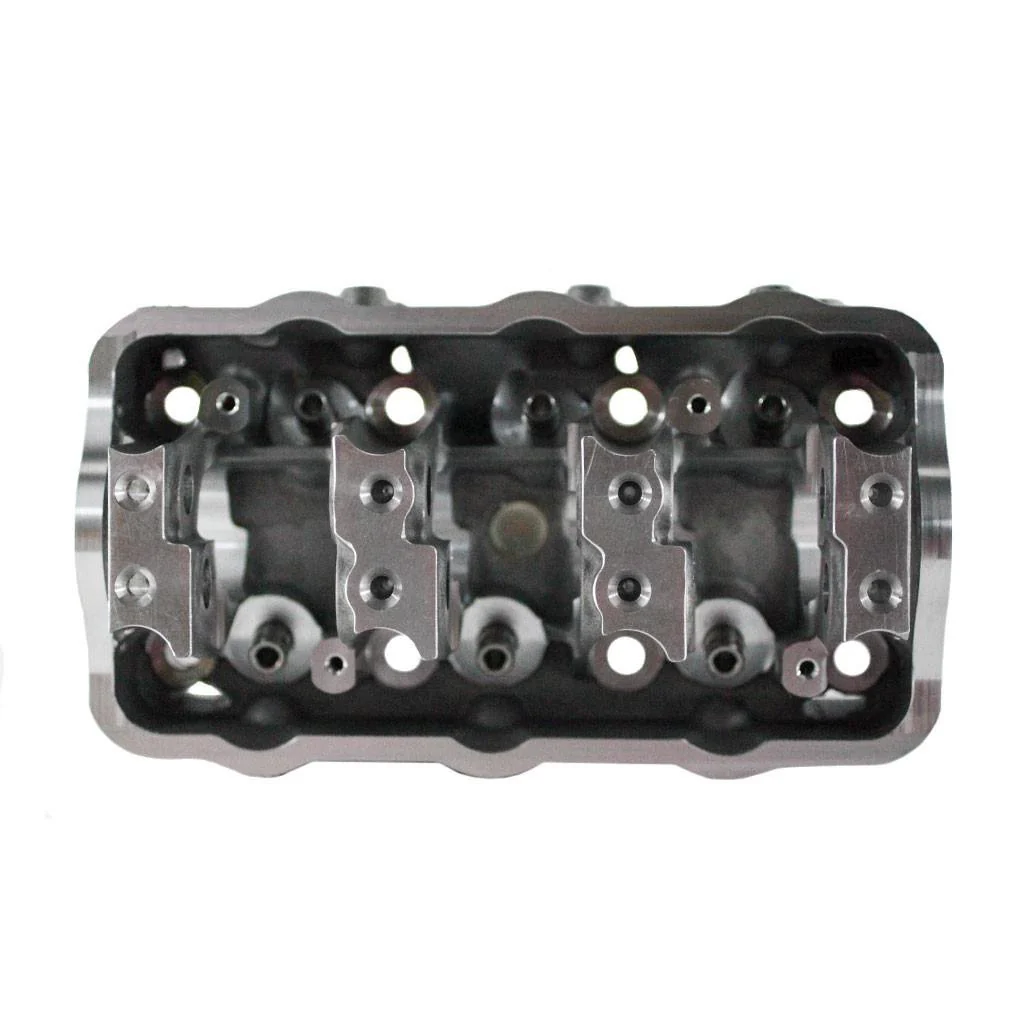

This is the bare cylinder for the Kazuma Mammoth 800cc UTV.  Check pictures and measurements to verify if this will fit your machine.

Head details:

• 3 cylinders
• Overall length: 26.5 cm
• Overall width: 16 cm
• Overall height: 14 cm
• Measurements for valves: 30mm and 33mm (valves not included)
• Mounting hole distance: 72mm measuring from valve side
• Square outlet mounting hole distance: 60mm
• Round outlet mounting hole distance: 60mm
• End hole ID: 44mm & 46.4mm on opposite end
• Mounting hole distance on 46.4mm end: 80mm
• Mounting distance on 44mm end: 75mm in a triangular pattern.

Known to fit Kazuma Mammoth 800cc 3 cylinder engines.  May fit other UTVs with 3 cylinder engines also.
