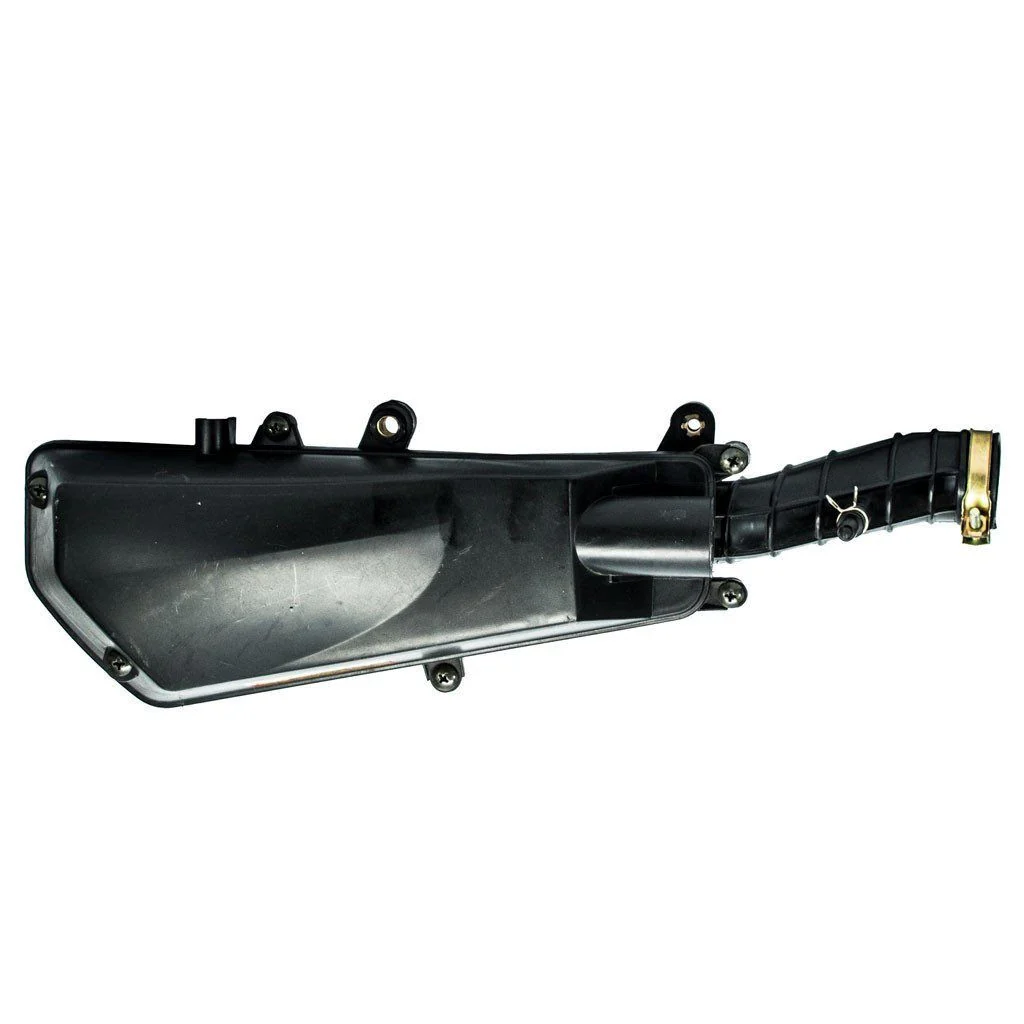

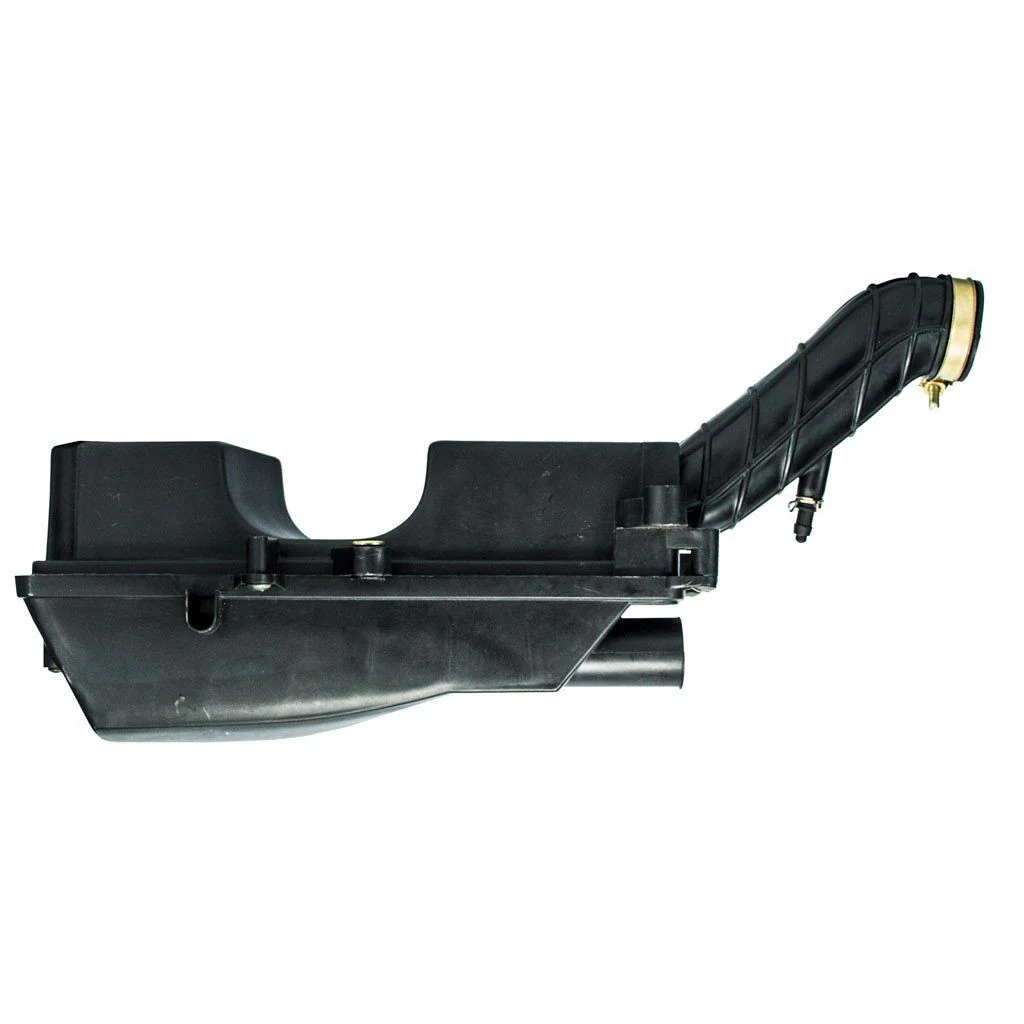

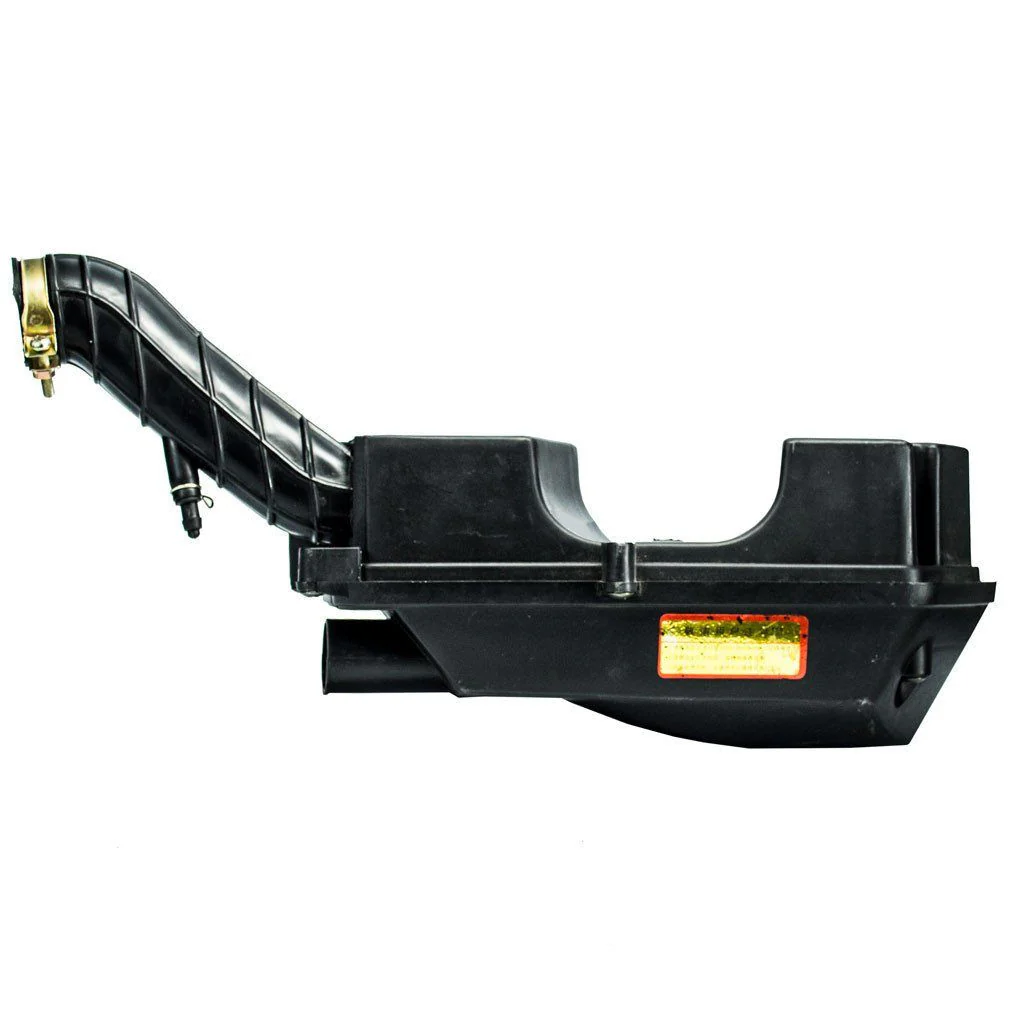

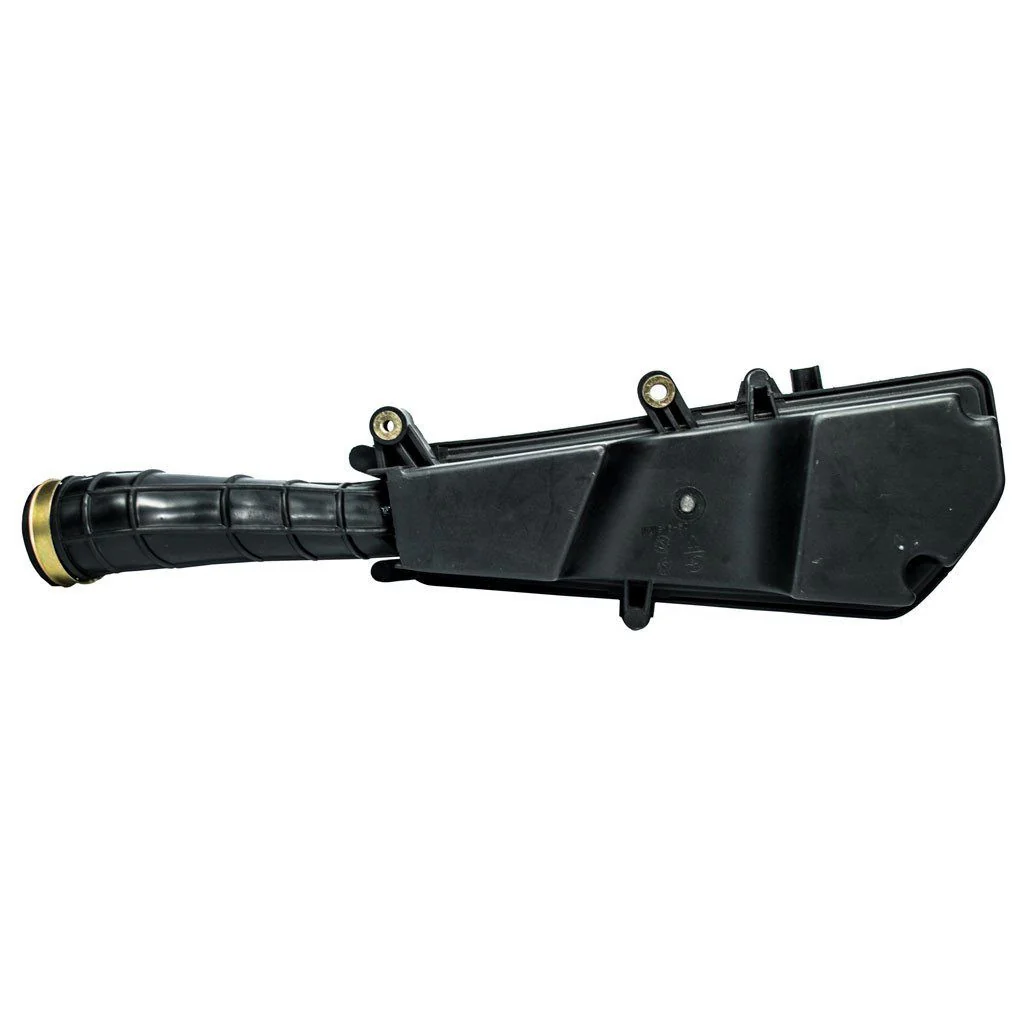

Chinese Air Filter and Housing Assembly

This air filter fits the many 50cc scooters.  Please use detail pictures and measurements to verify exact match of your part.

Air filter description:

• Length of air box: 29.2cm (11.5 in)

• Width of air box: 12.7cm (5.0 in)

• Remove 6 self tapping screws to access foam filter
• Foam filter is included
• Inside diameter of hose is approximately 36mm (1.4 in)

• Inside diameter of pipe is 27.6mm
• Outside diameter of pipe is 32mm
• Mounting hole nearest hose is threaded
• Distance between mounting holes is approximately 130mm (5.1 in)

• Bottom of the box has a U shape indent
• QMB139 139QMB
• 10261A159  50QT-15D-040401

• 106964

Fits Tao Tao ATM50A/A1 Speedy, Classic 50, CY50A VIP 50, Jet 50, New Speedy 50 and Pony 50 scooters.

We get these from a couple of different supplier in China.  Sometimes the small connection coming off the large hose is L shaped and sometimes it is straight.  We also get them in with a small L fitting on the opposite end from the large hose made into the hard plastic case.  The fitting could be capped if not needed.
