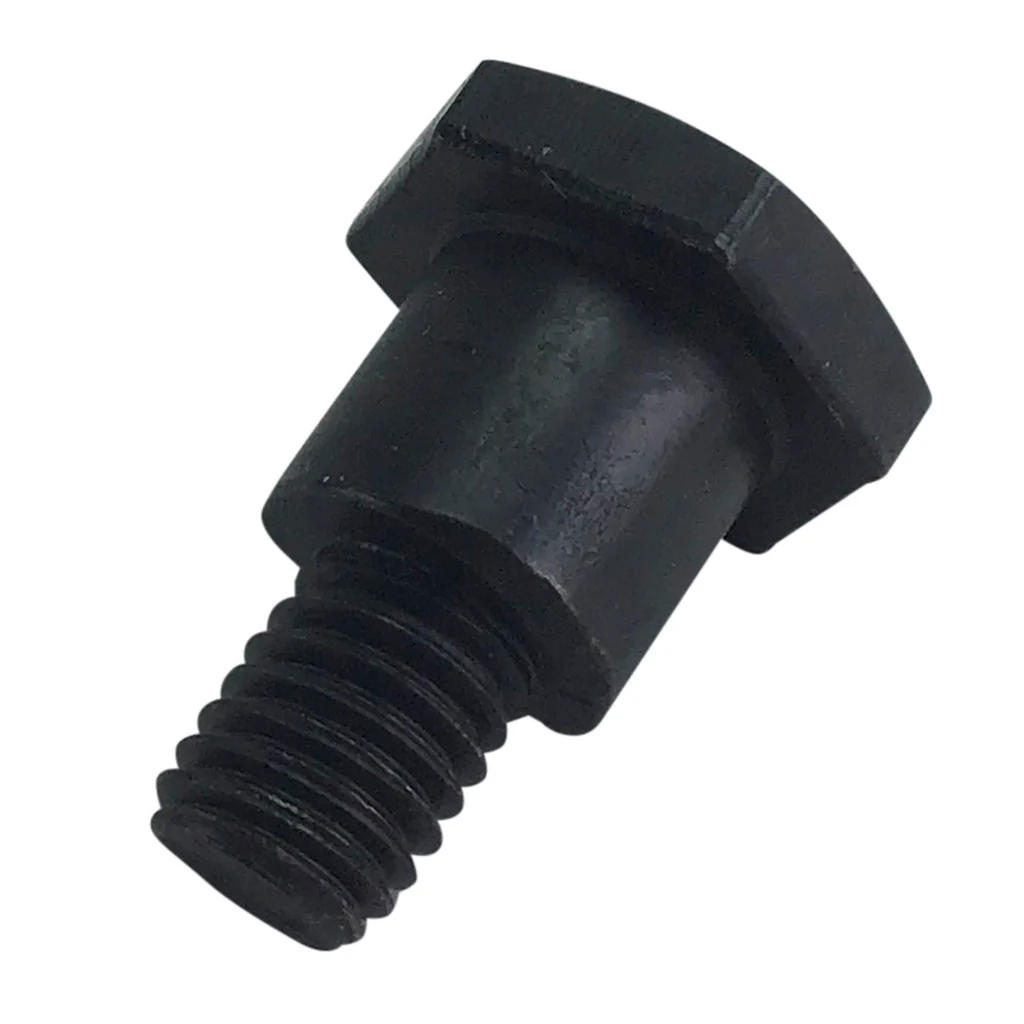

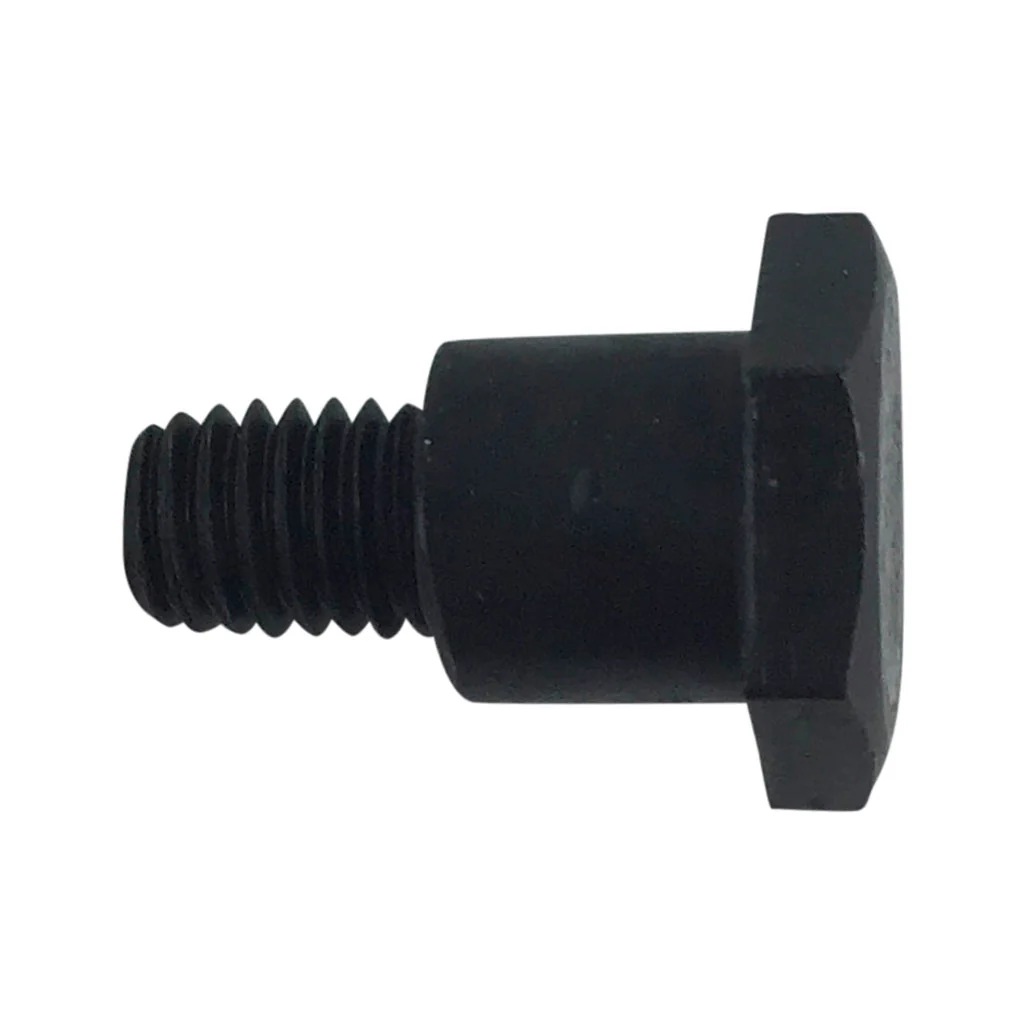

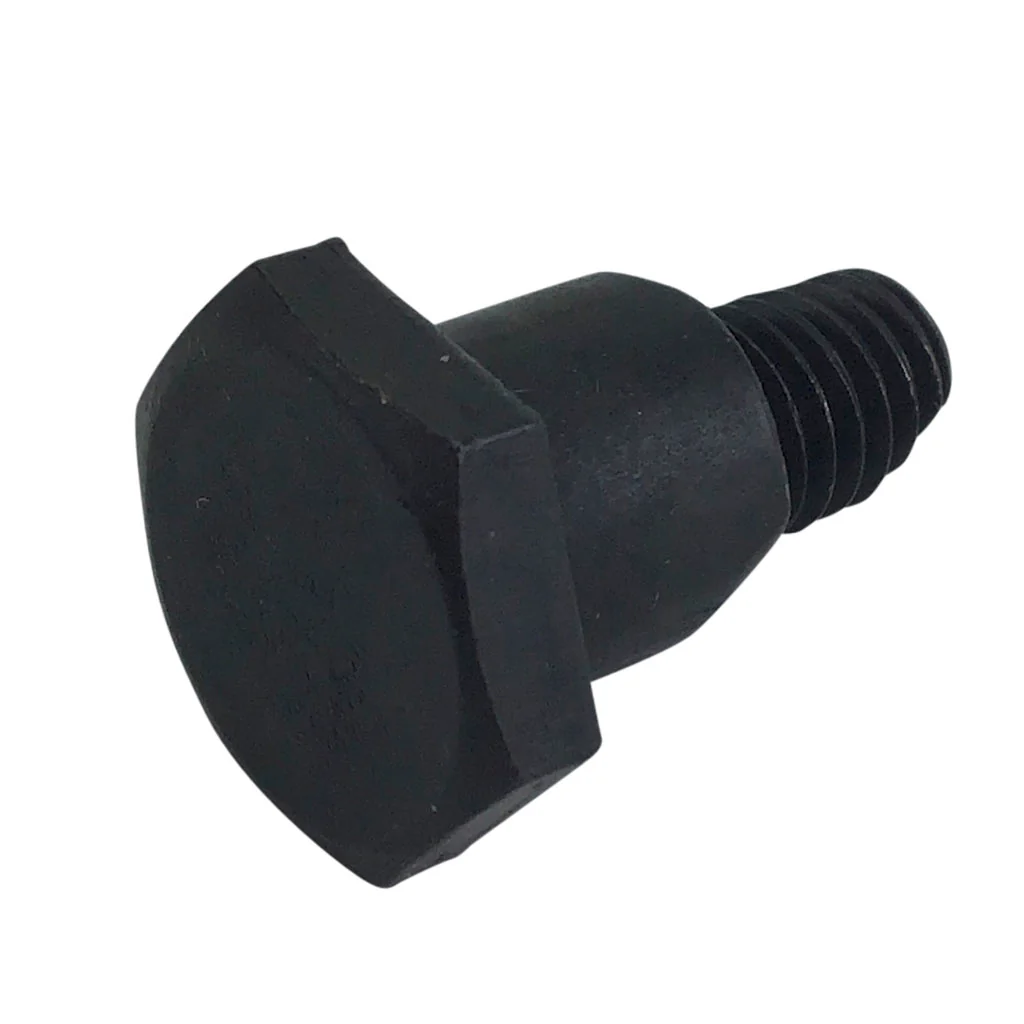

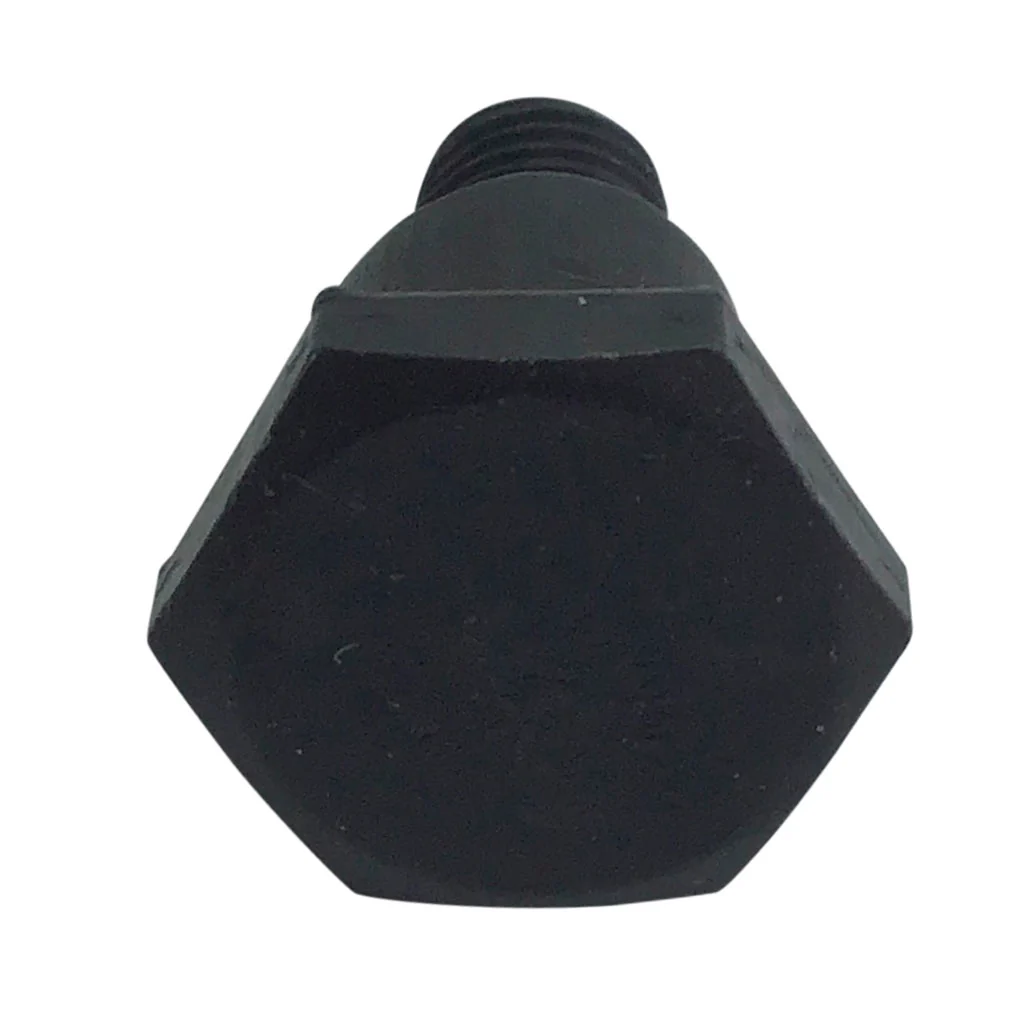

8mm*1.25*22 Hex Head Step Bolt

This step bolt is commonly used to fasten the side stand on a scooter.  Please check the size you need before ordering.

Specs:

• Threads: 8mm*1.25
• Length: 22mm (0.86 in) from back of head to end of bolt
• Thread length: 10mm (0.39 in)

• Diameter of unthreaded step: 9.7mm (0.38 in)

• Length of step: 12mm (0.47 in)

• Uses a 14mm hex socket or Allen wrench
• Side stand pivot bolt
• 50QT-11-030002  50QT-15D-030002
